CHAPTER 5: Connector locations
138

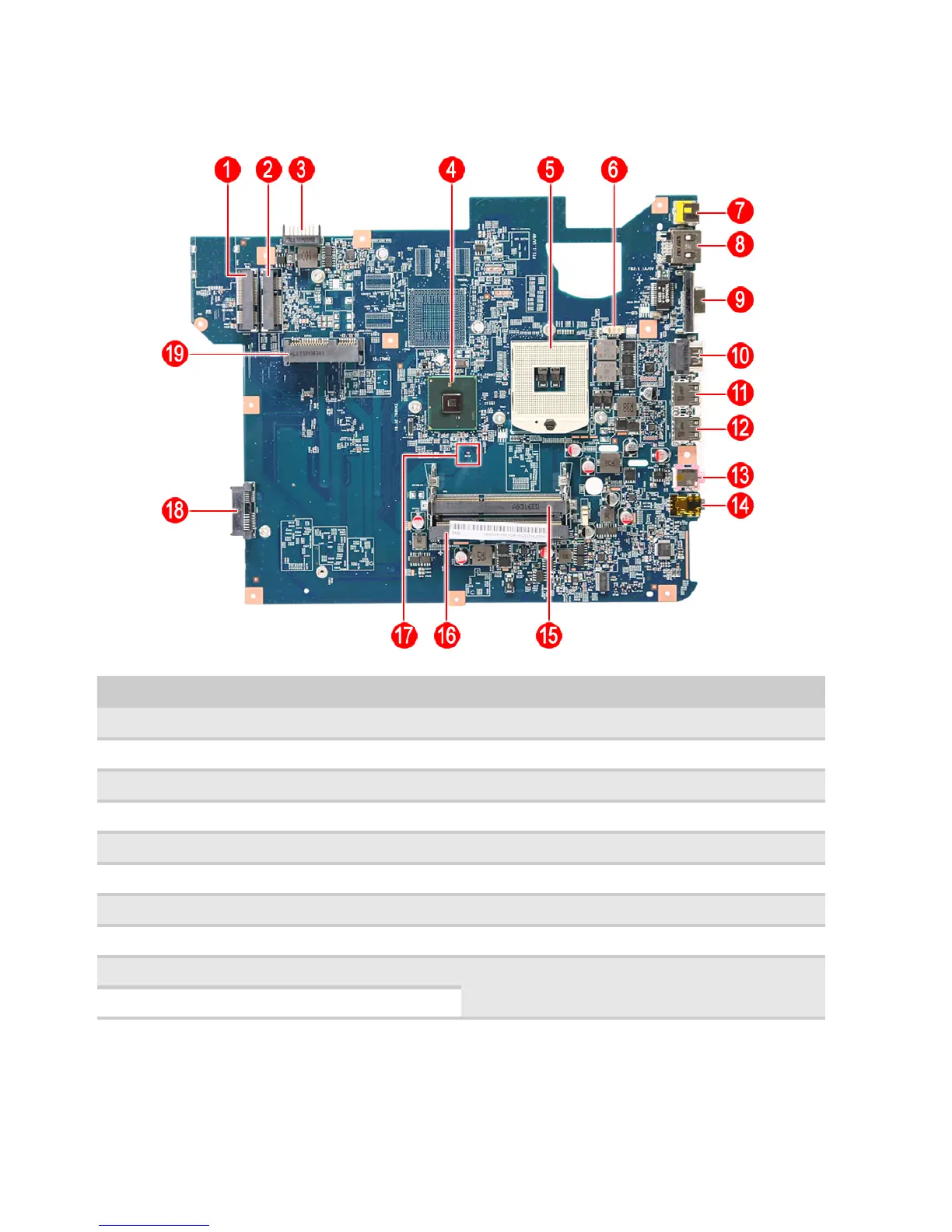

Bottom view – UMA model
Item Code Component Item Code Component
1 MINI2 3G module slot 11 USB1 USB port
2 MINI1 WLAN module slot 12 USB2 USB port
3 BAT1 Battery connector 13 MICIN1 Microphone jack
4 PCH1 Intel PCH 14 LOUT1 Headphone jack
5 CPU1 Processor socket 15 DM1 Memory slot 1
6 FAN1 Cooling fan cable connector 16 DM2 Memory slot 2
7 DCIN1 DC power jack 17 G102 Clear password hardware gap
8 RJ45 Ethernet jack 18 ODD1 SATA optical drive connector
9 CRT1 Monitor port 19 SATA1 SATA hard drive connector
10 HDMI1 HDMI out port
