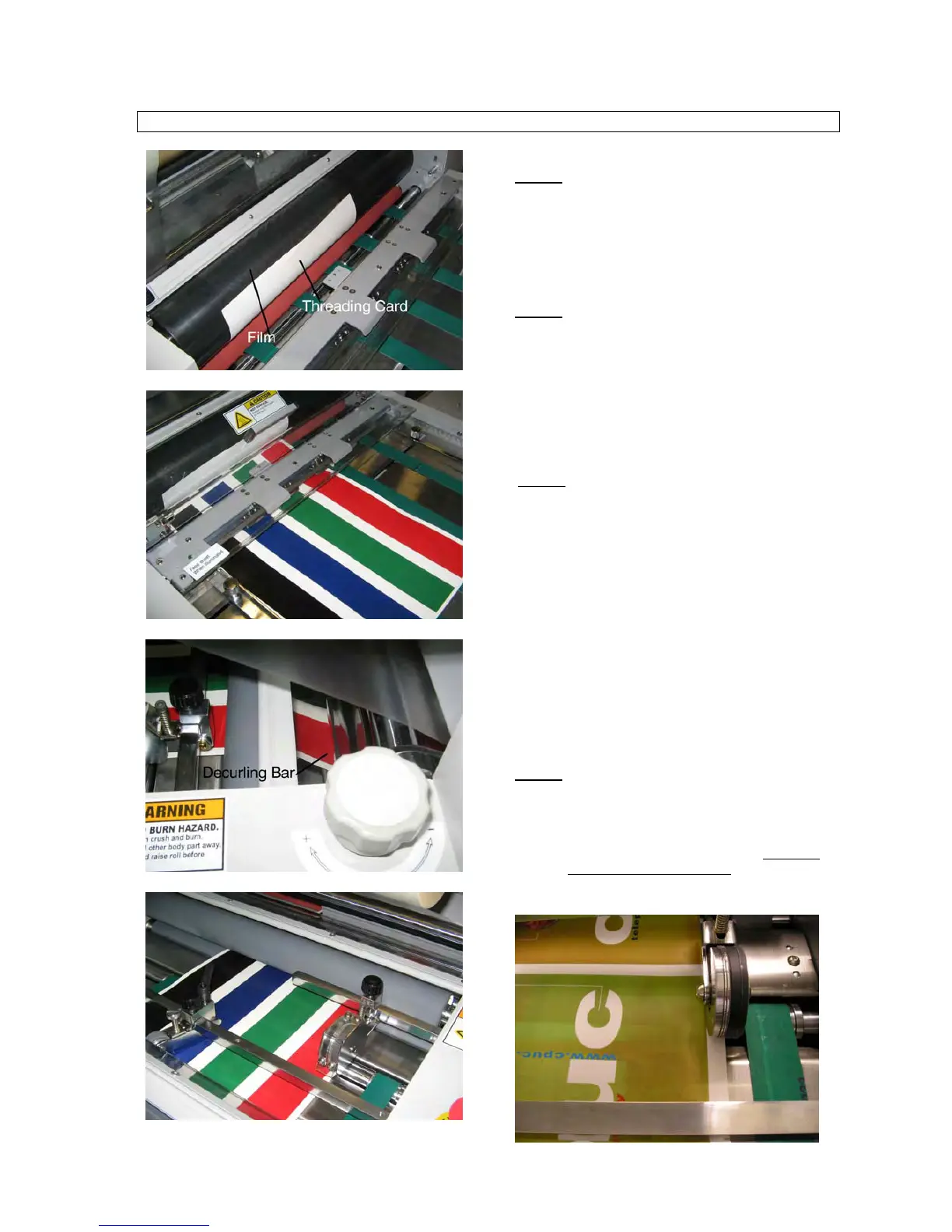

LOADING FILM & THREADING FILM
Figure5
Figure 6
Figure 7
STEP 5:
• Attach the end of the Threading Card to the
activated film. The Top Main Roller must be
hot to activate the adhesive to ensure that the
Threading Card sticks. (Figure 5).
• Replace the Safety Shield and lock in the Safety
Shield’s Safety Interlocks.
STEP 6:
• While pressing “LOADING”, push another sheet
into the nip area under the sheet you just tacked
to the film. (Figure 6).
• Continue holding down “LOADING” until the
first sheet enters the Burst Rollers while feeding
additional sheets.
• Once the first sheet exits the Burst Rollers,
release “LOADING”.
STEP 7:
• Verify that the “Threading Card” and images are
traveling over the Decurling Bar. (Figure 7).
Monitor the amount of curl of the finished
laminated images. Adjust the Decurling Bar
Knob to increase or decrease the amount of curl
desired.
• Press “START”
• When the green LED is illuminated, place
another image onto the Feed Belts and guide it
into the Feed Gate. The Feed Gate will
automatically activate according to sheet size and
open, allowing the image to be entered into the
nip.
• When the green LED is illuminated, place
another image onto the Feed Belts and guide it
into the Feed Gate.
STEP 8:
• Set the In-Line Perforator Wheel on the very
outer edge of the image but still making contact
with the film. Make any adjustments needed to
ensure the Perforator Wheel is penetrating the
film, leaving small holes in the film. Verify that
the gray wheel is off the image. (Figure 8&8A).
Figure 8A
