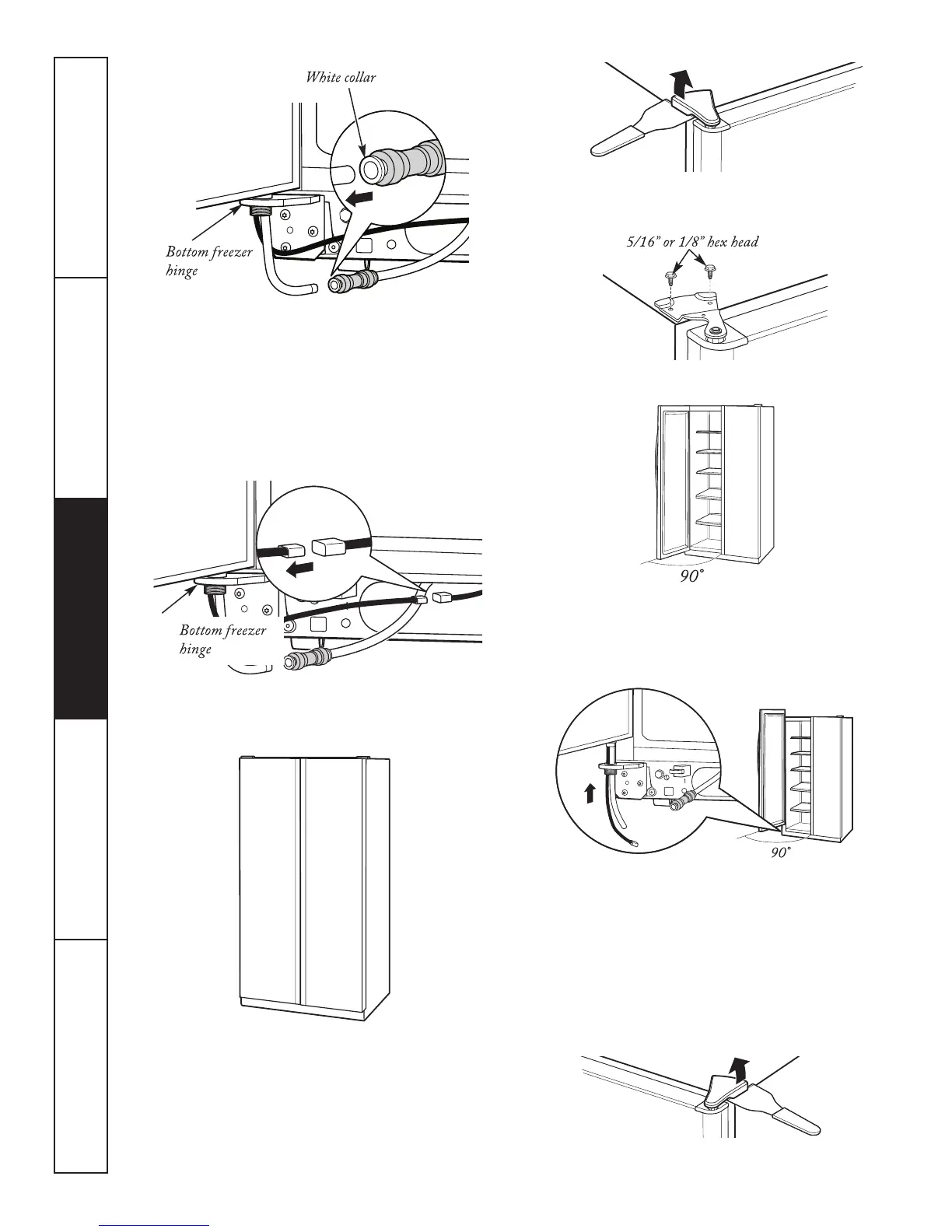

4. Disconnectthepowercoupling
(on some models)
Iftherefrigeratorhasawaterdispenser,there is a
power line (harness) from the cabinet into the bottom
hinge on the freezer door that must be disconnected.
To disconnect, pull apart at the coupling.
5. Closethefreezerandrefrigeratordoors.
6. Removethefreezerdoor.
• Remove the freezer door top hinge cover (if
equipped) by either squeezing it and pulling it up or
by prying it o with a plastic putty knife.
• Remove the two 5/16” or 1/8” hex headscrews, then
lift the hinge straight up to release the hinge pin.
• Open the freezer door to 90°.
• As one person slowly lifts the freezer door up and
o the bottom hinge, the second person should
carefully guide the waterline and power line
(harness) through the bottom hinge.
• Set the door on a non-scratching surface with the
inside up.
7. Removetherefrigeratordoor
• Remove the refrigerator door top hinge cover (if
equipped) by either squeezing it and pulling it up or
by prying it o with a plastic putty knife.
