GE Security FireShield FS302 User Manual

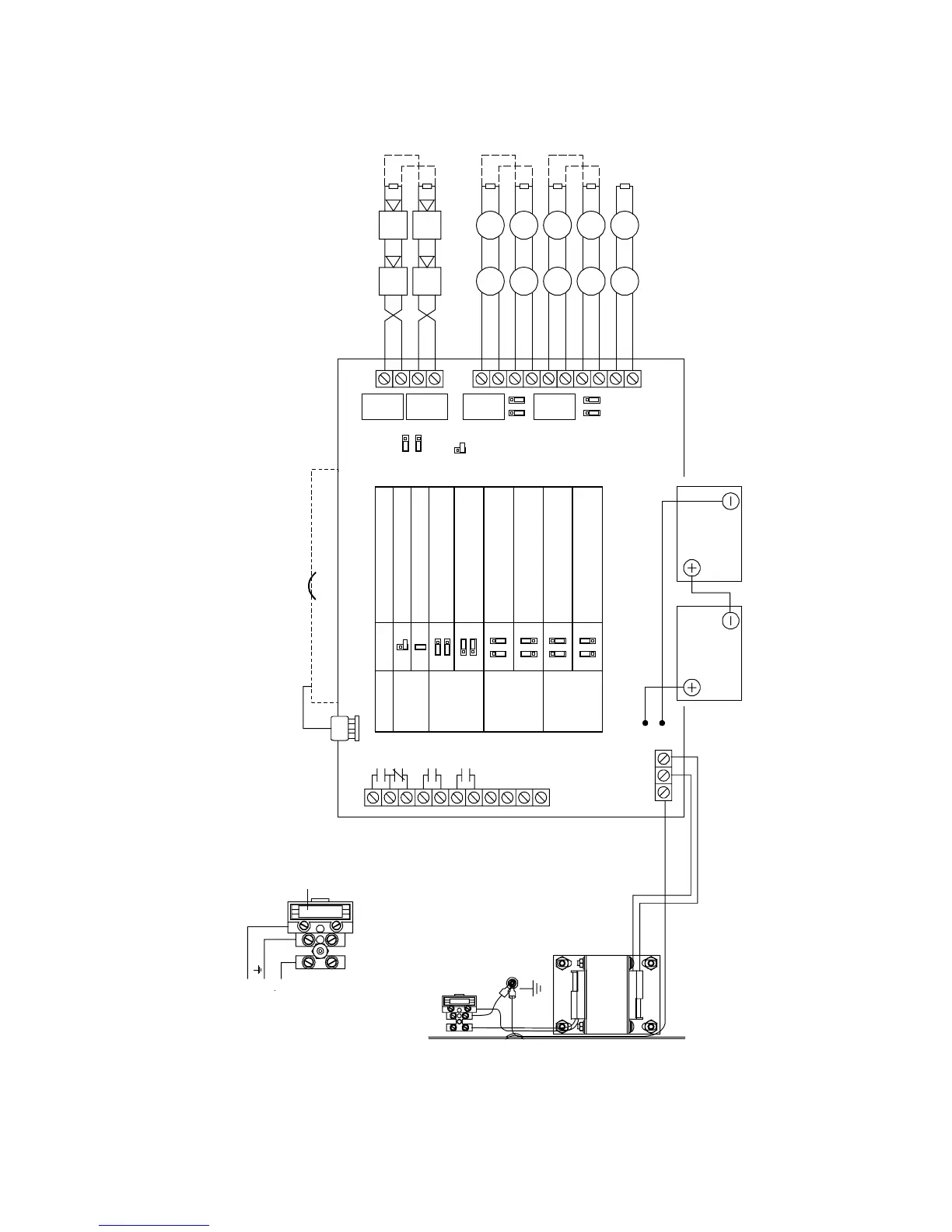

Jumper settings and wiring diagrams
FireShield Technical Reference Manual C.3
Five-zone panel
MAIN SUPPLY CIRCUIT 120 V, 60 Hz, 0.8 A or 230 V, 50/60 Hz, 0.4 A from dedicated branch supply
INITIATING DEVICE CIRCUITS
[2] [3] [9] [11]
Class B (Style B) or Class A (Style D) Operating voltage: 16.3 - 25.7 Vdc Operating current: 1.5 mA/circuit, max Circuit impedance: 13 , 0.03 F, max EOLR:
Ωµ
4.7 k , 1/2 W (P/N EOL4.7)
Ω
E1 E2
RED
BLACK
C– C+ 24VOUT– 24VOUT+
EGND
NOTIFICATION APPLIANCE CIRCUITS
[2] [3] [5 [11]
Class B (Style Y) or Class A (Style Z) Operating voltage: 24 Vfwr Operating current: 1.5 A /circuit, 2.5 A total Circuit impedance: 13 , 0.03 F, max EOLR: 4.7 k , 1/2 W (P/N EOL4.7)
Ωµ
Ω
24VAC
IN
12 Vdc
Battery
12 Vdc Battery
CAUTION:
The middle connection on the terminal block makes a
mechanical connection to the chassis even with the ground wire removed.
CAUTION:
Break the wire run at each field
device to provide proper connection supervision. Do not loop wires under terminals.
CAUTION:
The panel does not indicate
when JP6A is missing. A shorted NAC circuit may damage the equipment if NAC jumpers are missing or set incorrectly.
See
DETAIL A
+ –
+
–
NAC1– NAC2+ NAC2– NAC1+
+ –
+
–
EOLR EOLR
IDC1– IDC1+ IDC2– IDC2+ IDC3– IDC3+ IDC4– IDC4+ IDC5– IDC5+
DETAIL A
L
N
LINE
EARTH GND
NEUTRAL
JP3A & JP2A JP4A & JP5A
PRG
TB3 TB2
TB5
TB1
JP6A JP1A
PRG
Normal mode Programming mode
JP1A &JP6A
Jumper Setting Description
NAC1 and NAC2 = Class B NAC1 = Class A Out NAC2 = Class A Return IDC1 = Class A Out IDC2 = Class A Return
JP3A &JP2A
IDC1 and IDC2 = Class B IDC3 = Class A Out IDC4 = Class A Return
JP4A &JP5A
IDC3 and IDC4 = Class B
Note:
Standby batteries larger than 7 Ah must
be installed in a BC-2 battery cabinet.
5 A, 250 V, SLO-BLO (Littlefuse P/N 218005)
COMMON TROUBLE RELAY
[10]
1 A @ 30 Vdc, resistive
Nonsupervised
COMMON SUPERVISORY RELAY
[10]
1 A @ 30 Vdc, resistive
Nonsupervised
COMMON ALARM RELAY
[10]
1 A @ 30 Vdc, resistive
Nonsupervised
REMOTE MODULE
COMMUNICATION BUS
13 , 0.03 F, max
Ωµ
AUXILIARY/SMOKE
POWER OUTPUT
24 Vdc,nominal @ 500 mA
+ –
+
+ –
+ –
+ –
+ –
+ –
+ –
+ –
+ –
–
WARNING:
Never replace fuse while circuit is energized.
Replacement fuse must be of equivalent size and type.
RECHARGEABLE BATTERY CIRCUIT Voltage: 24 Vdc Amp-hour capacity: 18 Ah maximum sealed lead acid batteries only
DACT/Dialer (optional)
J2
JP1 wire loop [12]
DACT connector
