3 SETUP AND USE
g
GE Power Management
43

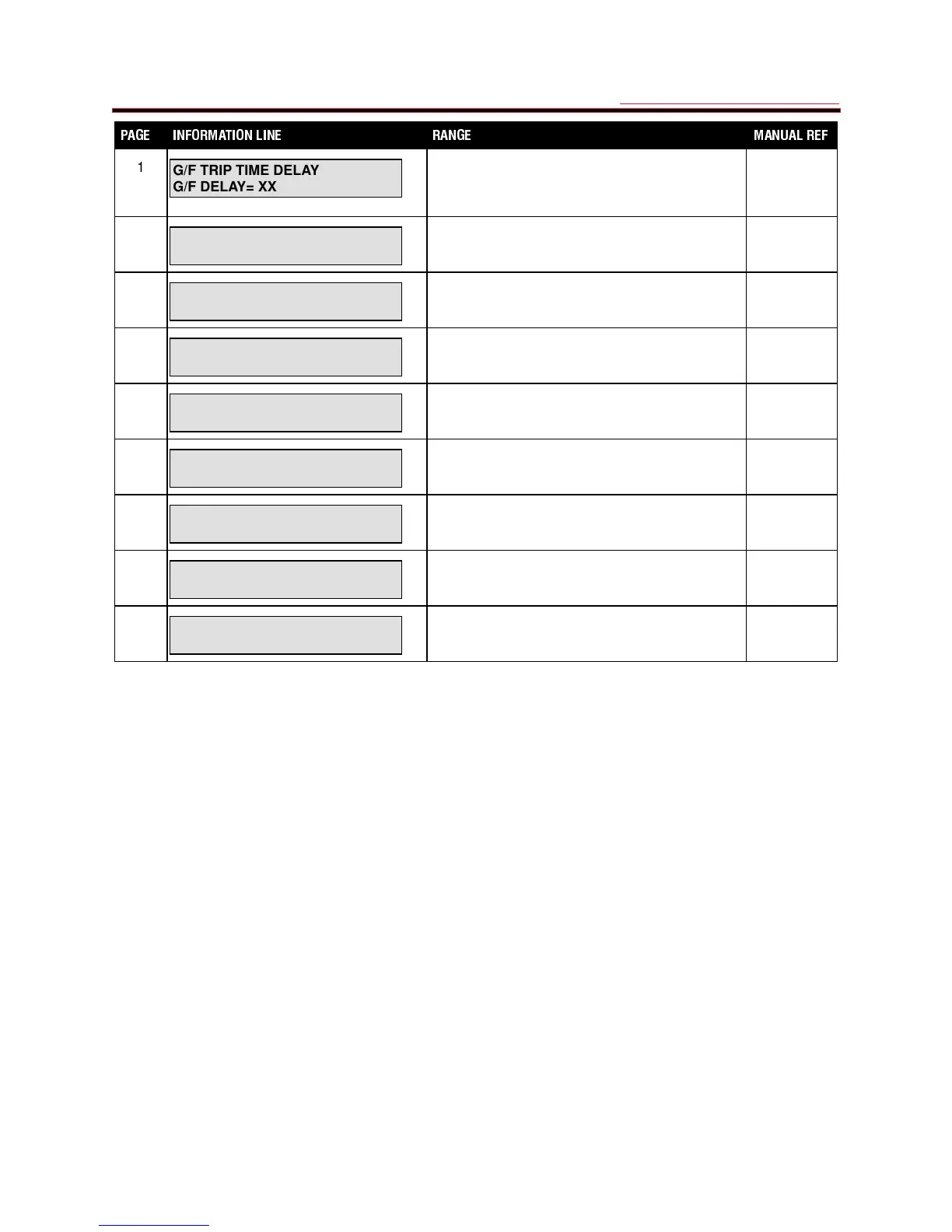

3$*( ,1)250$7,21 /,1( 5$1*( 0$18$/ 5()
1
G/F TRIP TIME DELAY
G/F DELAY= XX.X SECONDS
0.0 (Instantaneous) – 20.0 seconds (increments
of 0.5). Additional time delay of 0.25 seconds
following 20.0.
3.11
1
UNDERCURRENT ALARM LEVEL
U/C ALARM= XXXX AMPS
1-1000 amps or OFF (increments of 1) 3.12
1
UNDERCURRENT TIME DELAY
U/C DELAY= XXX SECONDS
1-255 seconds (increments of 1) 3.12
1
RAPID TRIP / MECH. JAM
TRIP LEVEL= X.X X FLC
1.5xFLC-4.5xFLC or OFF (steps of 0.5xFLC) 3.13
1
RAPID TRIP TIME DELAY
DELAY= XXX.X SECONDS
0.5-125.0 seconds (increments of 0.5) 3.13
1
SHORT CIRCUIT TRIP LEVEL
S/C TRIP= XX X FLC
4xFLC-12xFLC or OFF (increments of 1xFLC) 3.14
1
SHORT CIRCUIT TIME DELAY
S/C DELAY= XX.X SECONDS
Instantaneous or 0.5-20.5 sec. (steps of 0.5) 3.14
1
IMMEDIATE OVERLOAD
LEVEL = X.XX X FLC
1.01xFLC-1.50xFLC or OFF (steps of 0.01xFLC) 3.15
1
END OF PAGE ONE
SETPOINT VALUES
