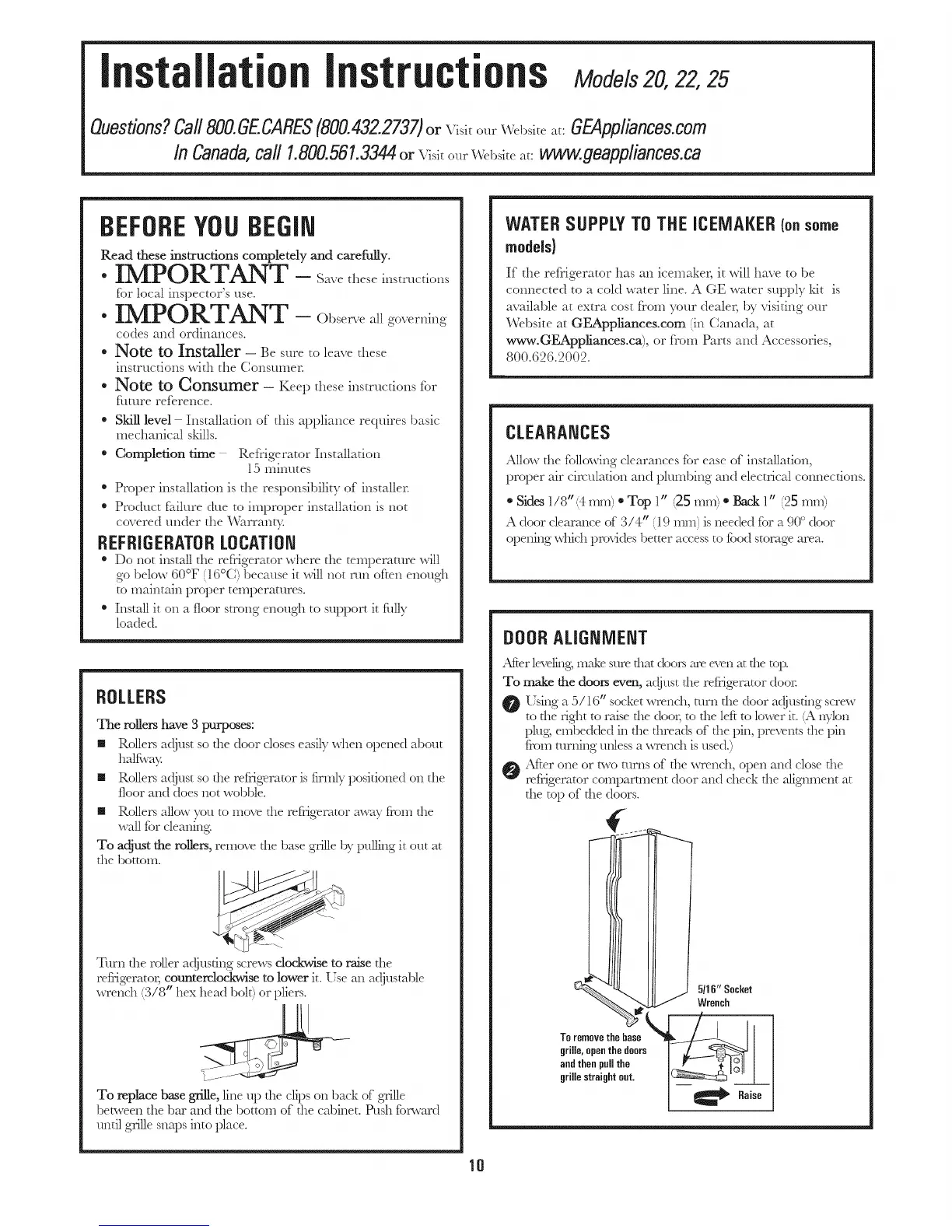

II
II ructions
Models20,22,25
Questions?Call800.GE.CARES(800.432.2737)orvisitourW_bsiteat:GEAppliances.com
In Canada,ca# 1.800.561.3344or visitourW_bsiteat:ww_.geappliances.ca
BEFOREYOUBEGIN
Read these instructions completely and carefully.
"IMPORTANT - Savetheseinstructions
for local inspector's use.
. IMPORTANT - Observe all governing
codes and ordinances.
, Note to Installer - Be sure to leave these
instructions with the Consumer.
. Note to Consumer - Keepthese instructions for
future reference.
* Skill level Installation of this appliance requires basic
mechanical skills.
* Completion time Refrigerator h>tallation
15 minutes
* Proper installation is the responsibility of installer.
* Product failure due to improper installation is not
covered under the lVarran_ _.
REFRIGERATORLOCATION
* Do not install the refrigerator where the temperature will
go below 60°F (16°(:) because it will not run often enough
to maintain proper temperatures.
* Install it on a floor strong enough to support it fully
loaded.
ROLLERS
The milers have 3 purposes:
[] Rollers adjust so the door doses easily when opened about
halfwa?:
[] Rollers adjust so the refrigerator is firmly positioned on the
floor and does not wobble.
[] Rollers allow you to move the refrigerator away from the
wall tbr cleaning
To adjust the milers, remove the base grille by pulling it out at
the bottom.
Turn the roller adjusting screwsclockaviseto raise the
refrigerate1; counterclockwise to lower it. Use an adjustable
_sTench(3/8" hex head bolt_jor pliers.
To replace base grille, line up the dips on back of grille
between the bar and the bottom of the cabinet. Push fi_rward
until grille snq)s into place.
WATERSUPPLYTO THE iCEIVlARER{onsome
models)
If the refrigerator has an iceinaker, it will have to be
connected to a cold water line. AGE water supply kit is
available at extra cost from your dealer, by visiting our
Wcbsite at GEAppliances.com (in Canada, at
www.GEAppliances.ca), or from Parts and Accessories,
800.626.2002.
CLEARANCES
Allow the following clearances tbr ease of installation,
proper air circulation and plumbing and electrical connections.
* Sides 1/8" i!4nnn) * Top 1" (25 ram) * Back 1" (25 ram)
A door clearance of 3/4" (19 rain) is needed tbr a 90 ° door
opening whirl] provides better access to tbod storage area.
DOORALJGNVlENT
_Micrleveling,make sure that doors m-eeven at the top.
To make the doors even, _uljustthe refrigerator door.
Using a 5/16" socl<ct_xTend_,turn the door adjusting screw
to d_eright m raise dm door, to the left to lower it. ;A nylon
plug, embedded in the threads of the pin, prevents the pin
from turning ufftessa _Tend_ is used.)
_M'terone or two turns of the _sTench,open and close the
refrigerator compartment door and cl_eckthe alig_mmntat
the top of the doors.
5116" Socket
Wrench
To removethe hose
grille, open the doors
and then pull the
grille straight aut.
10
