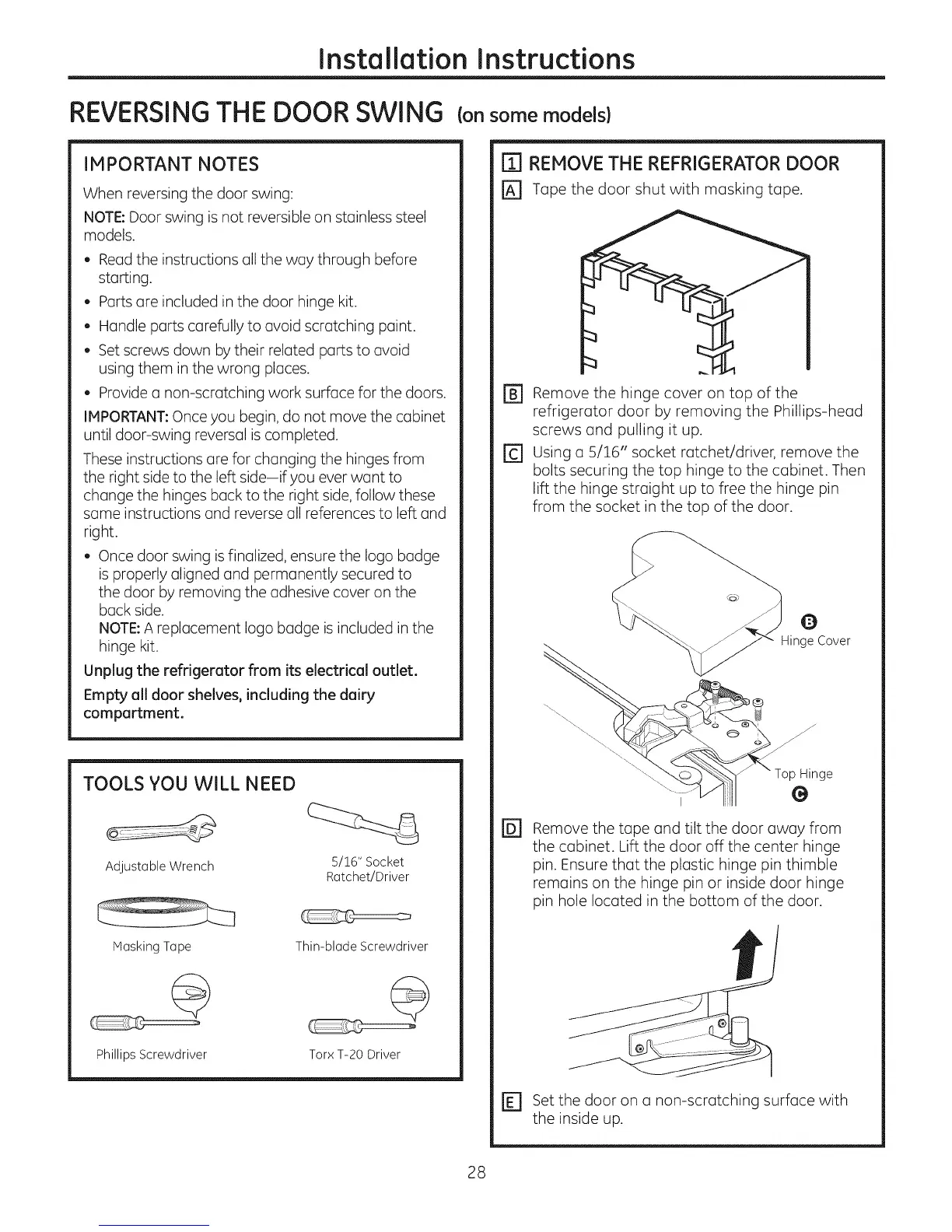

Installation Instructions
REVERSING THE DOOR SWING Ionsomemodelsl
IMPORTANT NOTES
When reversing the door swing:
NOTE: Door swing is not reversible on stainless steel
models.
, Read the instructions all the way through before
sta rti ng.
, Parts are included in the door hinge kit.
, Handle parts carefully to avoid scratching paint.
, Set screws down by their related parts to avoid
using them in the wrong places.
, Providea non-scratching work surfacefor the doors.
IMPORTANT; Onceyou begin, do not move the cabinet
until door-swing reversalis completed.
These instructions are for changing the hinges from
the right side to the left side-if you ever want to
change the hinges back to the right side, follow these
same instructions and reverse all references to left and
right.
Once door swing isfinalized, ensure the logo badge
is properly aligned and permanently secured to
the door by removing the adhesive cover on the
back side.
NOTE:A replacement logo badge is included in the
hinge kit.
Unplug the refrigerotor from its electricol outlet.
Empty oil door shelves, including the doiry
comportment.
TOOLS YOU WILL NEED
Adjustable Wrench
5/16" Socket
Ratchet/Driver
Masking Tape Thin-blade Screwdriver
@ ©
Phillips Screwdriver Torx T-20 Driver
[] REMOVE THE REFRIGERATOR DOOR
r_ Tape the door shut with masking tape.
r_ Remove the hinge cover on top of the
refrigerator door by removing the Phillips-head
screws and pulling it up.
r_ using a 5/16" socket ratchet/driver, remove the
bolts securing the top hinge to the cabinet. Then
lift the hinge straight up to free the hinge pin
from the socket in the top of the door.
O
Hinge Cover
@
Hinge
O
Remove the tape and tilt the door away from
the cabinet. Lift the door off the center hinge
pin. Ensure that the plastic hinge pin thimble
remains on the hinge pin or inside door hinge
pin hole located in the bottom of the door.
[] Set the door on a non-scratching surface with
the inside up.
28
To Next Page
