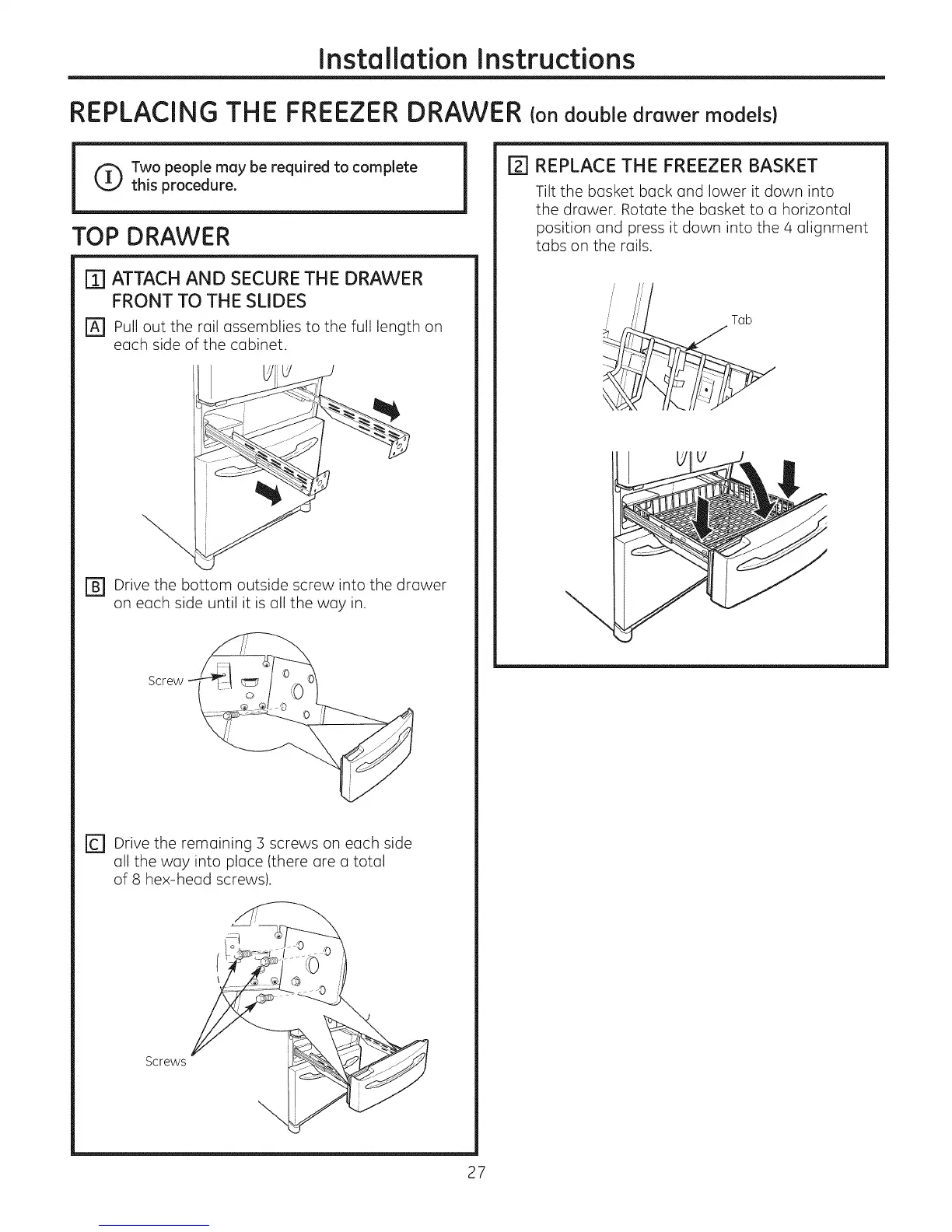

Installation Instructions
REPLACING THE FREEZERDRAWER Iondouble drawer models}
Two people may be required to complete
this procedure.
TOP DRAWER
[] ATTACH AND SECURE THE DRAWER
FRONT TO THE SLIDES
r_ Pull out the rail assemblies to the full length on
each side of the cabinet.
FB1 Drive the bottom outside screw into the drawer
on each side until it is all the way in.
Screw
rc1 Drive the remaining 3 screws on each side
all the way into place (there are a total
of 8 hex-head screws).
Screws
ITI REPLACE THE FREEZER BASKET
Tilt the basket back and lower it down into
the drawer. Rotate the basket to a horizontal
position and press it down into the 4 alignment
tabs on the rails.
Tab
27
