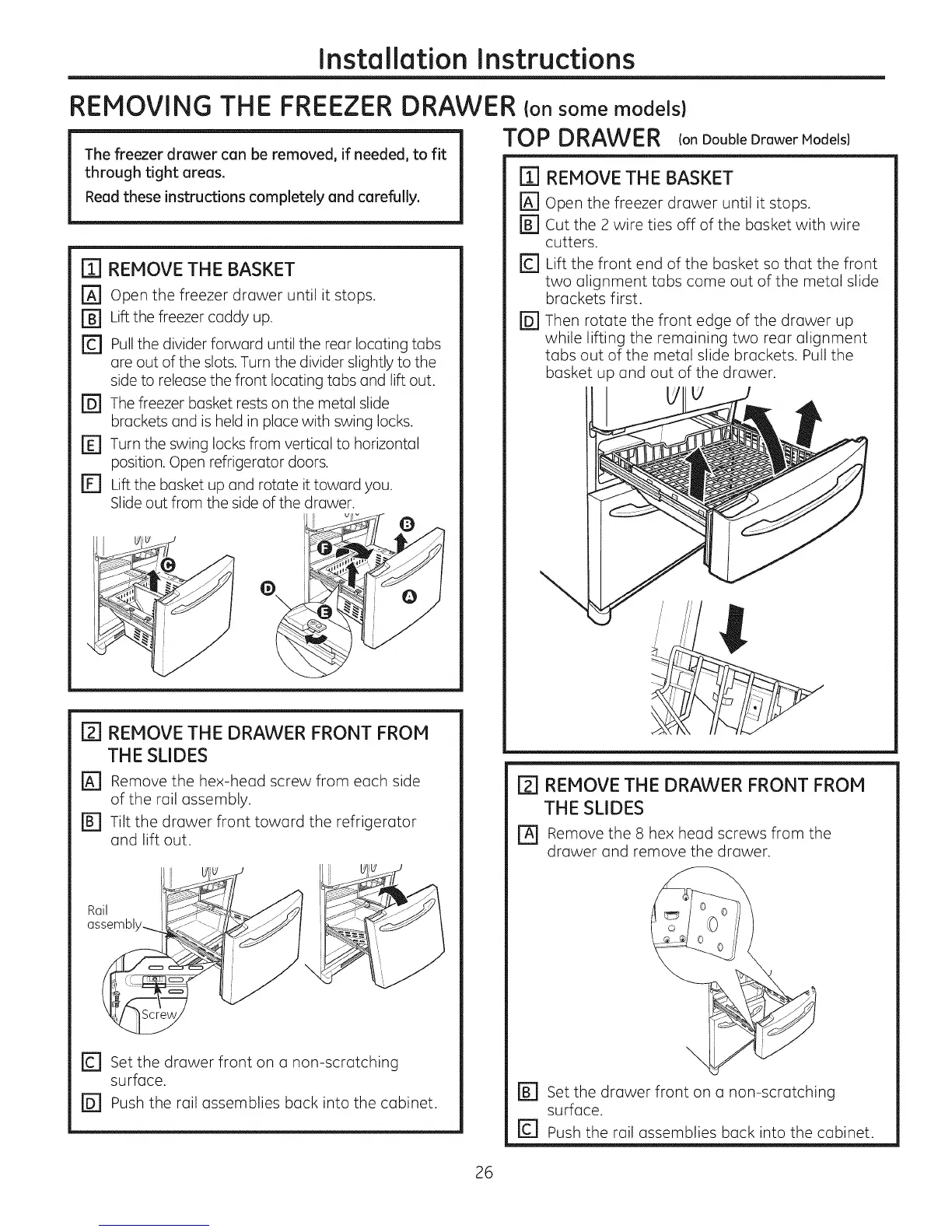

Installation Instructions
REMOVING THE
FREEZER DRAWER Consome models)
TOP DRAWER €ooDoubleDrclwerModels)
The freezer drawer can be removed, if needed, to fit
through tight areas.
Read these instructions completely and carefully.
[] REMOVE THE BASKET
r_ open the freezer drawer until it stops.
[] Lift the freezer caddy up.
r_ pull the divider forward until the rear locating tabs
are out of the slots. Turn the divider slightly to the
side to release the front locating tabs and lift out.
r_ The freezer basket rests on the metal slide
brackets and is held in place with swing locks.
r_ Turn the swing locks from vertical to horizontal
position. Open refrigerator doors.
r_ Lift the basket up and rotate it toward you.
Slide out from the side of the drawer.
[_] REMOVE THE DRAWER FRONT FROM
THE SLIDES
r_ Remove the hex-head screw from each side
of the rail assembly.
r_ Tilt the drawer front toward the refrigerator
and lift out.
©
@
Set the drawer front on a non-scratching
surface.
Push the rail assemblies back into the cabinet.
Rail
assembl,
[!] REMOVE THE BASKET
ral Open the freezer drawer until it stops.
[] Cut the 2 wire ties off of the basket with wire
cutters.
r_ Lift the front end of the basket so that the front
two alignment tabs come out of the metal slide
brackets first.
Then rotate the front edge of the drawer up
while lifting the remaining two rear alignment
tabs out of the metal slide brackets. Pull the
basket up and out of the drawer.
V
REMOVE THE DRAWER FRONT FROM
THE SLIDES
r_ Remove the 8 hex head screws from the
drawer and remove the drawer.
r_ set the drawer front on a non-scratching
surface.
r_ push the rail assemblies back into the cabinet.
26
