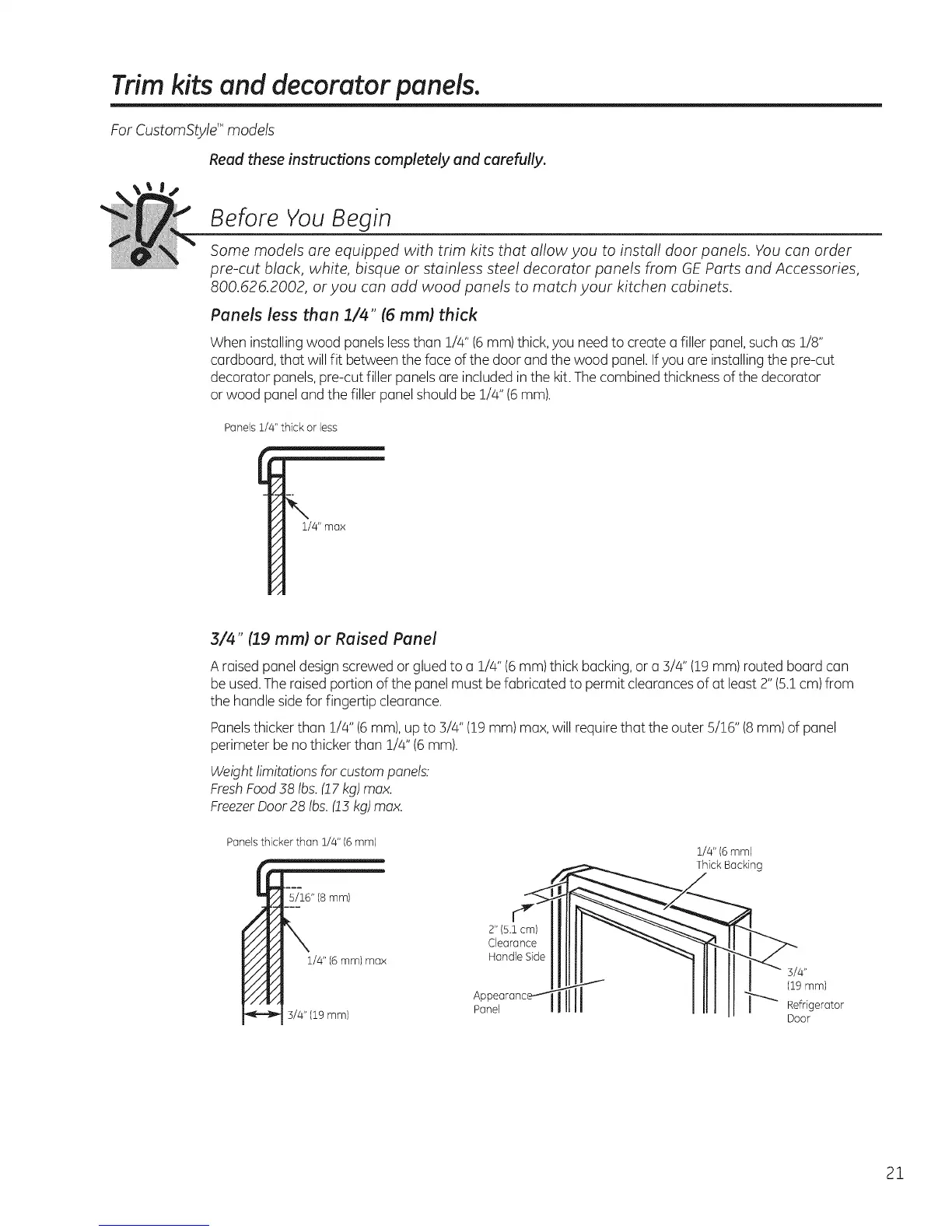

Trim kits and decorator panels.
For CustomStyle ''_models
Read these instructions completely and carefully.
Before You Begin
.Some models ore equipped with trim kits that allow you to install door ponds. You con order
pre-cut block, white, bisque or stainless steel decorator ponds from GE Ports and Accessories,
800.626.2002, or you con odd wood ponds to match your kitchen cabinets.
Panels less than 1/4" (6 mm) thick
When installing wood panels less than !/4" (6 ram) thick, you need to create a filler panel, such as 1/8"
cardboard, that willfit between the face of the door and the wood panel. Ifyou are installing the pre-cut
decorator panels, pre-cut filler panels are included inthe kit.The combined thickness of the decorator
or wood panel and the filler panel should be !/4" (6ram).
Panels 1/4" thick or less
m
\
1/4" max
3//4" (19 mm) or Raised Panel
A raised panel designscrewed or glued to a 1/4" (6mm) thick backing, or a 3/4" (19mm) routed board can
be used.The raisedportion of the panel must be fabricated to permit clearances of at least 2" (5.1cm) from
the handle side for fingertip clearance.
Panelsthicker than 1/4" (6mm), up to 3/4" (19mm) max, will require that the outer 5/16" (8mm) of panel
perimeter be no thicker than !/4" (6 mm).
Weight limitations for custom panels.
FreshFood58 Ibs.1!7kg)max.
FreezerDoor28 Ibs. (!5 kg)max.
Panelsthicker than 1/4" (6mm)
5/16"(8mm)
1/4" (6 ram) max
3/4" (19 ram)
2" (S.1cm)
Clearance
Handle Side
Appearance-_
Panel
1/4" (6 mm)
Thick Backing
,
i,J If eJyerator
21
