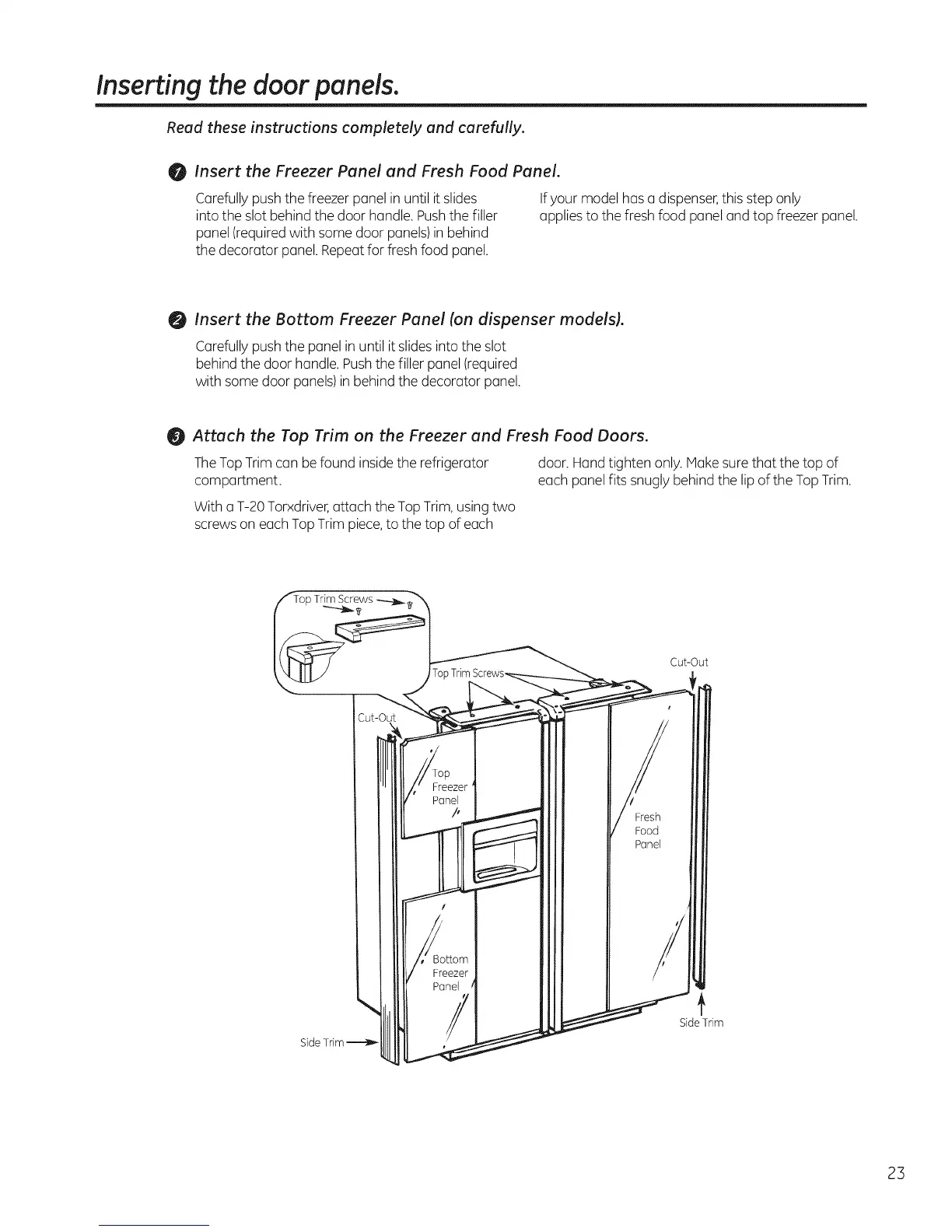

Inserting the door panels.
Read these instructions completely and carefully.
0 insert the Freezer Panel and Fresh Food Panel.
Carefully push the freezer panel in until it slides Ifyour model has a dispenser, this step only
into the slot behind the door handle. Push the filler applies to the fresh food panel and top freezer panel.
panel (required with some door panels)in behind
the decorator panel. Repeat for fresh food panel.
0 Insert the Bottom Freezer Panel (on dispenser models).
Carefully pushthe panel in until itslides into the slot
behind the door handle, Pushthe filler panel (required
with some door panels)in behind the decorator panel.
Attach the Top Trim on the Freezer and Fresh Food Doors.
TheTopTrim can be found insidethe refrigerator door. Handtighten only. Hake sure that the top of
compartment, each panel fits snugly behind the lip of the TopTrim.
With a T-20 Torxdriver,attach the Top Trim, using two
screws on eachTop Trim piece,to the top of each
,_Top Trim Screws
Cut-Out
SideTrim
t
Side Trim
23
