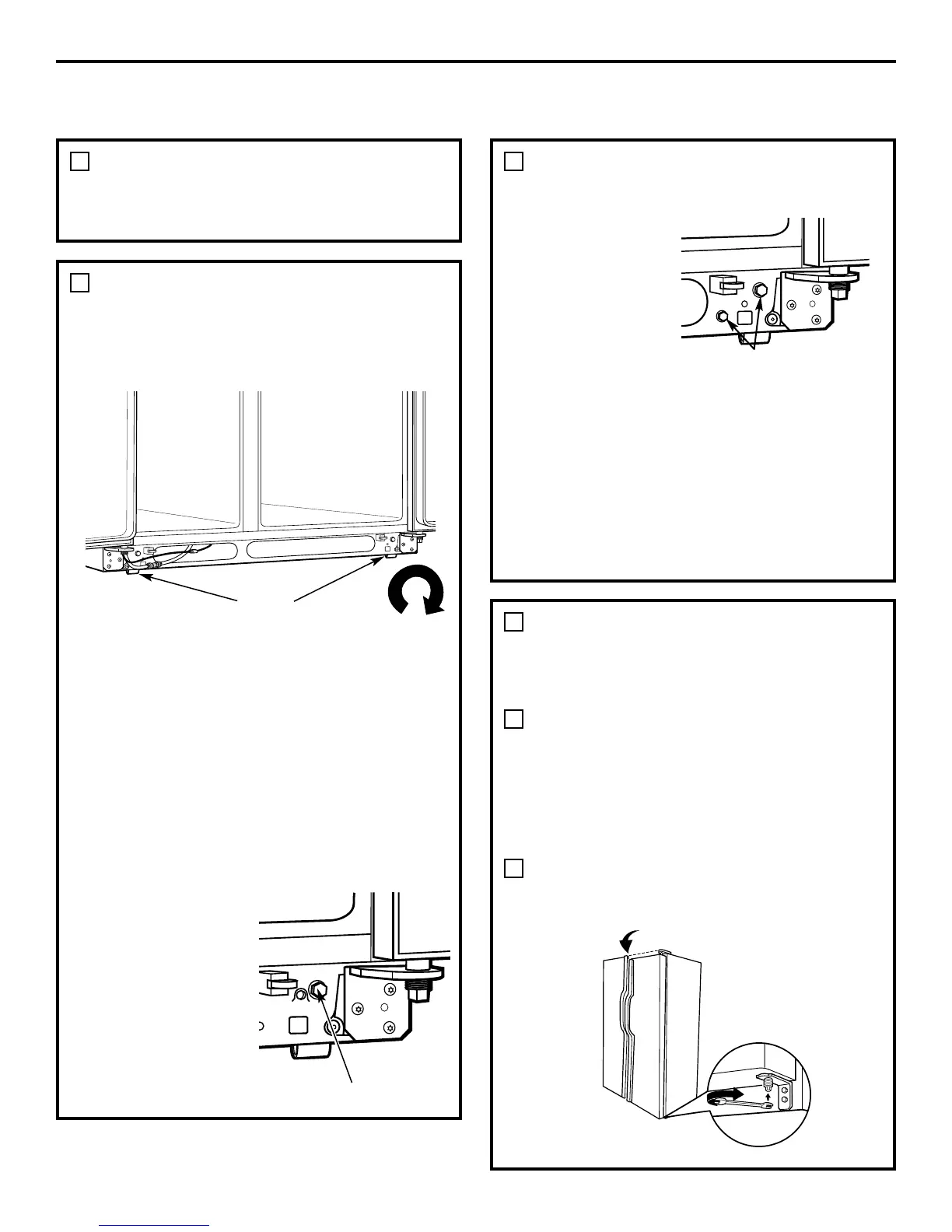

Installation Instructions
INSTALLING THE REFRIGERATOR (CONT.)
PUT THE REFRIGERATOR
IN PLACE
Move the refrigerator to its final location.
4
LEVEL THE REFRIGERATOR
(cont.)
To adjust the
rollers on 23
models:
Turn the front
roller adjusting
screws clockwise
to raise the
refrigerator,
counterclockwise
to lower it. Use a
3/8 hex socket or wrench, or an adjustable
wrench.
These models also have rear adjustable
rollers so you can align the refrigerator
with your kitchen cabinets. Use a long-
handled 5/16 socket wrench to turn the
screws for the rear rollers—clockwise to
raise the refrigerator, counterclockwise
to lower it.
5
LEVEL THE REFRIGERATOR
The refrigerator can be leveled by
adjusting the rollers located near the
bottom hinges.
Rollers have three purposes:
Rollers adjust so the door closes easily
when opened about halfway. (Raise the
front about 5/8 [16 mm] from the floor.)
Rollers adjust so the refrigerator is
firmly positioned on the floor and does
not wobble.
Rollers allow you to move the
refrigerator away from the wall for
cleaning.
To adjust the rollers on 25, 27 and 29
models:
Turn the roller
adjusting screws
clockwise to
raise the
refrigerator,
counterclockwise
to lower it. Use a
3/8 hex socket
or wrench, or an
adjustable
wrench.
5
Rollers
Roller adjusting screw
Roller adjusting screws
LEVEL THE DOORS
Adjust the refrigerator door to make the
doors even at the top.
To align:
Using a 7/16 wrench, turn the door
adjusting screw to the right to raise the
door, to the left to lower it.
NOTE:
A nylon plug, imbedded in the threads
of the pin, prevents the pin from turning
unless a wrench is used.
After one or two turns of the wrench,
open and close the refrigerator door and
check the alignment at the top of the doors.
6
A
B
Doors should be even at top
Raise
7/16 wrench
28
Raise
