MOVING THE REFRIGERATOR (Cont.)

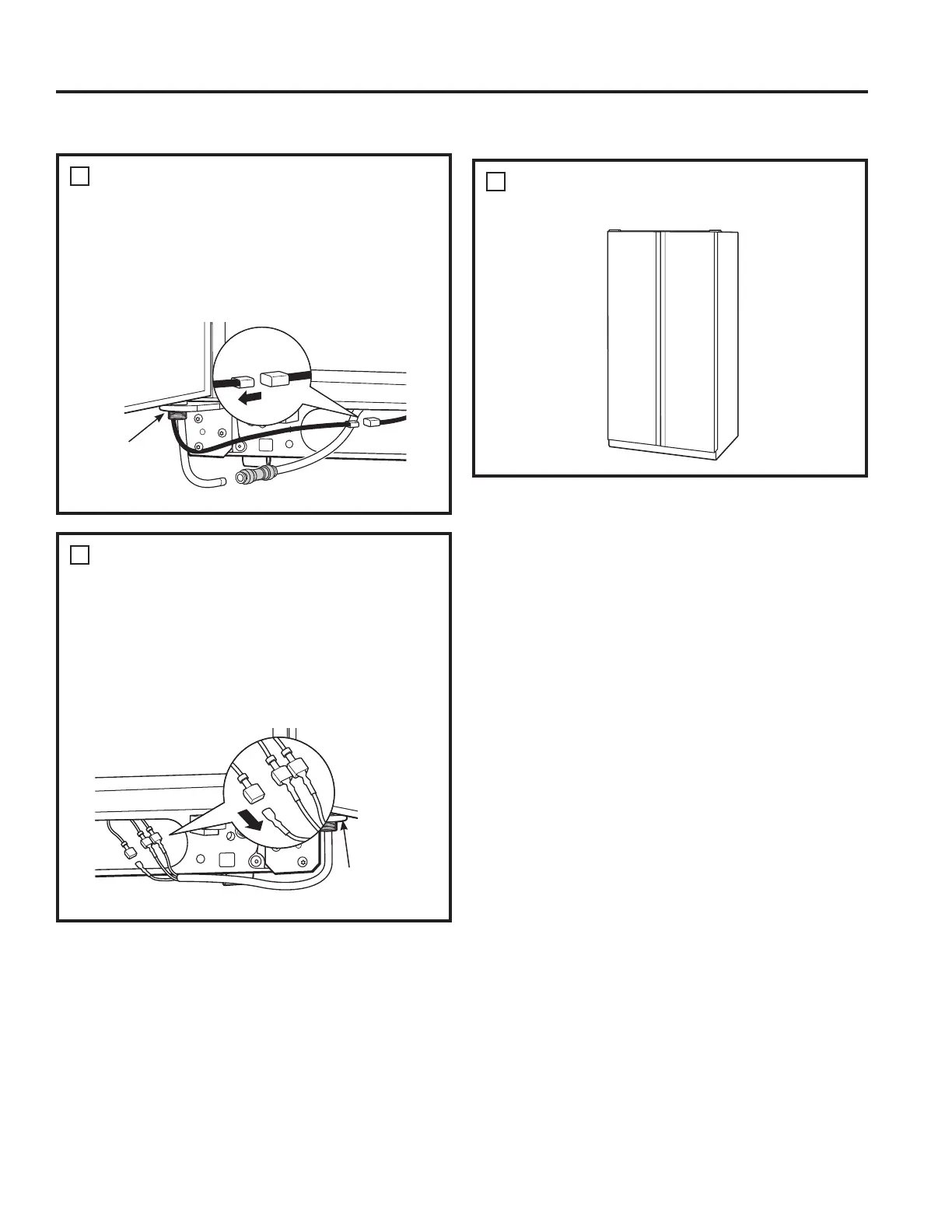

DISCONNECT THE POWER
COUPLING (on some models)
If the refrigerator has a water dispenser,
there is a power line (harness) from the cabinet
LQWRWKHERWWRPKLQJHRQWKHIUHH]HUGRRUWKDW
must be disconnected.
To disconnect, pull apart at the coupling.
4
Bottom
IUHH]HU
hinge
DISCONNECT THE ELECTRICAL
CONNECTORS (on some models)
If the refrigerator has a refreshment center,
there are electrical connectors (harnesses)
from the cabinet into the bottom hinge on the
refrigerator door that must be disconnected.
To disconnect, pull apart each connector.
5
Bottom
refrigerator
hinge
CLOSE THE FREEZER AND
REFRIGERATOR DOORS
6
