4 K0554 Revision A
Figure 3 ADTS Touch umbilical cable connector
The ADTS Touch can contain one Lithium-ion battery which is housed in the battery
compartment of the ADTS Touch.
2.1 Replacing the battery

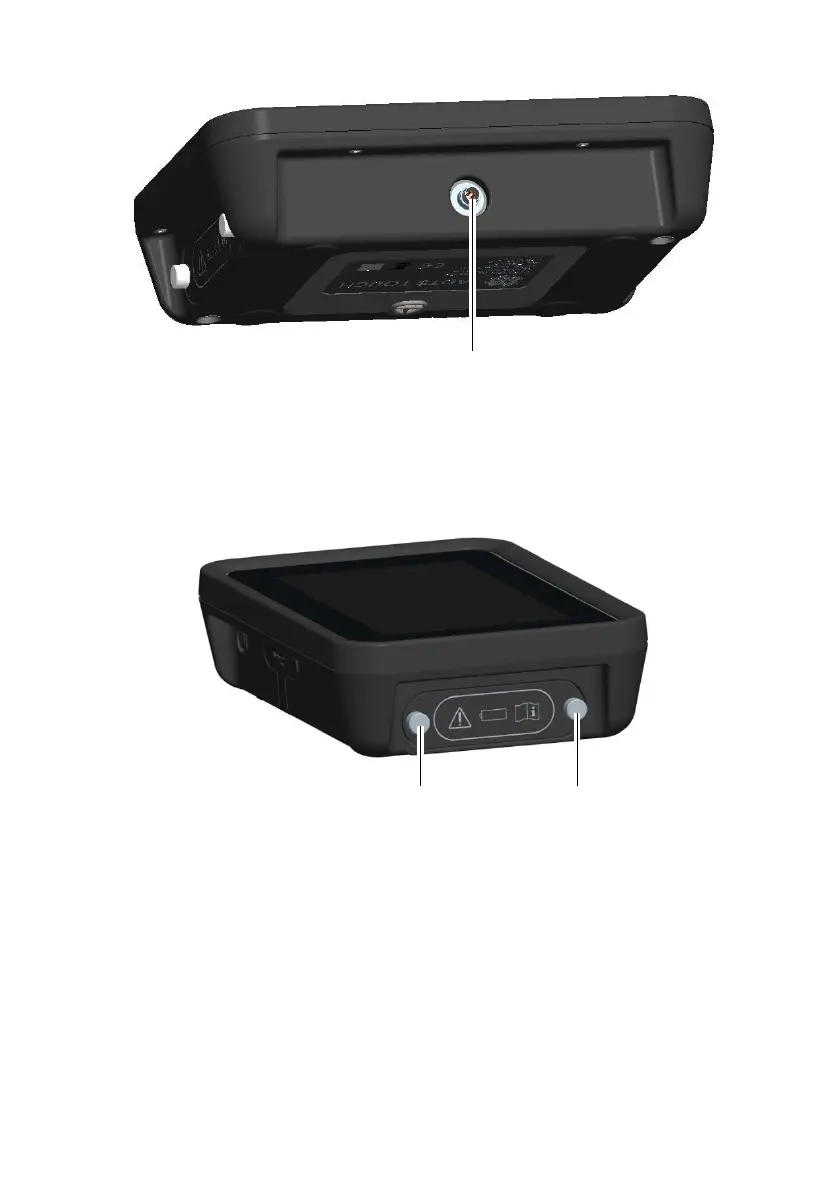

Figure 4 ADTS Touch battery compartment
Note: Only use batteries that have been supplied by or purchased from GE.
Prior to replacing the battery, switch the ADTS Touch off. If the ADTS Touch is connected to
the umbilical cable or Docking connector, disconnect prior to removing the battery cover
plate.
1. Unscrew the two thumbscrews (5) of the battery compartment cover plate and remove
the cover plate.
