Installation Instructions

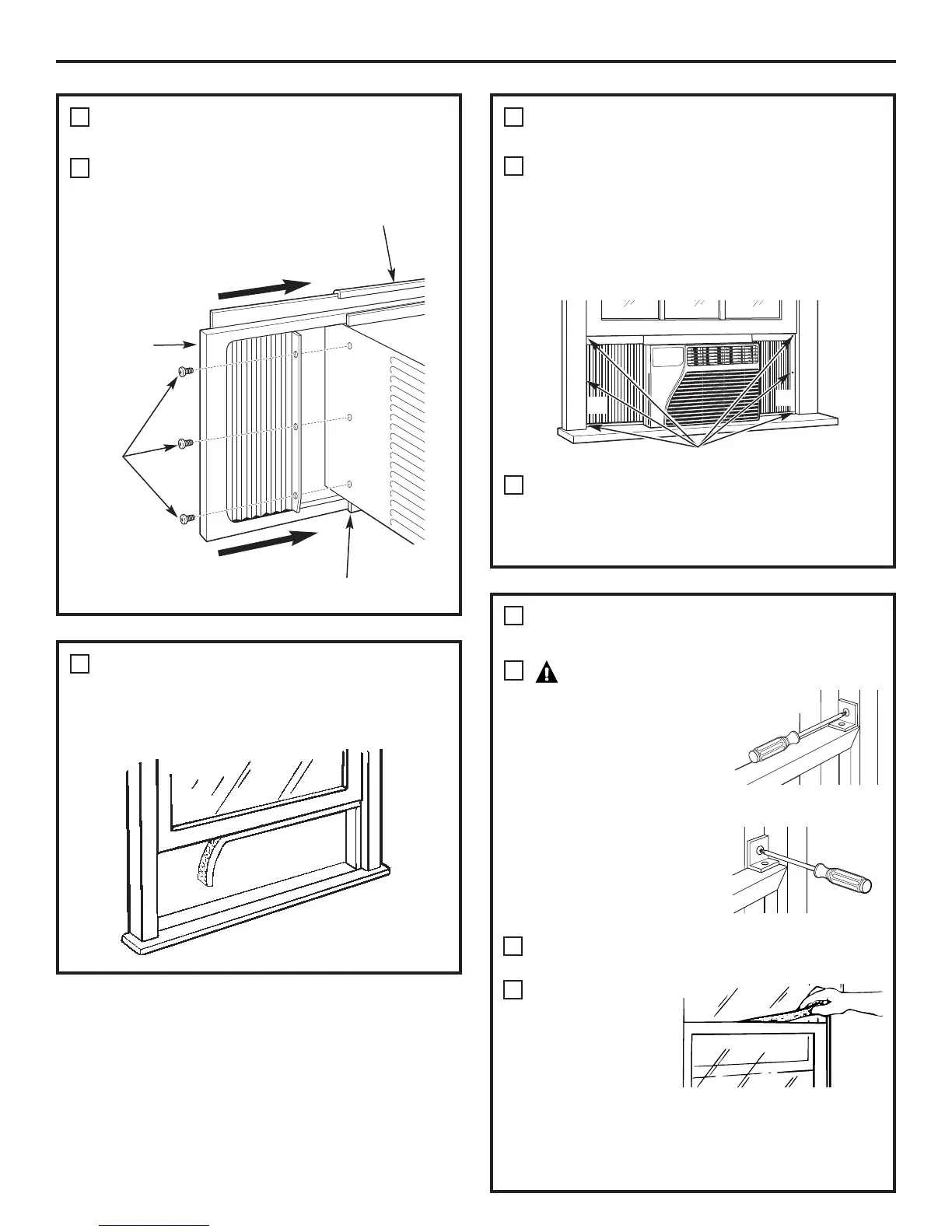

PREPARE THE AIR CONDITIONER
(cont.)
Attach the accordion panels to the case
using 3 Type A screws on each side.
4
INSTALL THE AIR CONDITIONER
IN THE WINDOW
Place the air conditioner on the sill with
the bottom mounting rail against its back
edge. Center it and close the window
securely behind the top mounting rail.
It should be level or slightly tilted to the
outside. Use a level; about a 1/3 bubble
will be the correct case slant to the outside.
Extend the left and right accordion panels
to the vertical window sashes and attach,
through the holes in the panels, with 4
Type C screws, as appropriate.
6
A
B
Type C screws
or
or
PREPARE THE WINDOW
Cut the window sash seal to the proper
length. Peel off the backing and attach the
seal to the underside of the window sash.
5
C
Type A
screws
Top mounting rail
Bottom mounting rail
Accordion
panel
BACK
INSTALL SUPPORT BRACKET AND
FOAM TOP WINDOW GASKET
Attach the support
bracket with one
Type C screw.
Cut the foam top window gasket to the
window width.
Stuff the foam
between the
glass and the
window to
prevent air and
insects from
getting into the room.
NOTE: If the gasket supplied does not fit
your window, obtain appropriate material
locally to provide a proper installation seal.
7
A
CAUTION:
To prevent broken glass
or damage to windows,
on vinyl or other
similarly constructed
windows, attach the
support bracket to the
window side jam.
B
C
Wood
Vinyl
