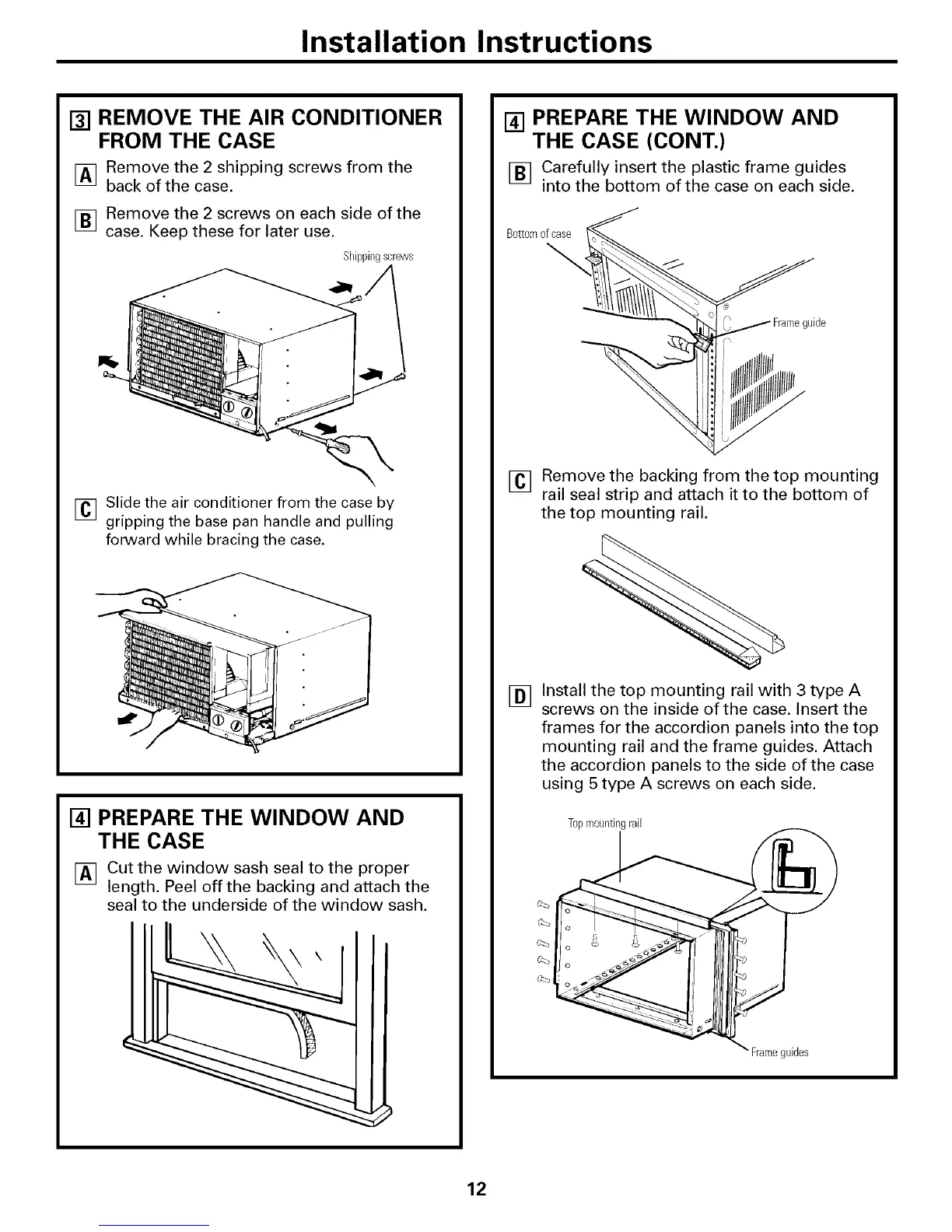

Installation Instructions
[] REMOVE THE AIR CONDITIONER
FROM THE CASE
IAq Remove the 2 shipping screws from the
L_J
back of the case.
FSq Remove the 2 screws on each side of the
L_J
case. Keep these for later use.
Shippingscrews
[] Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case.
[] PREPARE THE WINDOW AND
THE CASE
[] Cut the window sash seal to the proper
length. Peel off the backing and attach the
seal to the underside of the window sash.
[] PREPARE THE WINDOW AND
THE CASE (CONT.)
[] Carefully insert the plastic frame guides
into the bottom of the case on each side.
Bottomofcase
_de
F
[] Remove the backing from the top mounting
rail seal strip and attach it to the bottom of
the top mounting rail.
[]
Install the top mounting rail with 3 type A
screws on the inside of the case. Insert the
frames for the accordion panels into the top
mounting rail and the frame guides. Attach
the accordion panels to the side of the case
using 5 type A screws on each side.
Topmountingrail
Frameguides
12
