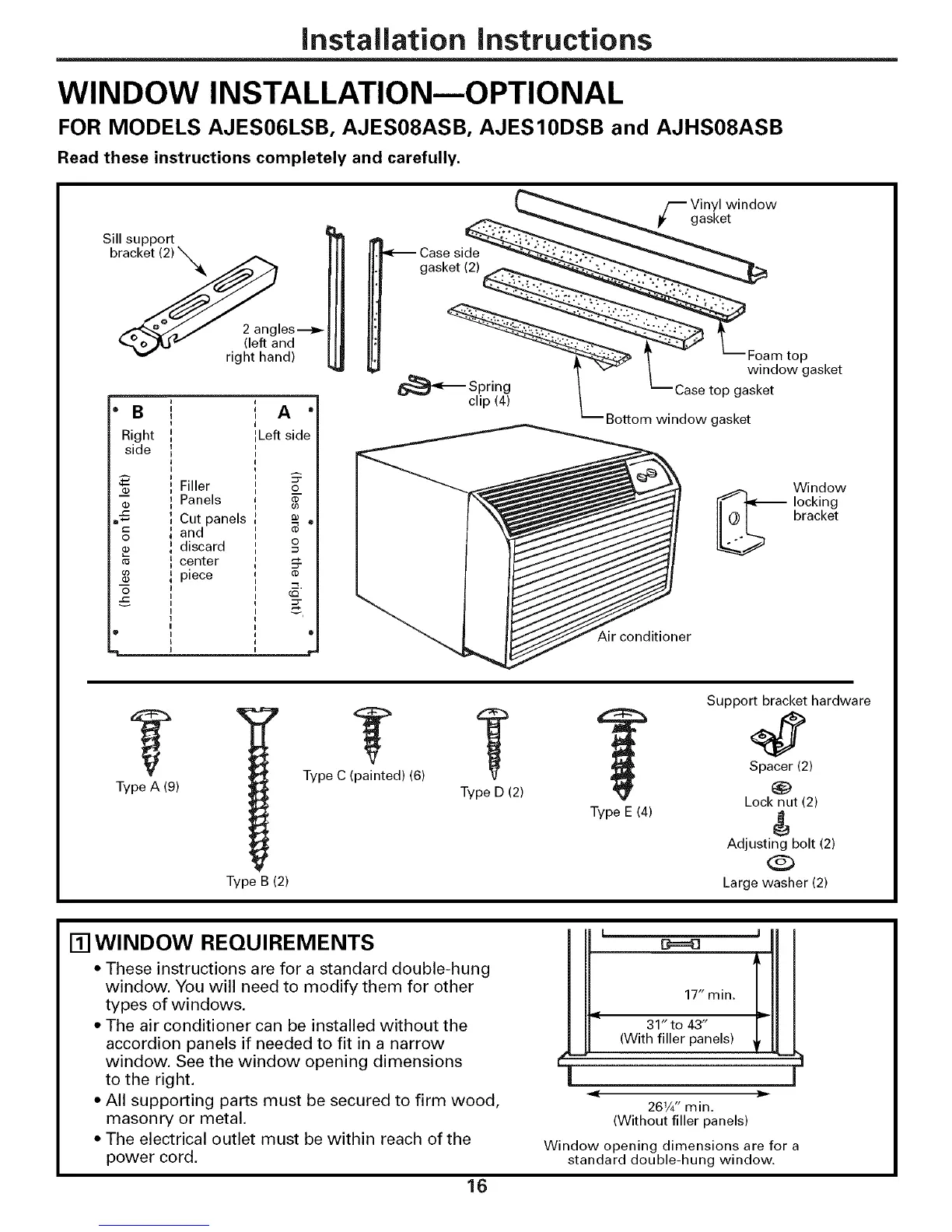

Installation instructions
WINDOW INSTALLATION--OPTIONAL
FOR MODELS AJES06LSB, AJES08ASB, AJES10DSB and AJHS08ASB
Read these instructions completely and carefully.
Sill support
bracket (2) X_k
2 angles----_-
(left and
right hand)
• B
Right
side
03
03
03
03
I A •
I
'_Left side
Filler _"
Panels
Cut panels c_
and _ "
discard o
center _-
piece
I i •
L J
B I
Case side
gasket (2)
F inyl window
gasket
Foam top
_' _ window gasket
_'-- SlPri_4_ \ Case top gasket
P _ Bottom window gasket
Window
_ locking
bracket
Air conditioner
lr
Type A (9)
i
Type B (2)
Type C (painted) (6)
Type D (2)
Type E (4)
Support bracket hardware
4'
Spacer 12)
Lock nut (2)
$
Adjusting bolt (2)
Large washer (2)
[] WINDOW REQUIREMENTS
• These instructions are for a standard double-hung
window. You will need to modify them for other
types of windows.
• The air conditioner can be installed without the
accordion panels if needed to fit in a narrow
window. See the window opening dimensions
to the right.
• All supporting parts must be secured to firm wood,
masonry or metal.
• The electrical outlet must be within reach of the
power cord,
L ]
[Y===8
17" min.
31" to 43"
(With filler panels)
261/4"min.
(Without filler panels)
Window opening dimensions are for a
standard double-hung window.
16
