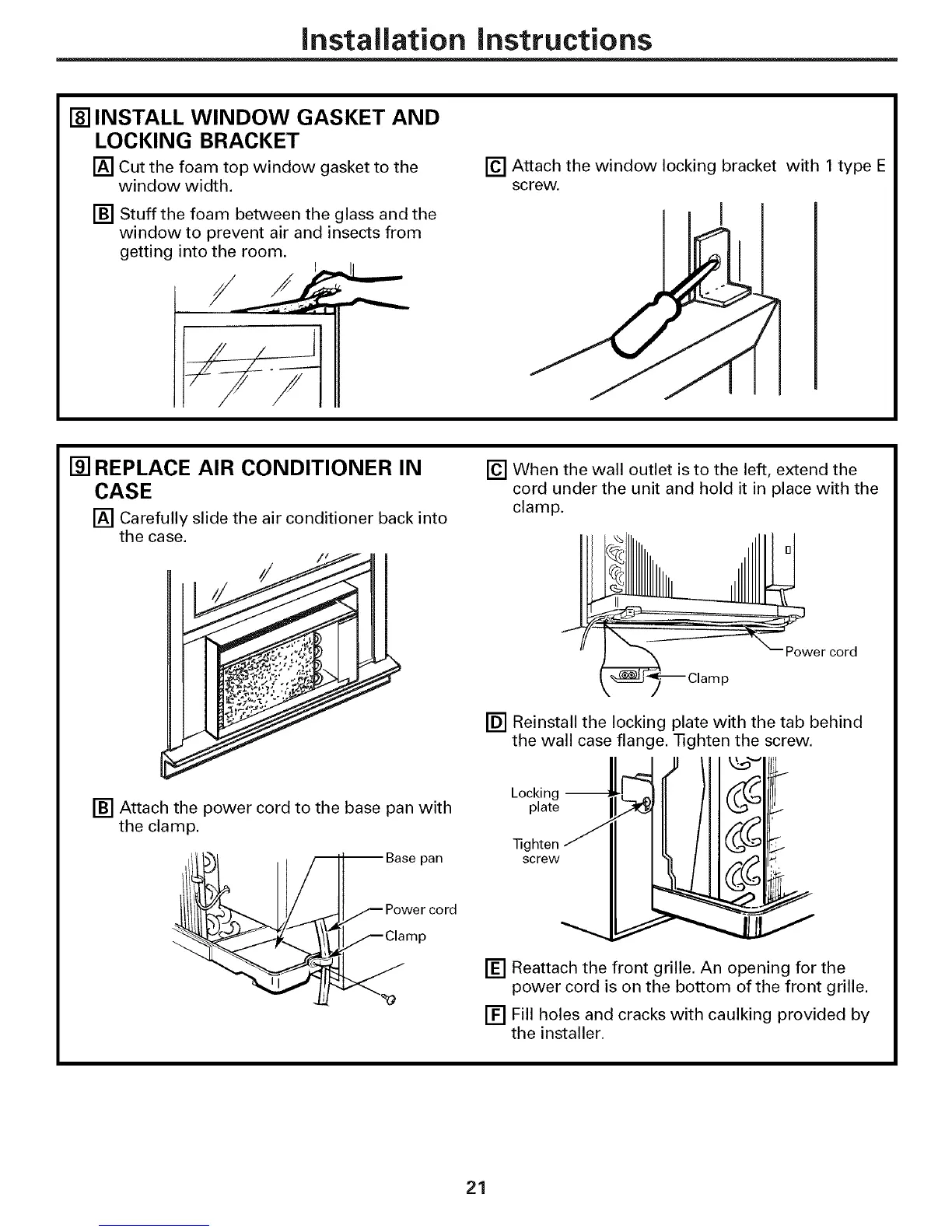

Installation instructions
[] INSTALL WINDOW GASKET AND
LOCKING BRACKET
[] Cut the foam top window gasket to the
window width.
[] Stuff the foam between the glass and the
window to prevent air and insects from
getting into the room.
[] Attach the window locking bracket with 1 type E
screw.
I
[] REPLACE AIR CONDITIONER IN
CASE
[] Carefully slide the air conditioner back into
the case.
[] When the wall outlet is to the left, extend the
cord under the unit and hold it in place with the
clamp.
[] Attach the power cord to the base pan with
the clamp.
pan
Power cord
P
[] Reinstall the locking plate with the tab behind
the wall case flange. Tighten the screw.
_1 Y \1 _'_1t_/
Loc_i_g _ __
•s hten
[]
[]
Reattach the front grille. An opening for the
power cord is on the bottom of the front grille.
Fill holes and cracks with caulking provided by
the installer.
