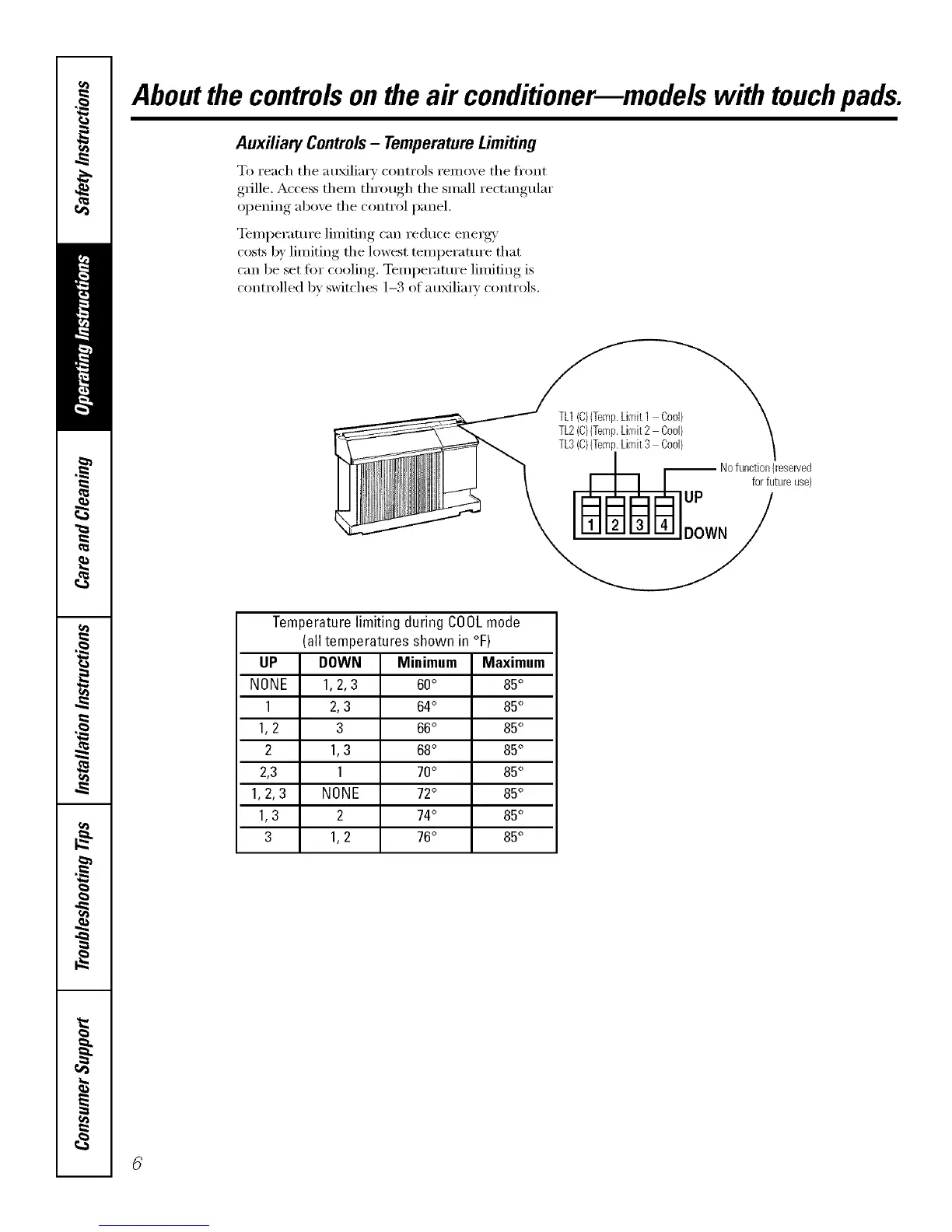

About the controlsonthe air conditionermmodels with touchpads.
Auxiliary Controls- TemperatureLimiting
To reach the auxiliary controls remove the fl'ont
g_ille, Access them through the small rectangular
opening above the control panel.
Temperature limiting can reduce energy
costs by limiting the lowest temperature that
can be set for cooling. Temperature limiting is
controlled bv switches 1-3 of au_lia_w controls.
TL1(C){Temp.Limit1 Cod)
TL2(C){Temp.Limit2 Cool)
TL3(C}{Temp.Limit3 Cool}
UP
-- Nofunction(reserved
for futureuse)
DOWN
Temperaturelimiting during COOLmode
(all temperatures shown in °F)
UP DOWN Minimum Maximum
NONE 1, 2, 3 60° 85°
1 2,3 64° 85°
1,2 3 66° 85°
2 1,3 68° 85°
2,3 1 70° 85°
1,2,3 NONE 72° 85°
1,3 2 74° 85°
3 1,2 76° 85°
