SECTION
3
FRONT
FRAME
BREAKER
CONVERSION
Remounting
X
and
Y
Relays
On
electrically
operated
breakers
equipped
with
EC
trip
device
,
the
Y
relay
is
mounted
on
the
front
frame
at
the
right
side
of
the
operation
mechanism
.
Step
1
.
To
provide
mounting
space
for
the
new
flux
shift
trip
device
,
remove
the
Y
relay
and
remount
it
on
the left end
of
the
arc
quencher
retainer
as
shown
in
Figs
.
3
-
2
and
3
-
3
(
using
hardware
and
parts
included
)
.
Step
2
.
Modify
the breaker
'
s
wiring
harness
to
suit
.
The
X
relay
should be remounted
after
the
programmer
mount
and bracket
are
installed
.
See
installing
the
programmer
bracket and
Fig
.
3
-
8
.

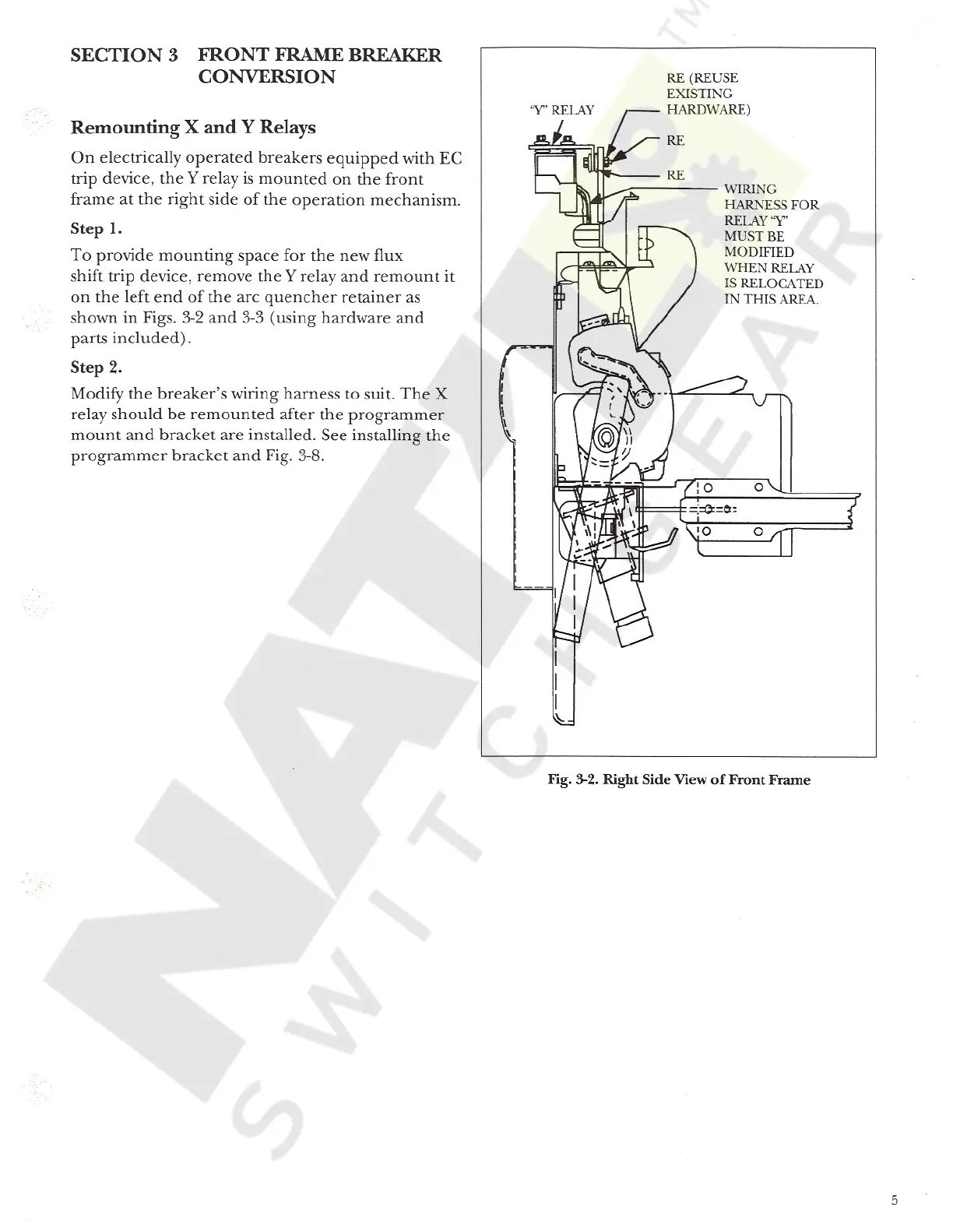

Fig
.
3
-
2
.
Right
Side
View
of
Front
Frame
5
Courtesy of NationalSwitchgear.com
