Temperature Limiting
Temperature limiting limits the lowest temperature that can be set for cooling and the highest temperature
that can be set for heating. The dip switches are used to control temperature limiting.
Temperature limiting is dependent on the Room Air Sensor (kit). If the Room Air Sensor (kit) is not installed,
temperature limiting will not operate. Temperature limiting is not dependent on the Occupied dip switch, Mo-
tion Sensor (kit), or Door Sensor (kit)
.

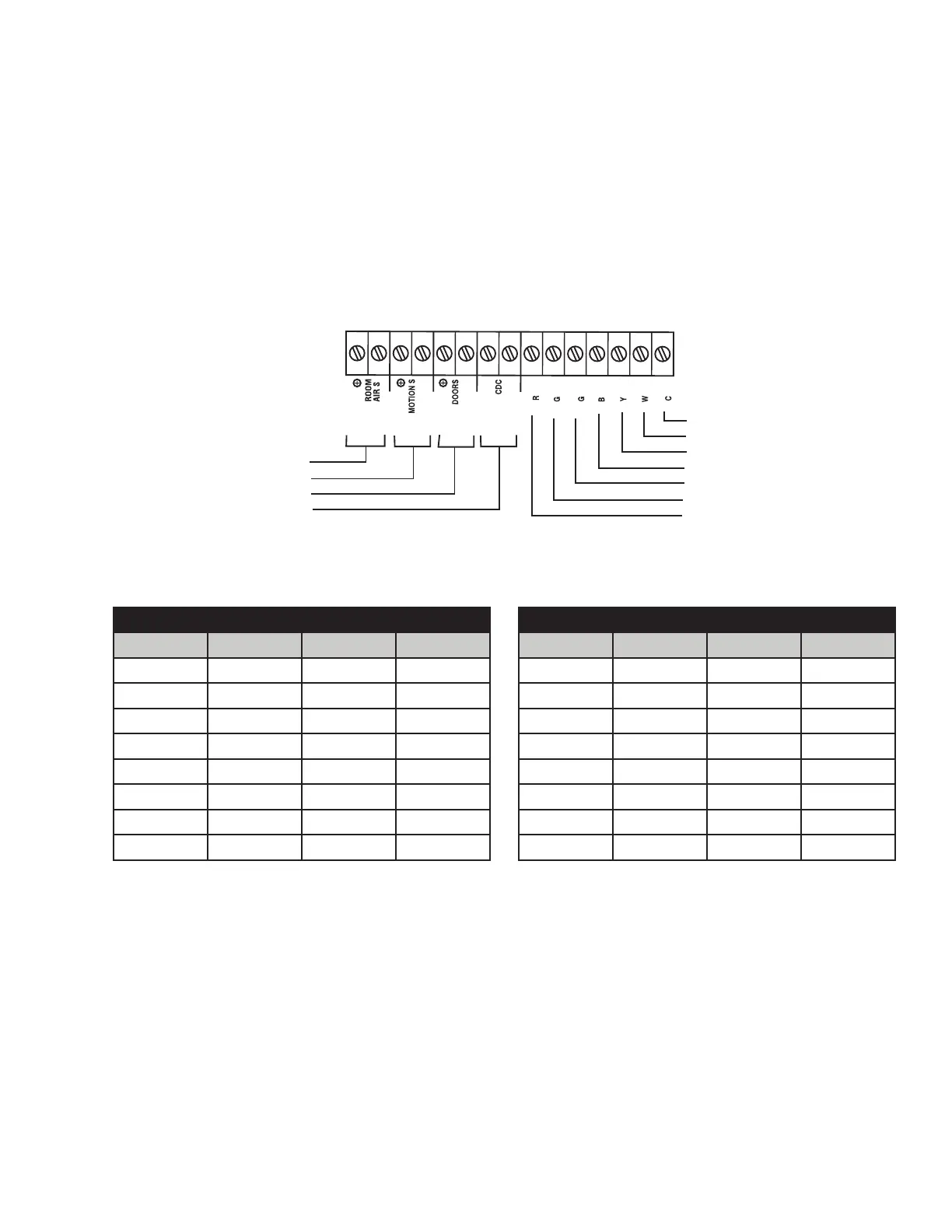

24V
AC
FAN LO
FAN HI
REV VAL
COMP
A
UX HEA
T
COMMON
Freeze Sentinel
Temperature Limiting During Cool Mode
UP DOWN Minimum Maximum
NONE 1,2,3 60°F 85°F
1 2,3 64°F 85°F
1,2 3 66°F 85°F
2 1,3 68°F 85°F
2,3 1 70°F 85°F
1,2,3 NONE 72°F 85°F
1,3 2 74°F 85°F
3 1,2 76°F 85°F
Temperature Limiting During HEAT Mode*
UP DOWN Minimum Maximum
NONE 4,5,6 60°F 85°F
4 5,6 60°F 80°F
4,5 6 60°F 78°F
5 4,6 60°F 76°F
5,6 4 60°F 74°F
4,5,6 NONE 60°F 72°F
4,6 5 60°F 70°F
6 4,5 60°F 65°F
* Not applicable to Cool-only models.
(Continued next page)
