– 29 –

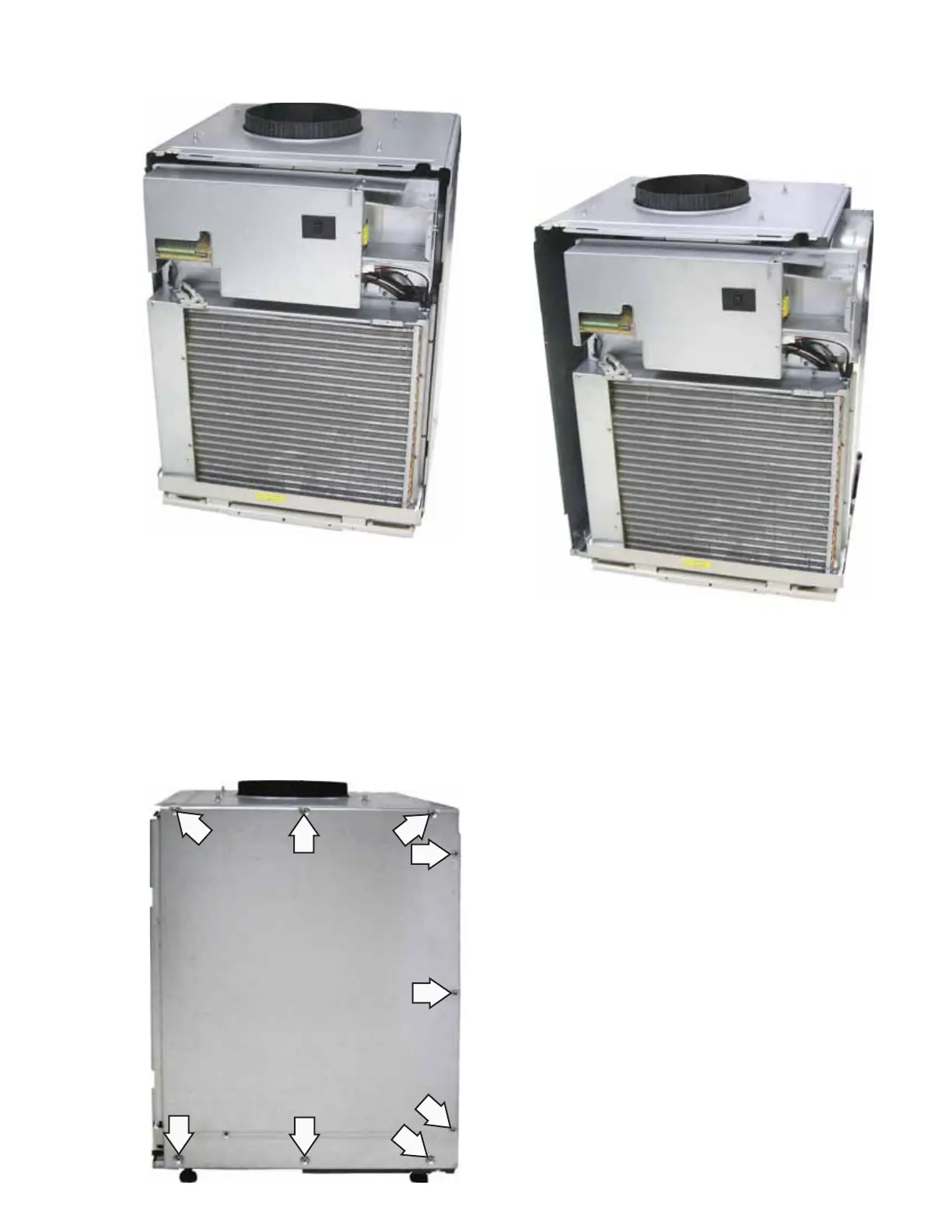

2. Pull the chassis out of the front of the cabinet
approximately 2 inches.
3. Slide the chassis out from the side of the
cabinet.
8. Slide the chassis out from the front of the
cabinet.
Side Removal
Note: If the slide-out chassis cannot be removed
from the front, perform steps 1 through 6 of To
remove the slide-out chassis from the front, then
proceed with side removal.
To remove the slide-out chassis from the side:
1. Remove 9 Phillips-head screws and the cabinet
side plate.
