210572107 Rev. C 1-08
GENERAL SAFETY INFORMATION
(Continued)
fuel burning equipment to prevent back drafting. Follow
the heating equipment manufacturer’s guideline and
safety standards such as those published by the National
Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration, and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
CAUTION: FOR GENERAL VENTILATING USE
ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR
EXPLOSIVE MATERIALS AND VAPORS.
6. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
7. Ducted fans must always be vented to the outdoors.
8. This unit must be grounded.
9. To avoid motor bearing damage and noisy and/or
unbalanced impellers, keep drywall spray, construction
dust, etc. off power unit.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY
SOLID-STATE SPEED CONTROL DEVICE.
WARNING: DO NOT INSTALL OVER A TUB OR
MOUNT IN A SHOWER STALL ENCLOSURE.
10. NEVER place a switch where it can be reached from
a tub or shower.
WARNING: DO NOT USE IN KITCHENS
INSTALLATION INSTRUCTIONS
CAUTION:
MAKE SURE POWER IS SWITCHED OFF
AT SERVICE PANEL BEFORE STARTING INSTALLATION.
SECTION 1
Preparing the Exhaust Fan
1. Unpack fan from the carton and confirm that all
pieces are present. In addition to the exhaust fan
you should have:
1 - Grill with Glass Light Lens
1 - Damper Assembly (attached)
2 - #8 Screws
2 - Lockwashers
4 - Mounting Rails
1 - Instruction/Safety Sheet
2. Choose the location for your fan. To ensure the best
air and sound performance, it is recommended that
the length of ducting and the number of elbows be
kept to a minimum, and that insulated hard ducting
be used. Larger duct sizes will reduce noise and
airflow restrictions. This fan will require at least 6"
of clearance in the ceiling or wall, and will mount
through drywall up to 3/4" thick. The fan can be
mounted directly to the joist using the mounting tabs
on the sides of the housing or between 16" on center
joists using the 4 provided
mounting rails.
SECTION 2
New Construction
1. Mounting Rail Installation: Install the rails on the
housing and position the housing next to the joist.
Using the gauge on the fan’s housing, line up housing
so that it will be flush with the finished ceiling. Secure
the ends of the rails with screws or nails (not
included) to the joists and slide the housing into the
final position (Figure 1).
2. Mounting Tab Installation: Using the gauge on the
fan’s housing, line up housing so that it will be flush
with the finished ceiling. Position the fan so that the
tabs rest flat against the joist and secure with four
nails or screws (not provided) to ensure proper
installation (Figure 2).
SECTION 3
Existing Construction
1a. Mounting Rail Installation: Set housing in position
between the joist and trace an outline onto the ceiling
material (Figure 3). Set housing aside and cut
2 of 8

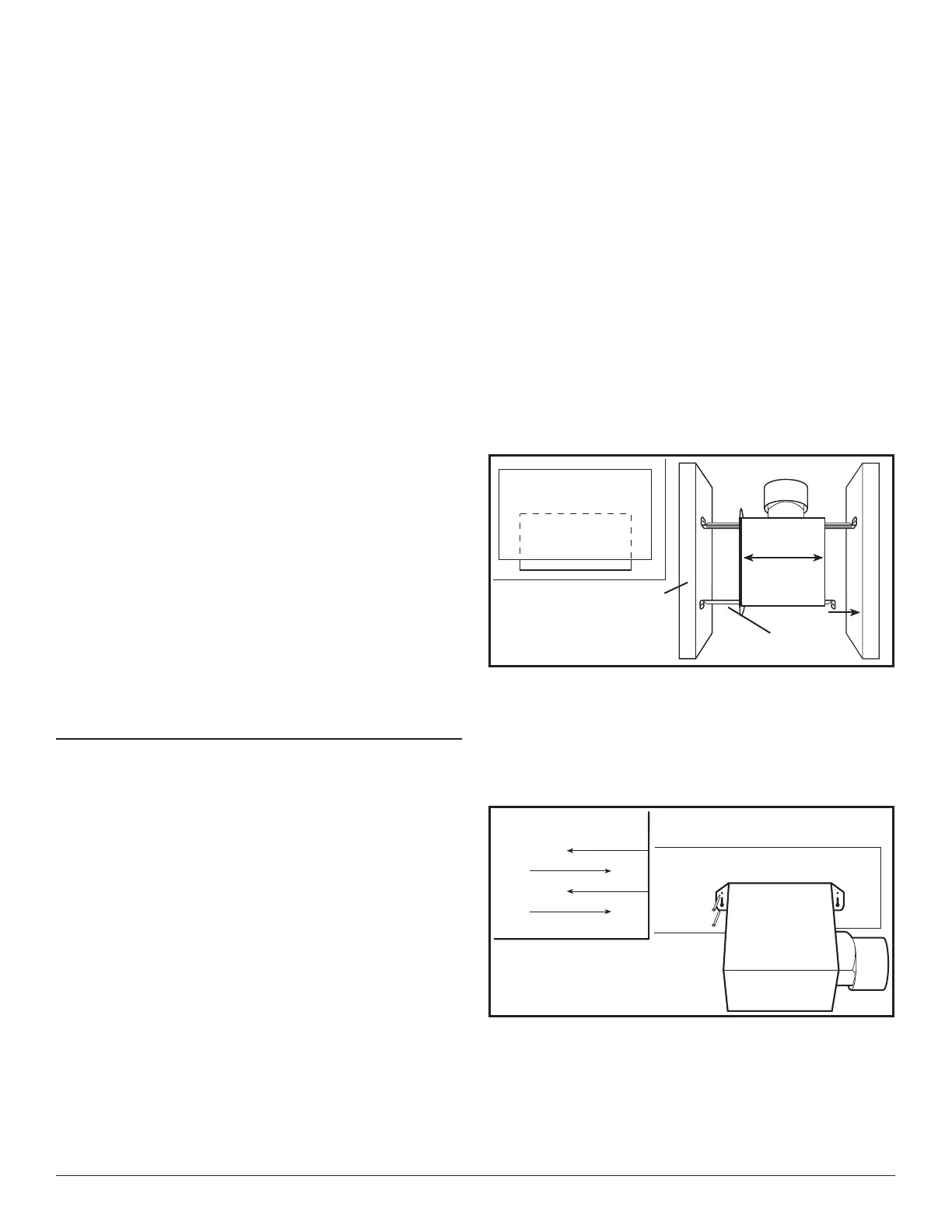

Figure 1
Joist
Housing
Hanger Bar
Figure 2
5
/
8
"
3
/
8
"
1
/
2
"
1
/
4
"
www.geelectrical.com
