7
Installation Instructions

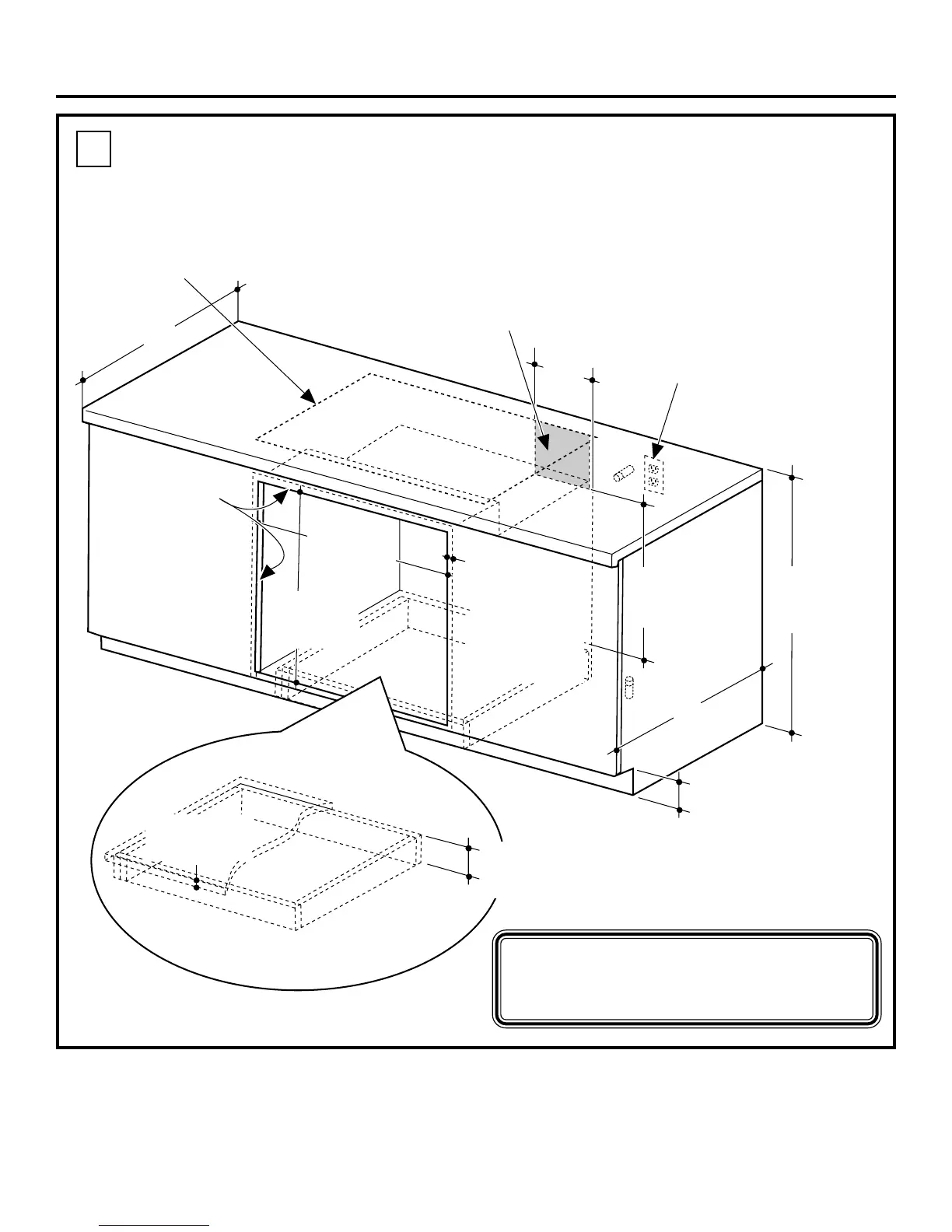

Cutout for 30″ (76.2 cm) Single Built-In Ovens only
Under Counter For JCTP30, JCTP70, PCT916, PCT920 models only.
NOTE: This oven is only approved to
be installed under the specific models
as labeled on this unit.
63.5 cm (25”)
24.1 cm
(9 1/2”)
Max.
61 cm (24”)
Gas and electrical connections
for gas cooktop must be located
in an adjacent accessible location
to the right.
91.4 cm (36”)
Typical
Countertop
Height
55.9 cm (22”)
Min. Above
Support
Platform
Top and/or side fillers
may be necessary
if unit is positioned
between existing
cabinets. Be sure
they are attached
securely, since they
will anchor the oven
in the cabinet.
Gas or electric cooktops may be installed over this
oven. See cooktop installation instructions for cutout
size. See label on top of oven for approved cooktop
models.
72.4 cm
(28 1/2”) Min.
72.7 cm
(28 5/8”) Max.
69.2 cm
(27 1/4”) Min.
69.4 cm
(27 5/16”) Max.
A
Allow 2.5 cm
(1”) overlap
top of oven,
1.8 cm (11/16”)
overlap side
edges of cutout
and 3.2 cm (1 1/4”)
overlap bottom
of cutout
10.2 cm (4”)
Typical
Toekick
Must
match
toekick
height
1.9 cm (3/4”)
Support Platform
Required
MUST SUPPORT 68 Kg (150 LBS.)
240V / 208V
Junction Box
Location (junction
box may be in
adjacent cabinet)
To Next Page
