10 31-2000354 Rev. 0
Flush Mount Installation Preparation

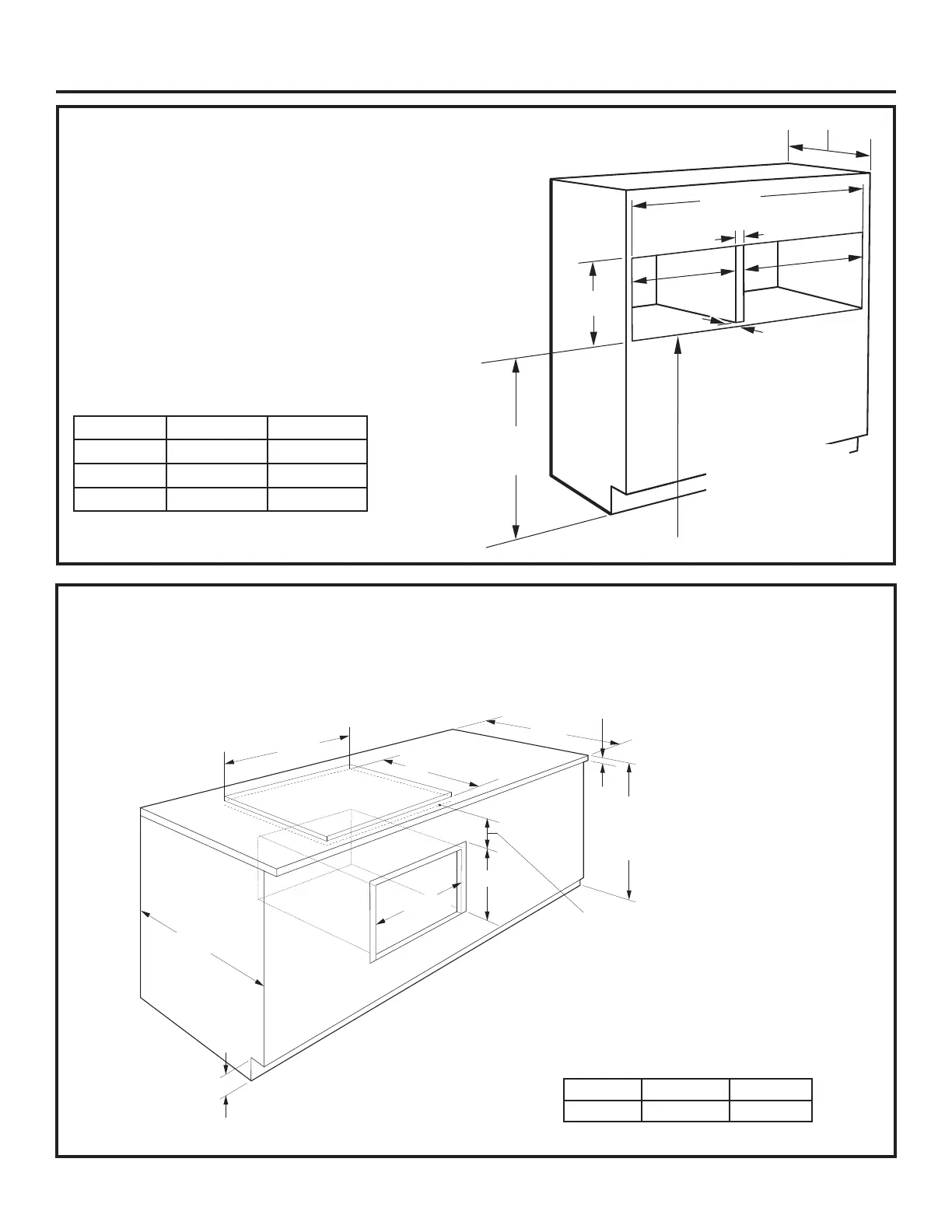

PREPARE THE OPENING
The Advantium Built-In Oven can be installed beside
another Advantium Built-In Oven in a side-by-side
combination.
Double Advantium Built-In Oven
Installation:
Cut the opening in a cabinet to the dimensions shown.
• Center divider acts as cleat for side of each respective
unit. Only one additional side cleat needed per oven
cutout.
• The support must be level and rigidly mounted, flush
with the bottom edge of the cutout.
Dimension 1/8” Reveal 1/4” Reveal
G 59-7/8” 60-1/4”
H 5-1/8” 5-1/4”
I 27-3/8” 27-1/2”
20 5/8”
Construct solid bottom
- Min. 3/8” plywood
supported on all four
sides. Must be able
to support weight of
oven and contents.
36-3/4”
Min.
I*
23-1/2” min.
I*
H*
G*
PREPARE THE OPENING
Installation under an Advantium 30Ǝ or 36Ǝ Cooktop or Countertop:
Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout size.
See the label on top of the oven for approved cooktop models. This oven requires a separate from the cooktop,
properly grounded 15-Amp, 120-Volt, 60Hz power supply. Use a 36Ǝ or wider base cabinet.
Cooktop
Cooktop
25Ǝ
1-1/2Ǝ Min.
4Ǝ High
Toekick
23-1/2
Ǝ
J*
20-5/8”
36
Ǝ
Countertop
Height
Cooktop height including
depth of electrical box
on some models. Refer
to cooktop installation
instructions.
No minimum clearance
required between cooktop
and oven.
*1/8” reveals on
sides and top
Dimension 1/8” Reveal 1/4” Reveal
J 30” 30-1/4”
*See table for desired reveals on sides.
1 1/4”
To Next Page
