Installation Preparation
PREPARE THE OPENING (cont.)
The Advantium Built-In Oven can be installed in combination with other GE Appliances/Monogram appliances.
Always follow each product’s Installation Instructions to complete the installation.
Single Advantium Built-In Oven Installation:

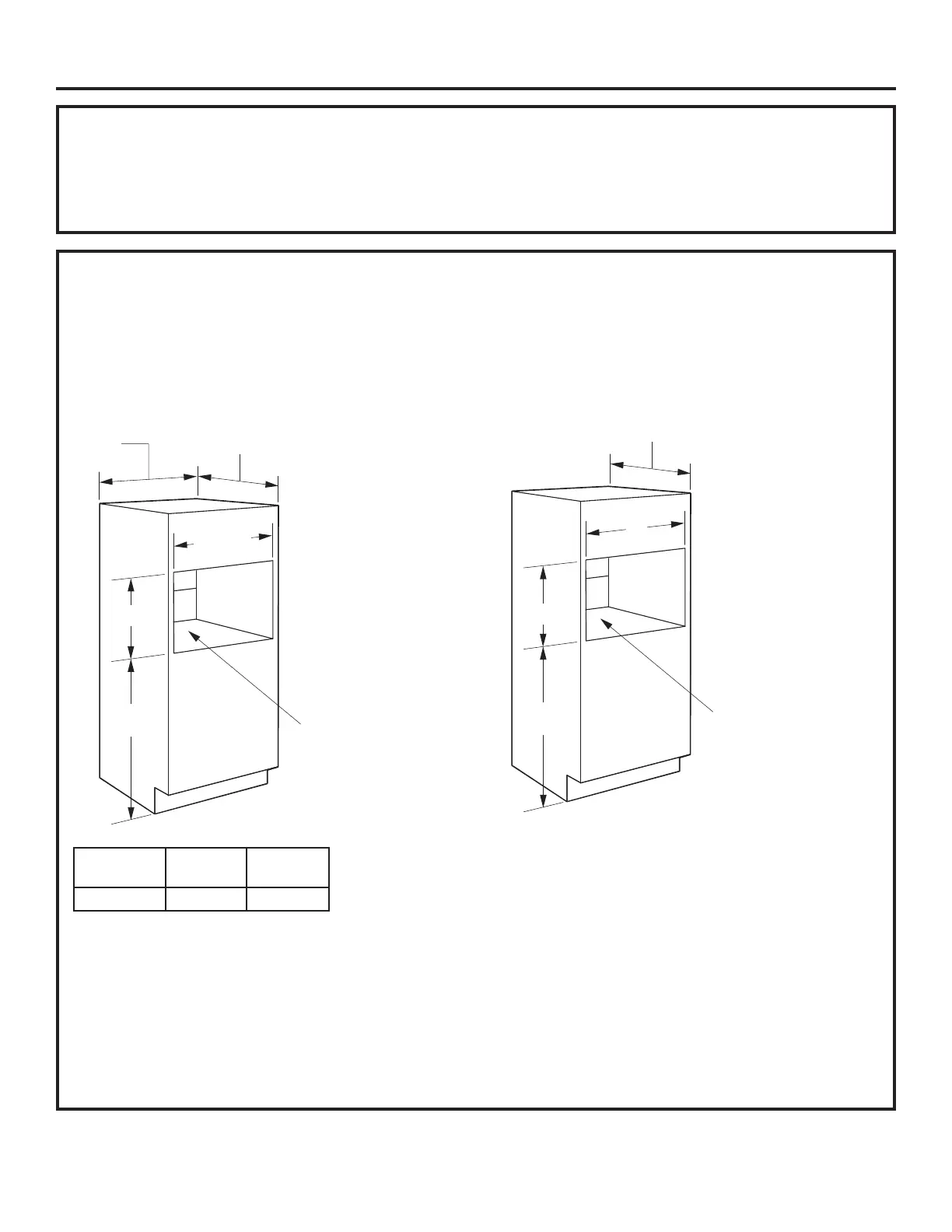

Order a 30Ǝ wide single oven cabinet or cut the opening in a wall to the dimensions shown.
STANDARD MOUNT:
30Ǝ
23-1/2Ǝ
25-1/4Ǝ
Min.
21Ǝ
36-3/4Ǝ
Min.
Construct
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
FLUSH MOUNT:
23-1/2Ǝ
K*
24Ǝ
36-3/4Ǝ
Min.
Construct
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
• Allow 2-1/8Ǝ case trim overlap on the sides, 2 1/4Ǝ
overlap on the top and 1Ǝ overlap on the bottom of the
opening for all models.
• Oven overlaps will conceal cut edges on all sides of
the opening.
• When installed over a single oven or a warming
drawer, allow at least 2Ǝ between the two openings.
This separation will provide clearance for bottom
overlap of the Advantium Built-In Oven and the other
appliance overlaps.
• The support must be level and rigidly mounted, flush
with the bottom edge of the cutout.
Preparation with an Accessory Storage Drawer
As needed, see the Standard Mount Installation Preparation OR Flush Mount Installation Preparation for
configuration details. Note the modified cutout height below.
Dimension 1/8”
Reveal
1/4”
Reveal
K 30” 30-1/4”
