GE Café series Owner's Manual And Installation Instructions

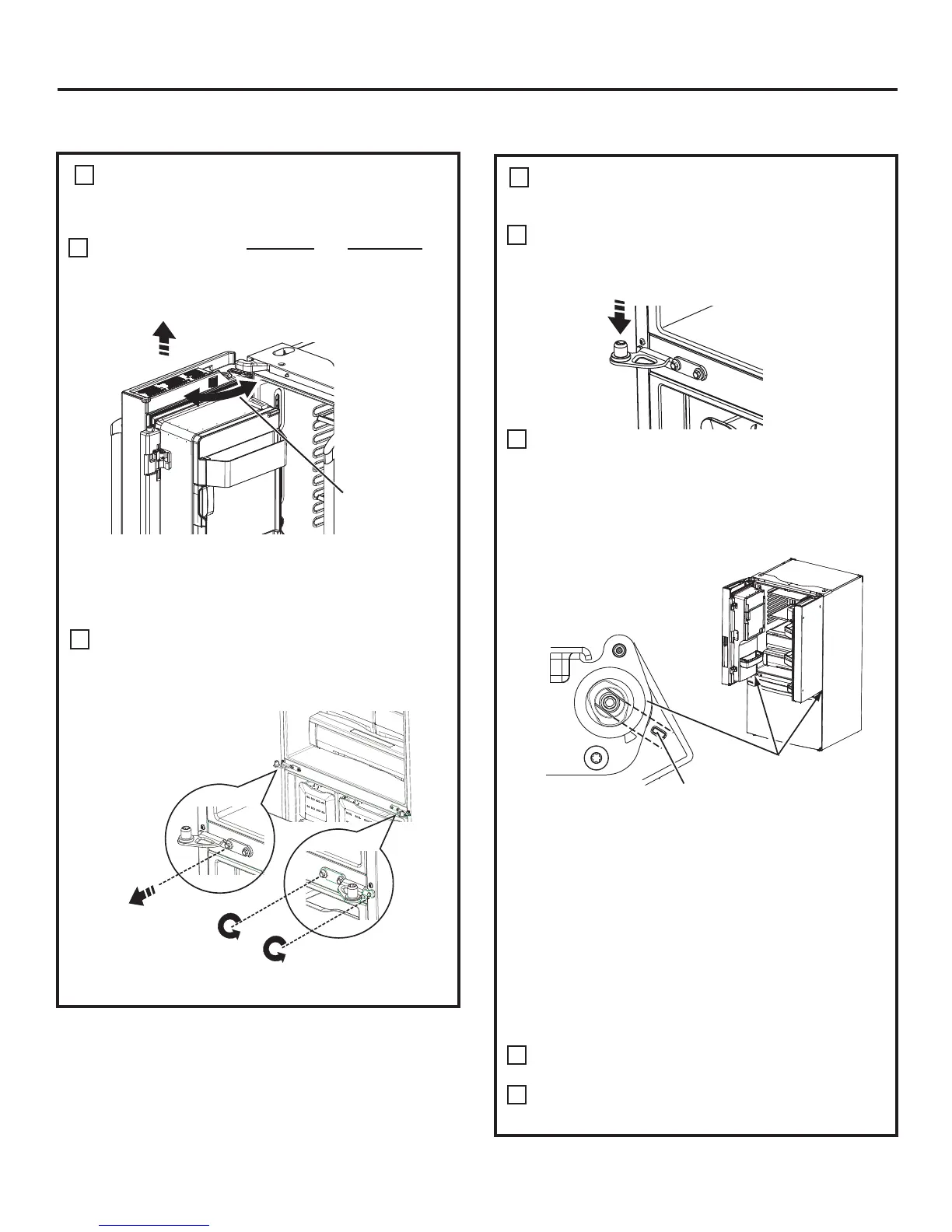

REINSTALLING THE REFRIGERATOR DOORS
Reverse steps 1 through 4 to reinstall refrigerator, follow
details below for critical alignments.
Reinstall center hinge first and torque the screws to 65
in-lbs. With the LH door at 90º to the front of
the case, lower the refrigerator door onto the center hinge.
Ensure that the door and hinge align correctly.
Rotate doors closed and make sure moveable center sealing
portion of the door aligns with the striker. If the door will not
self-close after reinstalling, remove door, turn door upside down,
check alignment mark and arrow; (there is an alignment mark
on the door closure mechanism It corresponds to an alignment
mark on the bottom end cap. Rotate door closure mechanism
to align mark and arrow, reinstall door).
Securely tape the door shut with masking tape or have a
second person support the door. Reinstall the top hinge
and torque the screws to 65 in-lbs.
Be sure to reinstall the ground wire and strain relief to the top
hinge.
Reinstall the hinge cover. Note: Ensure wires are not pinched or
under screw bosses before tightening screws.
REMOVE THE REFRIGERATOR DOORS (cont)
Note: for proper installation later, please follow the next step
carefully.
Fresh Food doors to be REMOVED and INSTALLED
opened at 90° with case front.
REMOVE OPPOSITE DOOR
Follow the same procedure on the opposite
door. There are no wires or water lines on the opposite
side
REMOVE CENTER HINGE (if necessary)
Remove the 3/8ļscrews securing the center hinge to the
cabinet. Use T20 driver to remove outboard screw
27
F
Lift up & off
center hinge
Open Door to
90°
4
Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
A
5
B
Loosen Outer screws
Remove
center screw
C
align marks
Underside of Fresh Food Door
If door cannot be installed at 90° follow steps below:
1. If space or model limits opening door to less than 180°, then:
a) Remove door, carefully turn door upside down.
b) Check alignment of door closure mechanism shaft on
underside of door. The flats on the shaft should
correspond to alignment tab on plastic ring or mark
on bottom end cap.
c) If shaft is not aligned to tab/mark, using 5/32” Allen
wrench, rotate door closure mechanism shaft
counterclockwise for right door and clockwise for left
door. Then align flat with tab/mark.
d) Install the door at 90°.
D
3

GE Café series Specifications

General

Brand	GE
Category	Refrigerator
Capacity	Varies by model
Ice Maker	Yes
Height	Varies by model
Width	Varies by model
Depth	Varies by model
Total Capacity	Varies by model
Refrigerator Capacity	Varies by model
Freezer Capacity	Varies by model
Adjustable Shelves	Yes
Finish	Stainless Steel
Energy Star Certified	Yes
Water Dispenser	Yes
Smart Capabilities	Yes
Counter Depth	Yes
Door Style	French door
Water Dispenser Type	Internal
Door Alarm	Yes
Color Options	Stainless Steel, Matte White, Matte Black
Series	Café
Style	French Door
Configuration	French Door
