GE Café series Installation Instructions

Installation Instructions
INSTALLING THE REFRIGERATOR
REFRIGERATOR LOCATION
 'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKHWHPSHUDWXUHZLOO
go below 60°F (16°C) because it will not run often enough
to maintain proper temperatures.
 'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKHWHPSHUDWXUHZLOO
go above 100°F (37°C) because it will not perform properly.
 ,QVWDOOLWRQDIORRUVWURQJHQRXJKWRVXSSRUWLWIXOO\ORDGHG
CLEARANCES
Allow the following clearances for ease of installation, proper
air circulation and plumbing and electrical connections.
Sides 1/8” (3 mm)
Top 1” (25 mm) Cabinet/Hinge Cover
Back 2” (50 mm)
REMOVING THE REFRIGERATOR DOORS
IMPORTANT NOTE: This refrigerator is 36
1
/4” deep (31
1
/4”
for CYE models). Doors and passageways leading to the
installation location must be at least 36
1
/4” wide in order to
leave the doors and handles attached to the refrigerator
while transporting it into the installation location. If
passageways are less than 36
1
/4”, the refrigerator doors and
handles can easily be scratched and damaged. The top cap
and doors can be removed to allow the refrigerator to be
safely moved indoors. If passageways are less than 31
1
/4”,
start with Step 1.
,ILWLVQRWQHFHVVDU\WRUHPRYHGRRUVVNLSWR6WHS/HDYH
tape and all packaging on doors until the refrigerator is in the
final location.
NOTE: Use a padded hand truck to move this refrigerator.
Place the refrigerator on the hand truck with a side against
the truck. We strongly recommend that TWO PEOPLE move
and complete this installation.

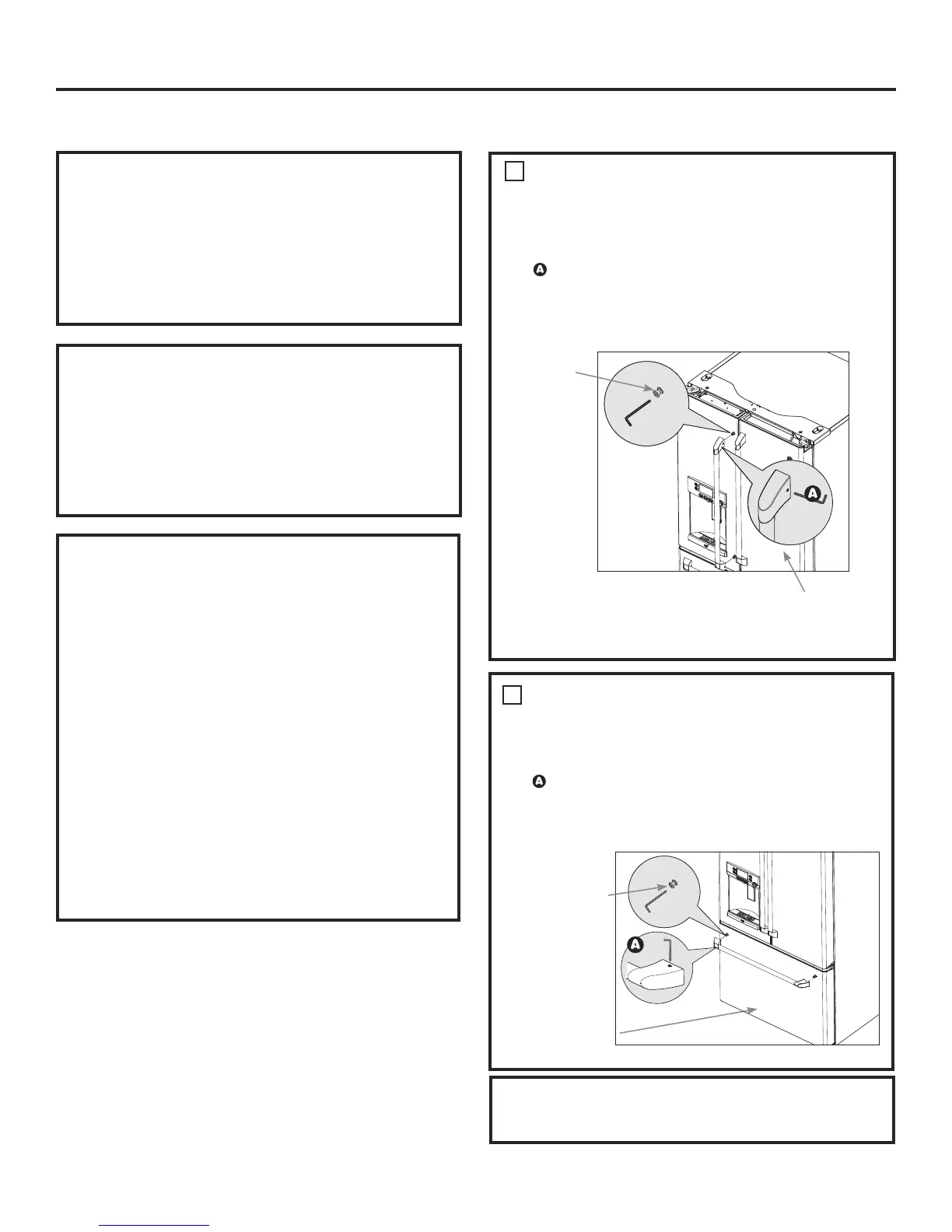

REMOVE THE FRESH FOOD
DOOR HANDLE
Handle Design varies based on models, however
Installation is same.
Stainless steel and plastic handles:
Loosen the set screws with the 1/8” Allen wrench and
remove the handle.
NOTE: If the handle mounting fasteners need to be tightened or
removed, use a 1/4” Allen wrench.
1
REMOVE THE FREEZER DOOR HANDLE
Handle Design varies based on models, however
Installation is same.
Stainless steel and plastic handles:
Loosen the set screws with the 1/8” Allen wrench and remove the
handle.
NOTE: If the handle mounting fasteners need to be tightened or
removed, use a 1/4” Allen wrench.
2
Mounting
Fasteners
Leave film
on until after
installation
Mounting
Fasteners
Leave film
on until after
installation
Reinstall the handles using the same
procedure as removing.
23
