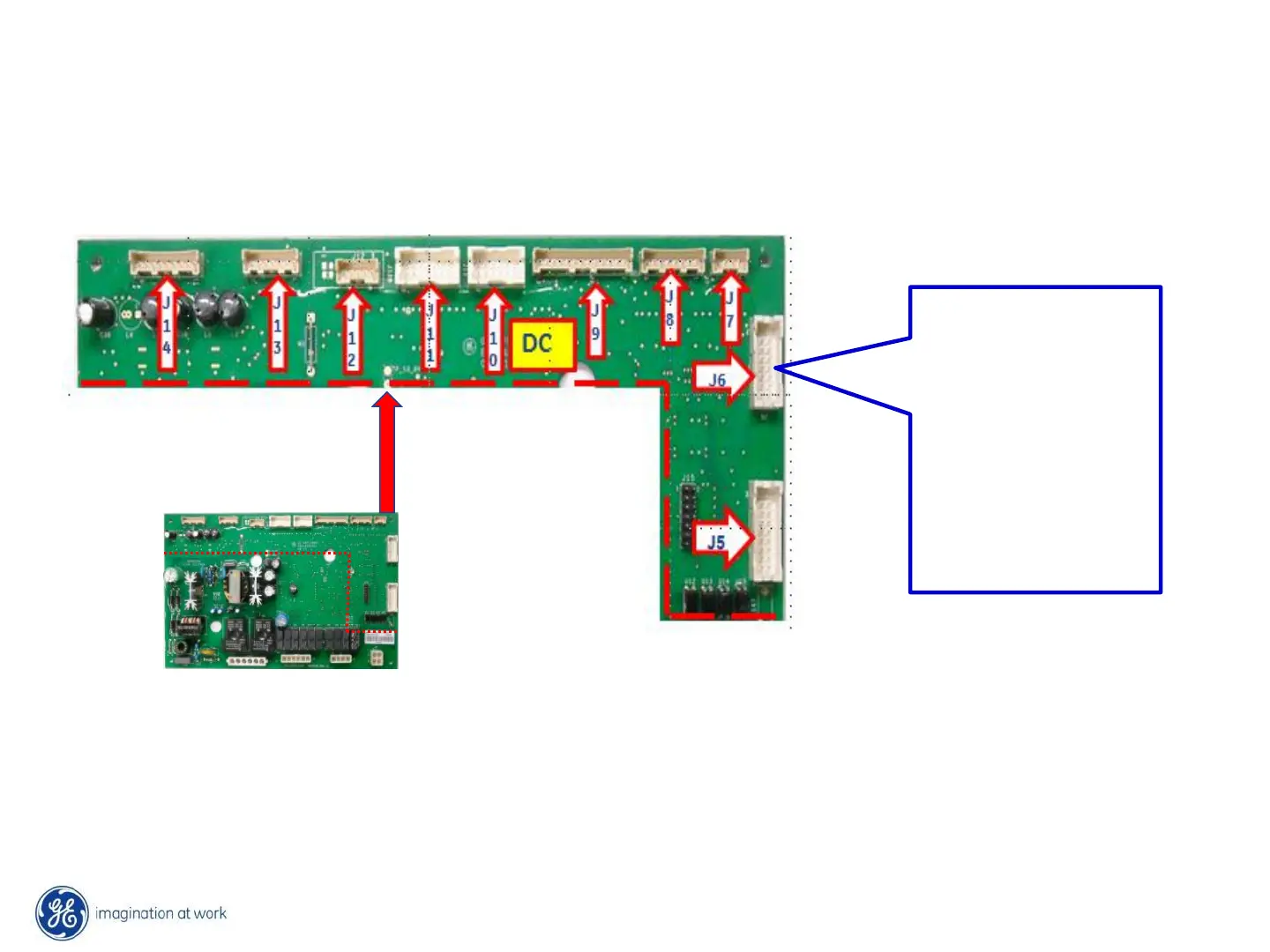

Main Control Board Deli Connector
J6
PIN 1 – DELI FAN 12VDC +
PIN 2 – FF FAN 12VDC +
PIN 3 – DELI FAN 12VDC –
PIN 4 – FF FAN 12 VDC –
PIN 5 – DELI FAN RPM
PIN 6 – FF FAN RPM
PIN 7 – DELI FAN PWM
PIN 8 – FF FAN PWM
PIN 9 - DELI DAMPER
PIN 10 – DELI DAMPER
PIN 11 - DELI DAMPER
PIN 12 – DELI DAMPER
