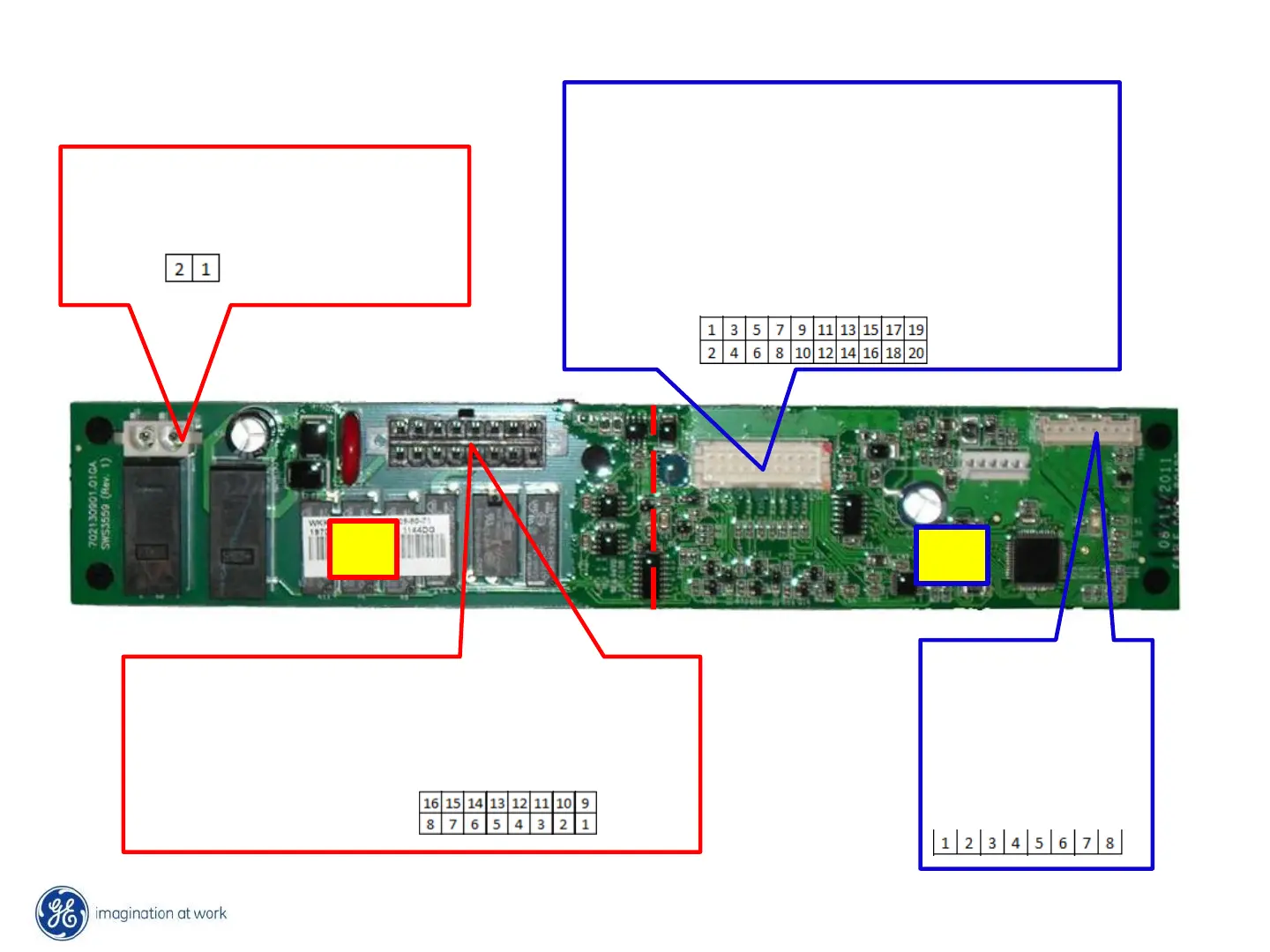

Door Control Board
DC
AC
J8
Hot Water Tank Heater Connector
PIN 1 – L1 120 VAC POWER SUPPLY
PIN 2 - 120 VAC to HOT WATER TANK HEATER
J3
PIN 1 - ICE BOX GASKET HTR
PIN 3 – FZ LED –
PIN 4 – ART. MULLION
PIN 5 - FZ LED +
PIN 6 – IM FEELER ARM SENSOR
PIN 7 - DUCT DOOR MTR +
PIN 8 – FLOW METER
PIN 9 – RECESS HTR
PIN 10 – HOT WTR FLOAT SWITCH
PIN 11 – IM EJECTOR RAKE SENSOR
PIN 12 – PADDLE SWITCH
PIN 13 – IM FILL TUBE HTR
PIN 14 – IM SENSOR GROUND
PIN 15 – DUCT DOOR MTR –
PIN 16 – USER INTERFACE
PIN 17 - 12VDC SUPPLY +
PIN 18 – GEABUS (COMMUNICATION)
PIN 19 – FLOW METER 5VDC
PIN 20 – BOARD GOUND 12VDC –
J5
PIN 1 – IM THERMISTOR
PIN 2 – 5VDC
PIN 3 – ICE BOX THERM
PIN 4 – 5VDC
PIN 5 – HOT WATER THERM 1
PIN 6 – 5VDC
PIN 7 - HOT WATER THERM 2
PIN 8 – HOT WATER LED
J4
PIN 1 – L1 A/C POWER SUPPLY
PIN 2 – IM RAKE MOTOR
PIN 3 – IM WATER VALVE
PIN 4 – SWITCHED L1 AUGER INPUT
PIN 5 – HOT WATER VALVE
PIN 6 – AUGER MOTOR 120 VDC
PIN 7 – CHILLED WATER VALVE
PIN 8 – AUGER MOTOR 120 VDC
PIN 9 - IM MOLD HEATER
PIN 16 – A/C NEUTRAL
