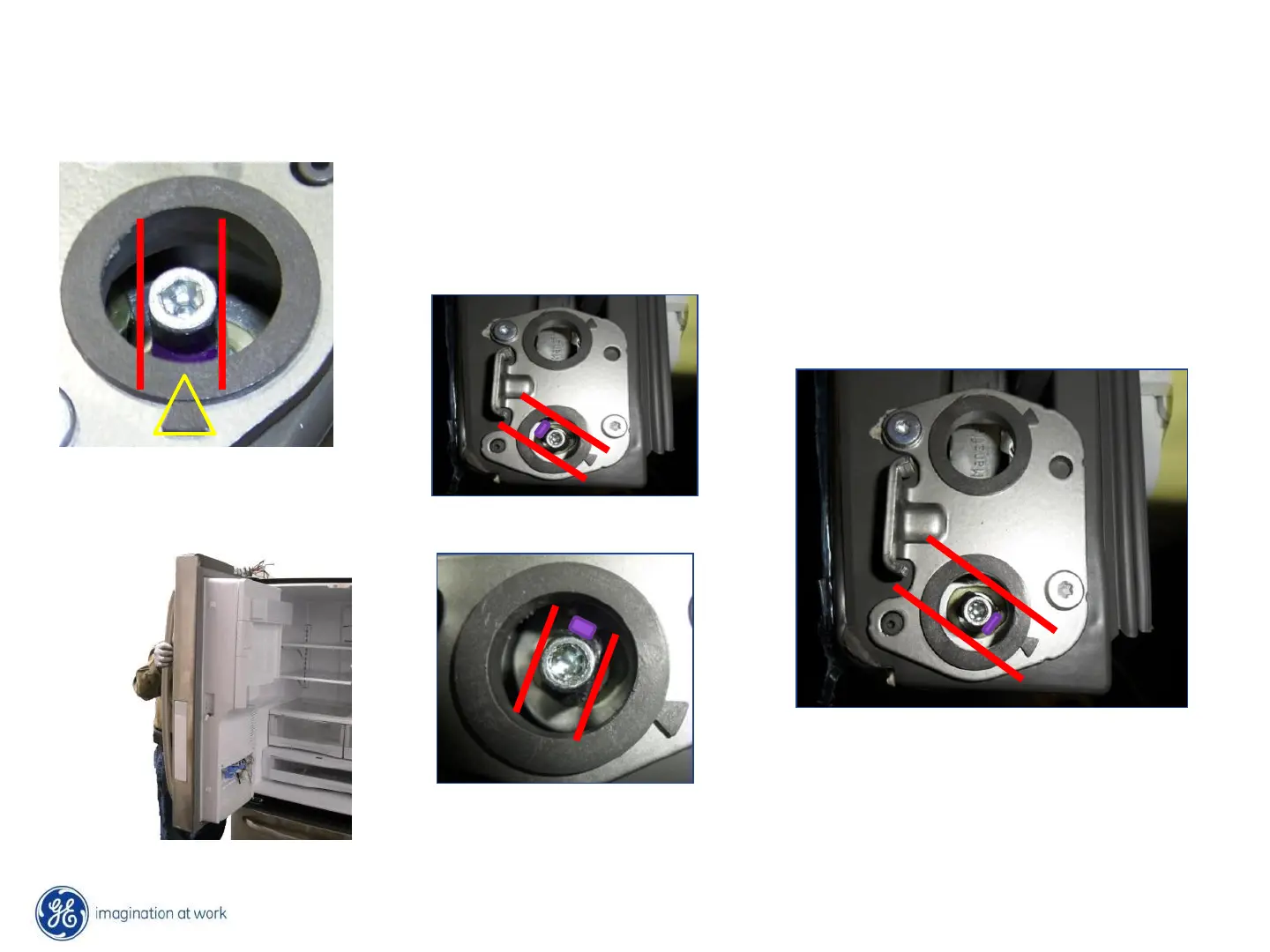

Door Closer Alignment for Reinstallation
• Use a 5/32” Allen key or ¼” nutdriver (could be either) to align
lower hinge pin properly on the door.
• Align the parallel surfaces of the hinge pin with the arrow on the
hinge bushing making sure the purple mark is facing the arrow.
• With the pin set properly in this location the door can now be
remounted on the case hinge with the door 90˚ to the cabinet.
CORRECT
Orientation of purple mark
with arrow
INCORRECT
Note: Turn the closer pin on the right door counterclockwise and the one on the left door clockwise.
INCORRECT
