GE CGS980SEMSS - 30" Gas Range - Gas Pipe and Electrical Outlet Locations

60 pages

To Next Page

To Previous Page

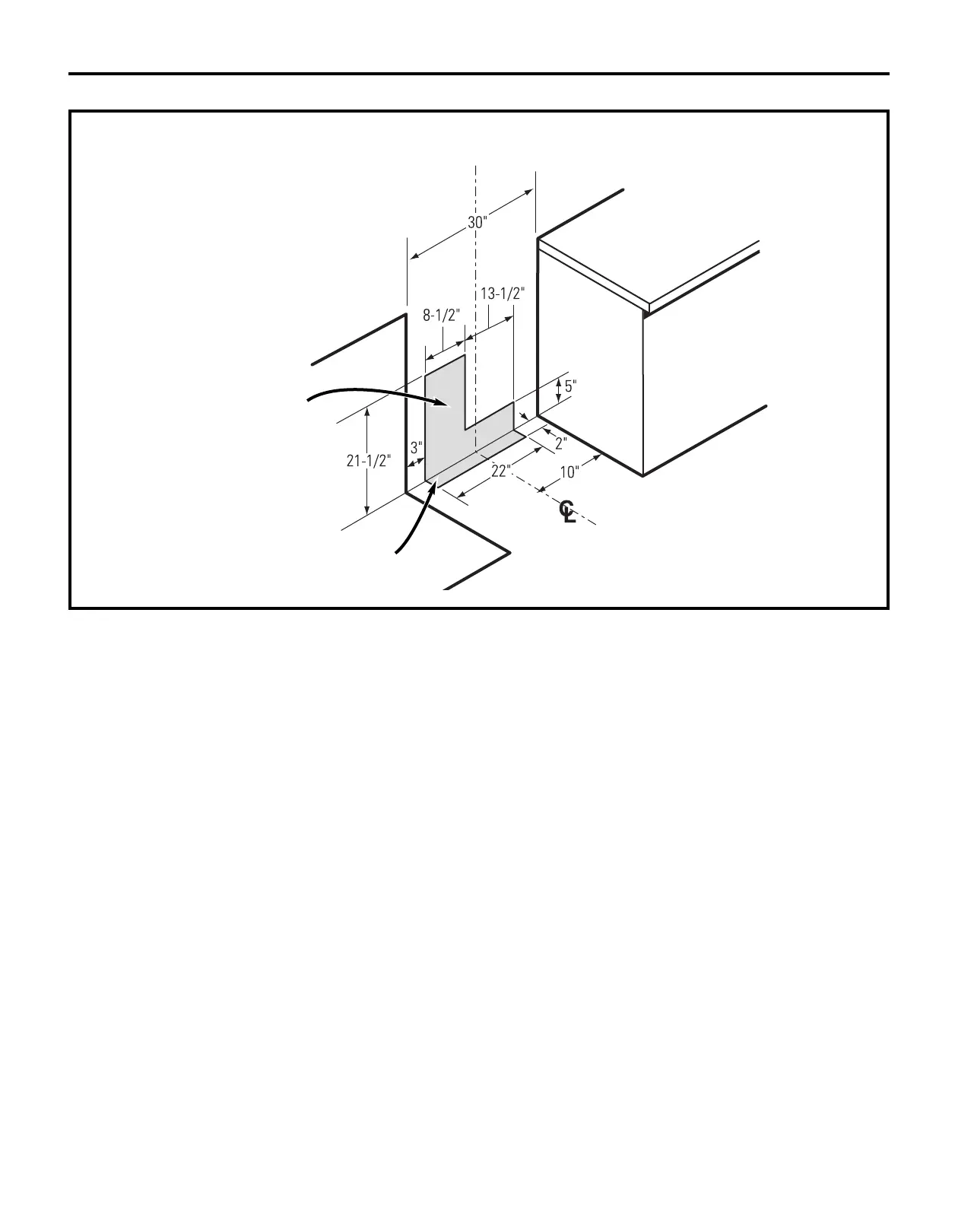

Installation Instructions

Recommended area for 120V

outlet on rear wall and area for

through-the-wall connection

of pipe stub and shut-off valve.

Recommended area for through-the-floor

connection of pipe stub and shut-off valve.

GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
