– 57 –
(Continued next page)

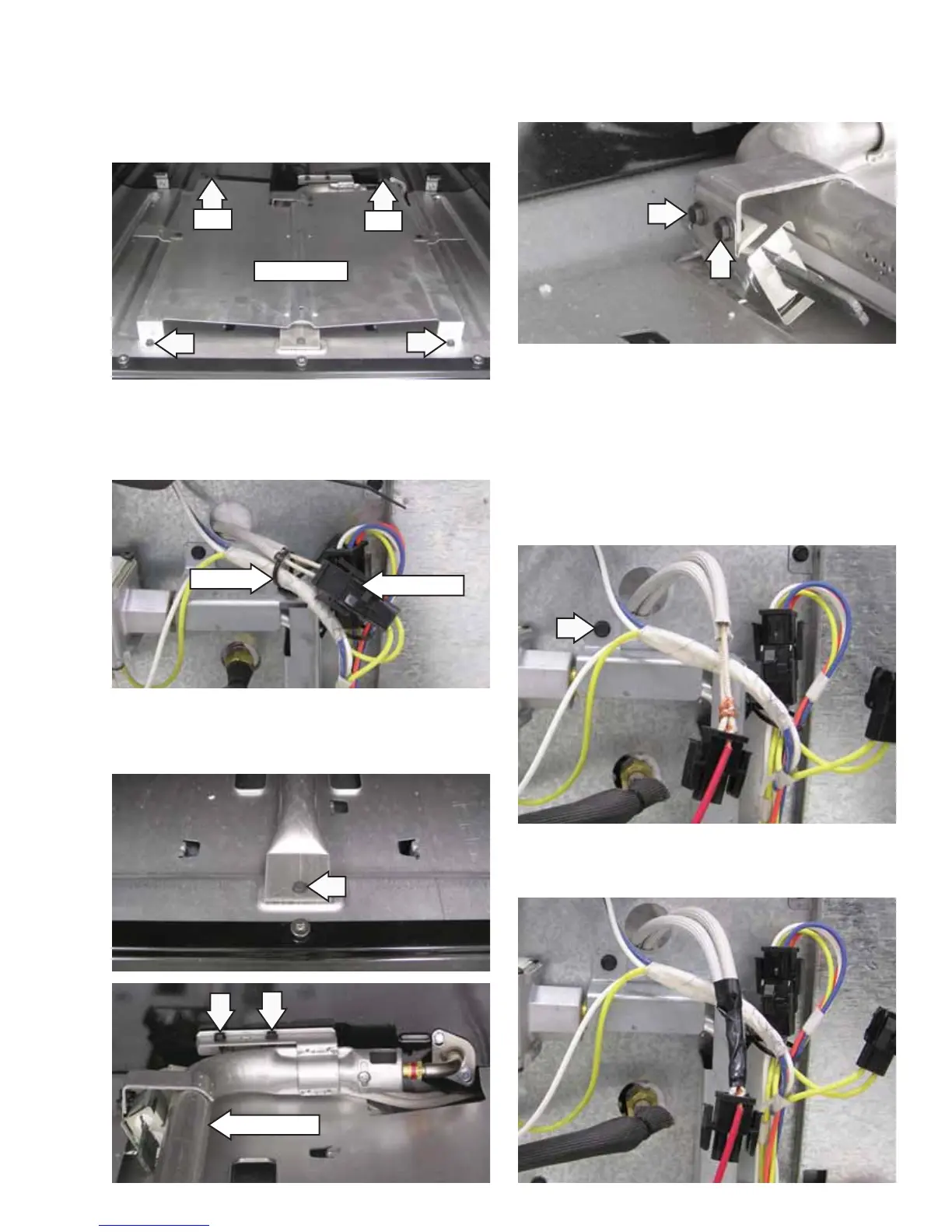

6. Disconnect the bake igniter wire harness.
7. Remove the wire tie.
5. Remove the two 1/4-in. hex-head screws that
attach the burner baffl e to the burner box.
Note: When installing the burner baffl e, make sure
the 2 tabs are secured in the rear oven cavity wall.
Tab
Tab
Burner Baffl e
8. Remove the three 1/4-in. hex-head screws that
attach the burner to the burner box.
Disconnect
Wire Tie
9. Remove the two 1/4-in. hex-head screws that
attach the bake igniter to the side of the burner
and remove the burner from the oven cavity.
10. Remove the top 1/4-in. hex-head screw from the
gas inlet tube shield.
11. Strip 2 inches of insulation off a length of
stranded wire (at least 18 inches).
12. Route the stripped end of the wire thru the
igniter connector opening and twist it around
the igniter wires.
13. Tape the stranded and igniter wires together to
act as a retrieval wire.
Bake Burner
To Next Page
