GE MEDICAL SYSTEMS CT PROSPEED SERIES INSTALLATION
2124011
3-38
REV 15
NOISE
FILTER
VIDEO AMP
POWER CABLE
GND POINT
100V AC POINT
DC
POWER SUPPLY
BREAKER
FUSE HOLDER
BNC CONNECT OR
BRN LBLU
CONDUIT
BRACKET
GND
CABLE
VIDEO
CABLE
CONTROL
CABLE
GND CABLE
GROUND POINT
POWER
CABLE
REAR SIDE
INSIDE OF DC III (T OP VIEW)

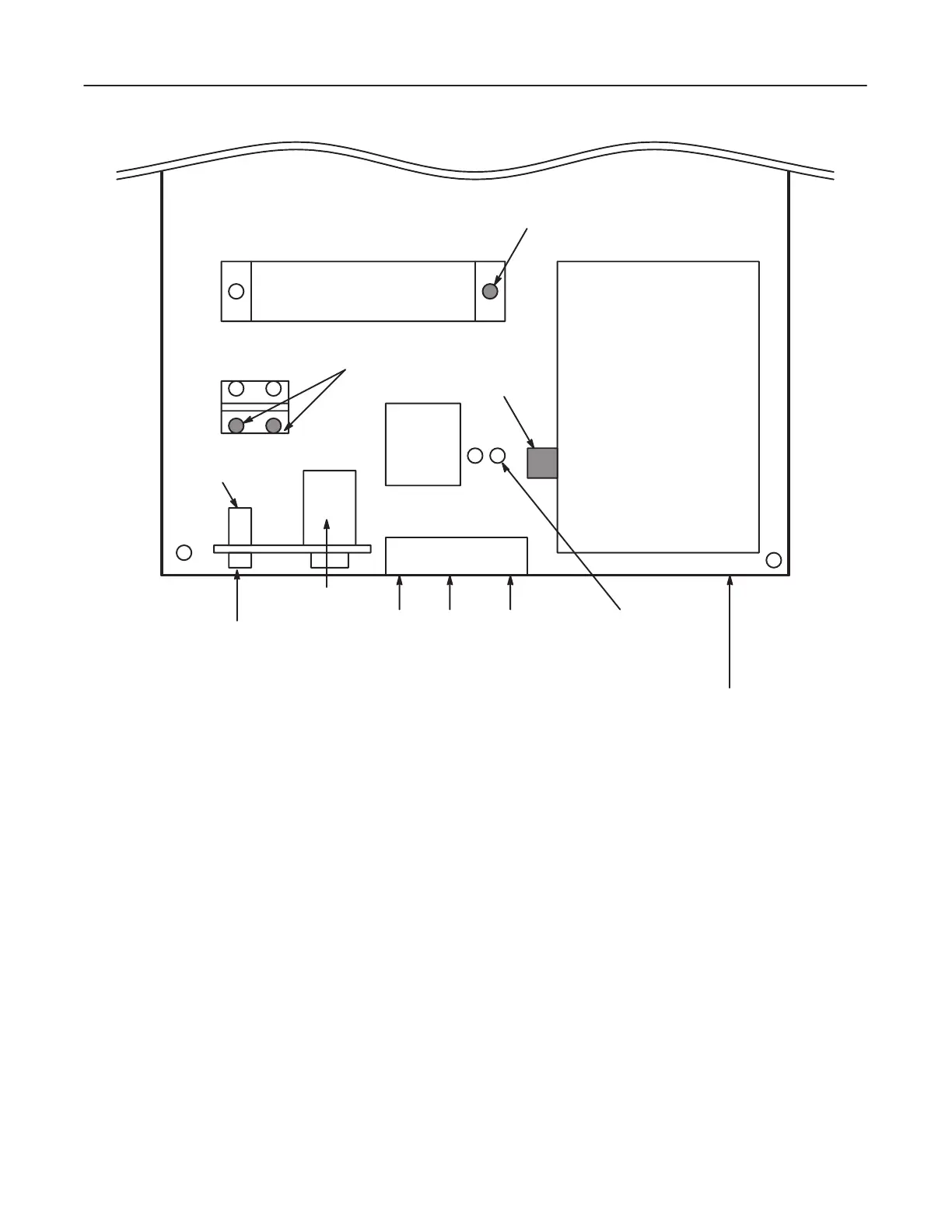

ILLUSTRA TION 3–27
6. Cover replacement
a. Switch ON DC III breaker.
b. Install the DC III Rear cover.
c. Switch ON the OC breakers.
d. Install the OC front, rear and top covers.
