GE DCVH515 - Gas Valve Coil Assembly; LP Conversion

– 36 –

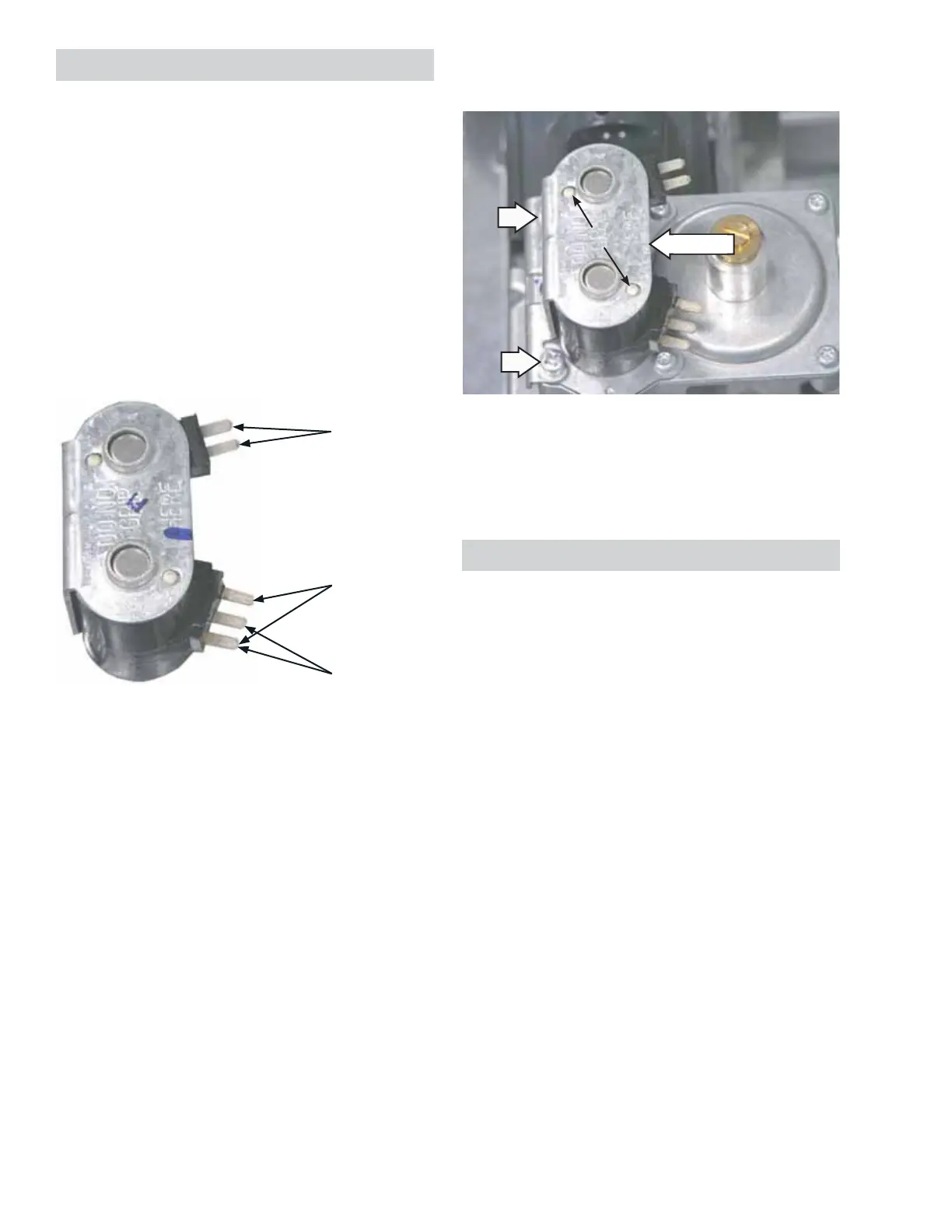

Gas Valve Coil Assembly
The gas valve coil assembly is located on top of
the gas valve in front of the combustion chamber
opening. The assembly consists of a double coil
(saftey and booster coils combined) and a single
main coil. The coil assemblies can be replaced
separately.
Gas valve coil assembly resistance values:
Saftey coil terminals - 1350 Ω
Booster coil terminals - 550 Ω
Main coil terminals - 1300 Ω
•
•
•
Main Coil
Booster Coil
Safety Coil
To remove the coils:
Remove the top, control, and front panels. (See
Top Panel, Control Panel and Front Panel.)
Remove the drum. (See
Drum.)
Disconnect the wire harness from both coils.
1.
2.
3.
(Continued Next Page)
Bracket
Locator Pins
Lift the bracket vertically. Lift coils to remove.
Note: Upon reassembly, ensure the locator pins are
inserted into the holes provided in the coil bracket.
5.
LP Conversion
The gas dryer comes equipped for natural gas.
The dryer can be converted to LP gas by using
the conversion kit WE25X217. Should you need to
convert an LP dryer back to natural gas and the
original parts are missing, a WE25X218 kit contains
all the parts required to convert back to natural gas.
Remove the 2 Phillips-head screws that attach
the coil bracket to the valve body.
4.
