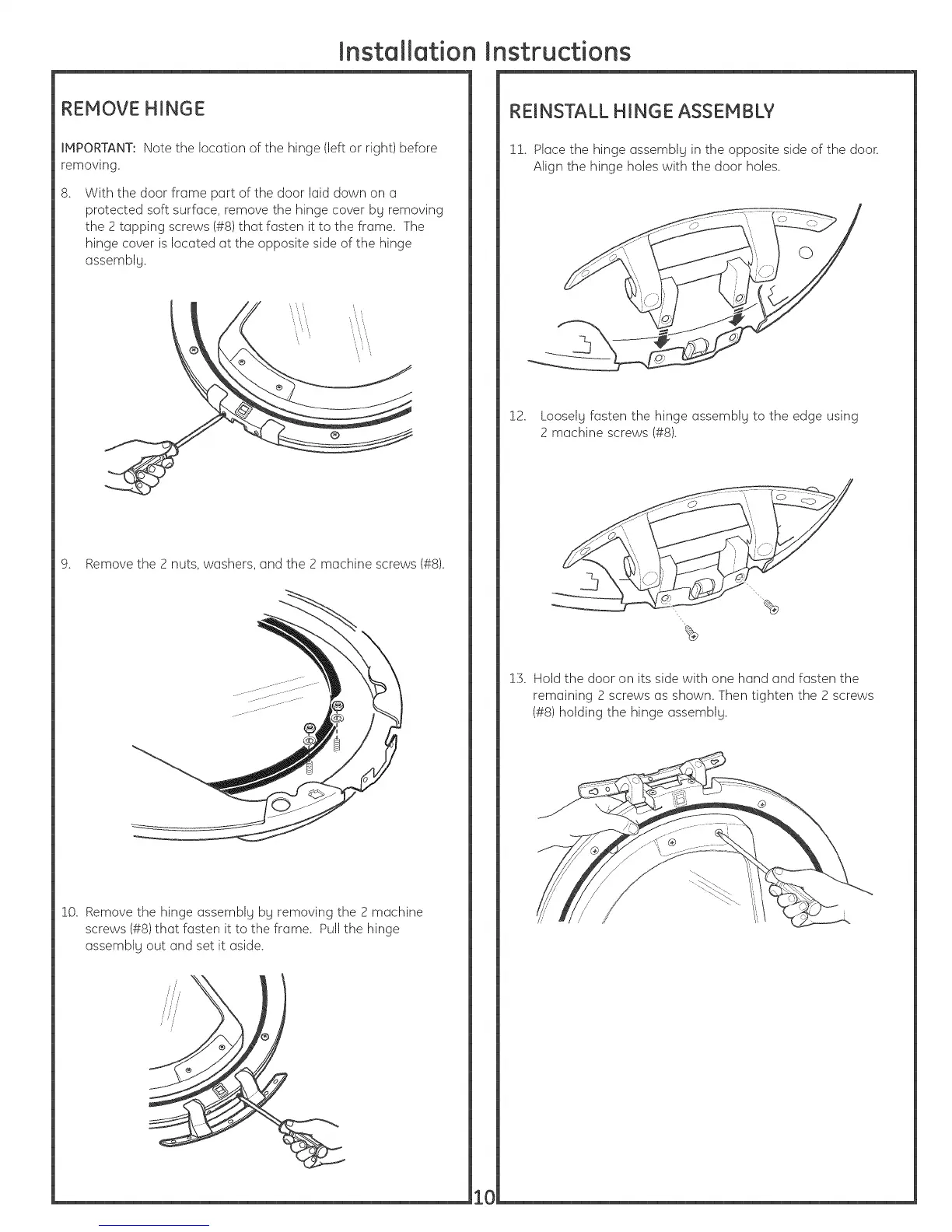

Installation Instructions
REMOVE HINGE
IMPORTANT: Note the location of the hinge (left or right) before
removing.
8_
With the door frame part of the door laid down on a
protected soft surface, remove the hinge cover bg removing
the 2 tapping screws (#8) that fasten it to the frame. The
hinge cover is located at the opposite side of the hinge
assemblg_
cj. Remove the 2 nuts, washers, and the 2 machine screws (#8).
10. Remove the hinge assemblg bg removing the 2 machine
screws (#8) that fasten it to the frame. Pull the hinge
assemblg out and set it aside.
REINSTALL HINGE ASSEMBLY
11. Place the hinge assemblg in the opposite side of the door.
Align the hinge holes with the door holes.
12. Looselg fasten the hinge assemblg to the edge using
2 machine screws (#8).
%
l& Hold the door on its side with one hand and fasten the
remaining 2 screws as shown. Then tighten the 2 screws
(#8) holding the hinge assemblg.
1(]
