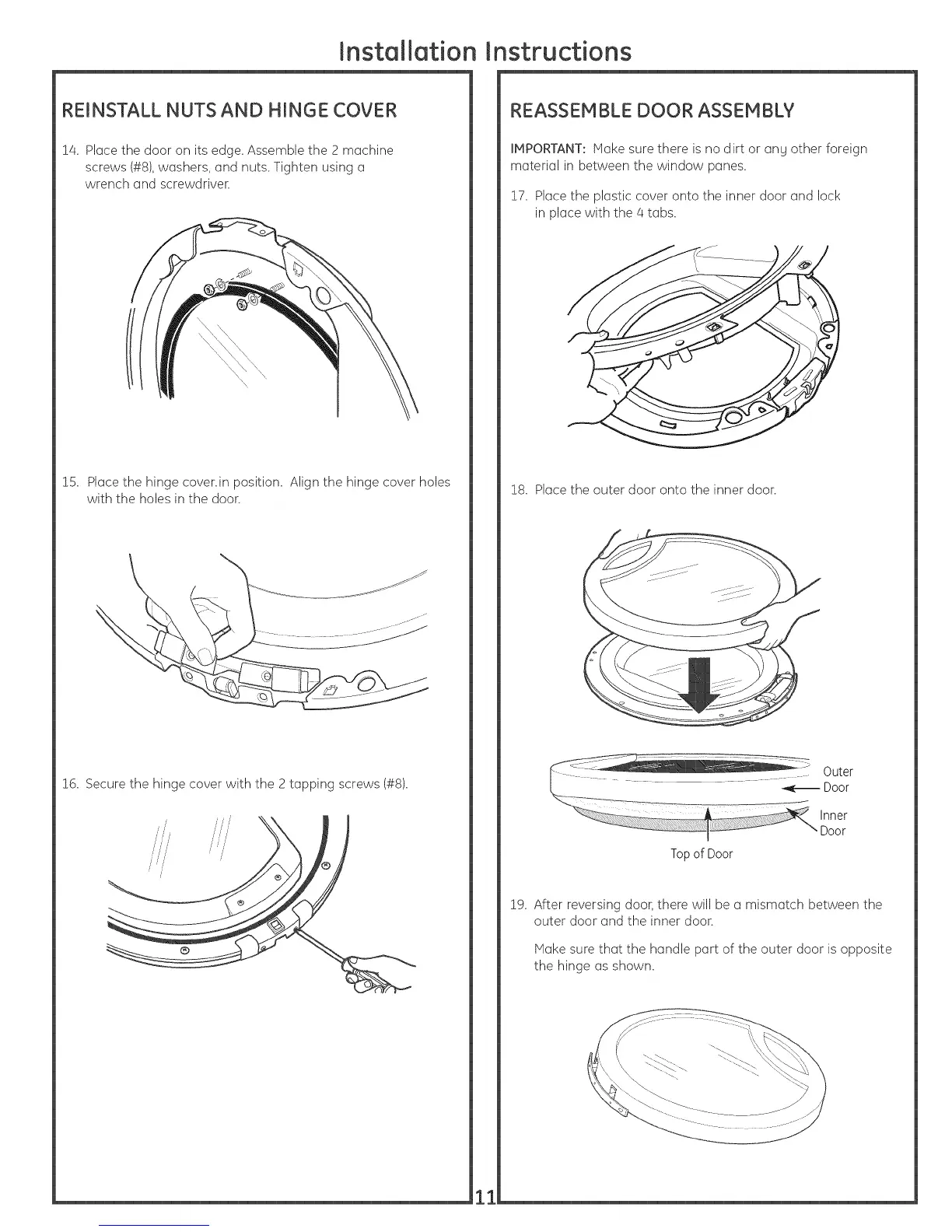

Installation Instructions
REINSTALL NUTS AND HINGE COVER
14. Place the door on its edge. Assemble the 2 machine
screws (#8),washers, and nuts. Tighten using a
wrench and screwdriver.
\
1E Place the hinge cover.in position. Align the hinge cover holes
with the holes in the door.
l& Secure the hinge cover with the 2 tapping screws (#8).
// • /
/ :
®
REASSEMBLE DOOR ASSEMBLY
IMPORTANT: Make sure there is no dirt or ang other foreign
material in between the window panes.
17. Place the plastic cover onto the inner door and lock
in place with the 4 tabs.
18. Place the outer door onto the inner door.
Topof Door
19. After reversing door, there will be a mismatch between the
outer door and the inner door.
Make sure that the handle part of the outer door is opposite
the hinge as shown.
11
To Next Page
