6. Connection to MV Couplers

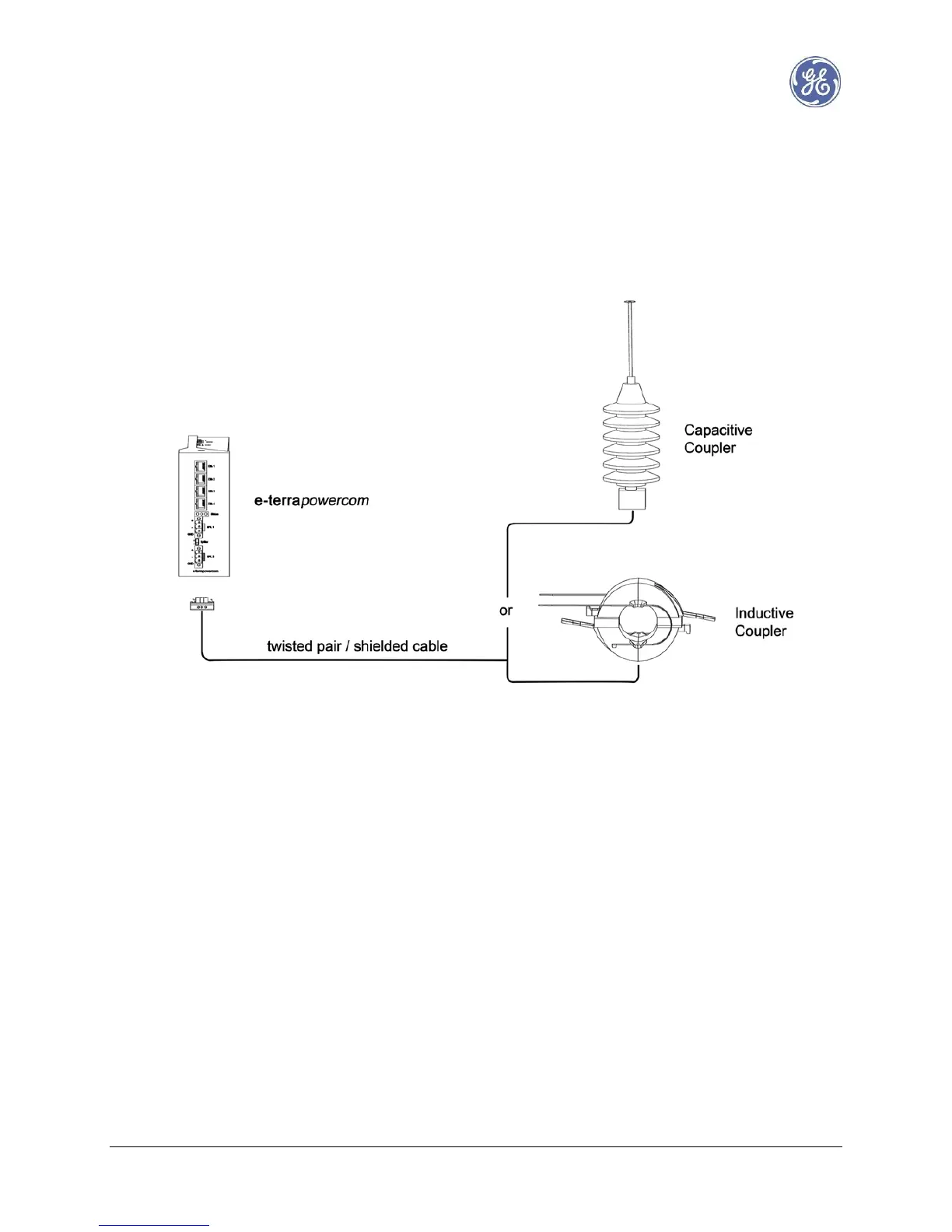

In a usual installation, one coupler is attached to the e-terrapowercom BPL modem, using the proper
connector and a shielded twisted pair. The coupler can be capacitive or inductive (please refer to the Coupler’s
manual)
The maximum recommended length for the twisted pair is 10 meters.
