7. LEDs status

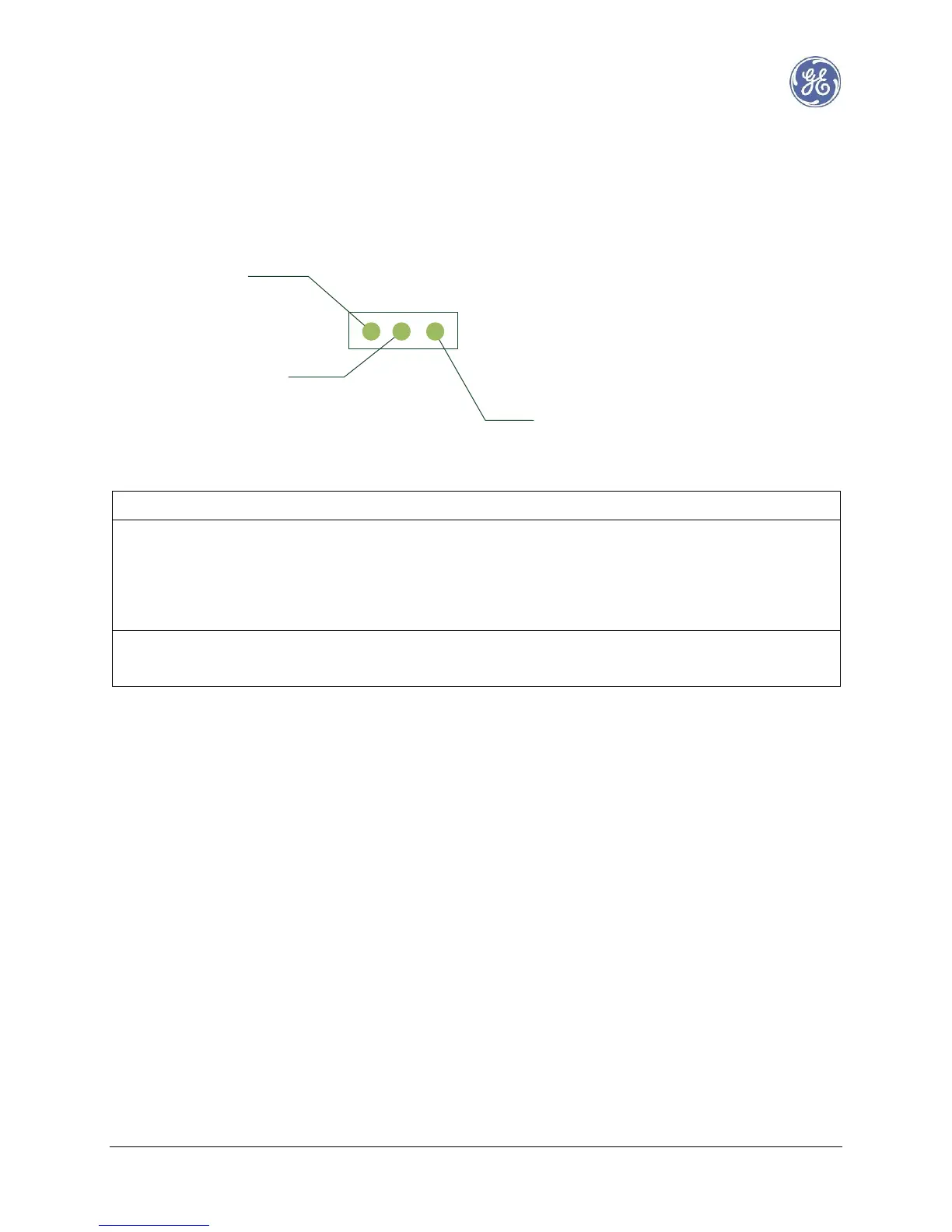

On the front panel, 3 LEDs display the following information
Serial Tx
Activity
BPL
Sync
Power
Status
Serial Tx Activity
ON
Transmitting data on RS232/485
BPL Sync
OFF
Blinking
ON (REP)
ON (HE)
Not configured, no signal available
Not configured, signal detected
Configured, synchronized
Configured, active
Power status
ON
Blinking, OFF
Power status OK
Power failure
