6. Locate jumper J201 near the serial port
7. Set the jumper according to the required configuration of the serial port
Top: RS232
Middle: RS485
Bottom: Off (as shown on picture)
8. Put the board back on its original position on the chassis. Mount the cover and attach it using the
original screws.

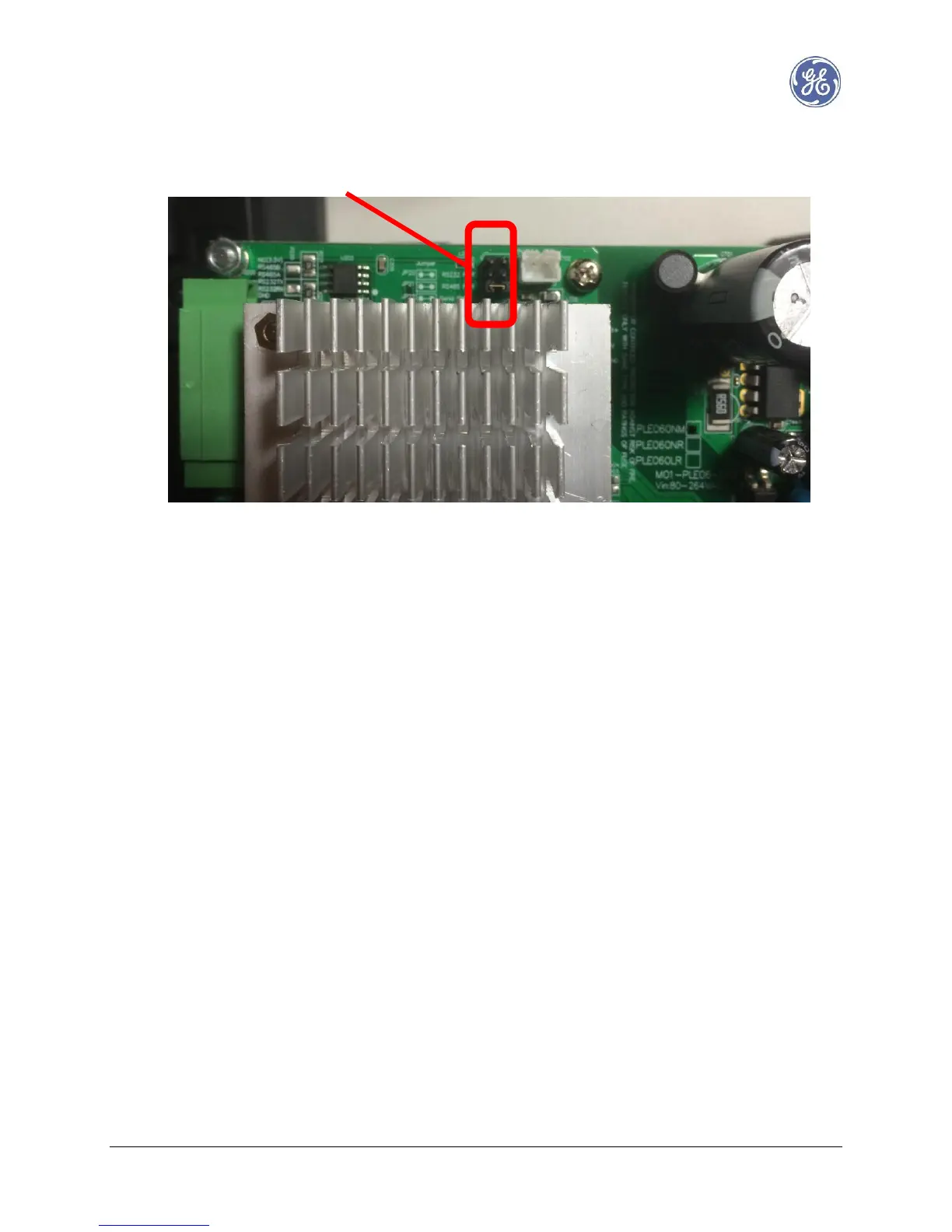

J201
