GE EGR2000 Owner's Manual & Installation Instructions

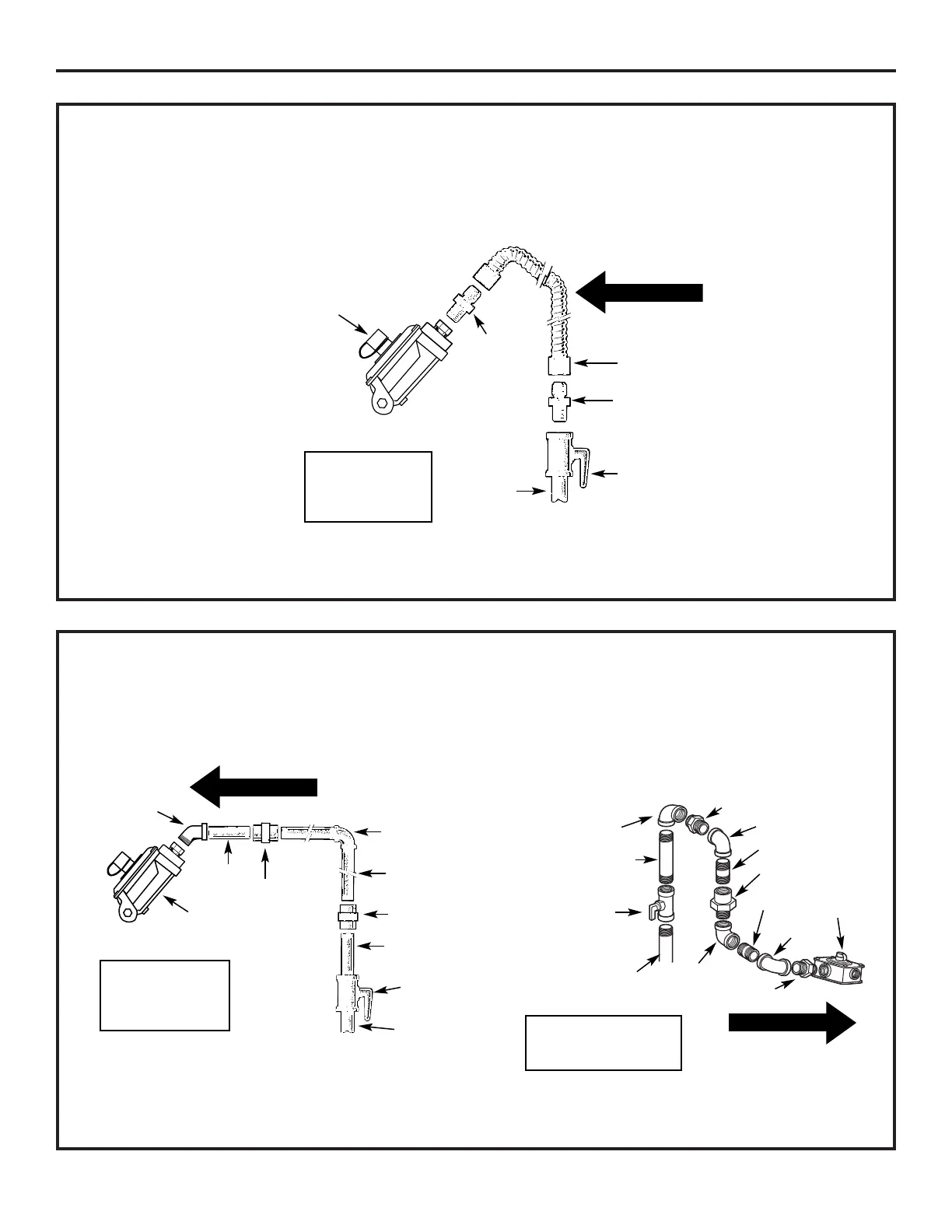

RIGID PIPE HOOKUP OPTIONS
(for models equipped with Sealed Burners)
FLEXIBLE CONNECTOR HOOKUP (for models equipped with Sealed Burners)
38
Installation Instructions
Pressure
regulator
Gas Flow into Range
Flex
connector
(6 ft. max.)
Adapter
Installer: Inform the
consumer of the
location of the gas
shut-off valve.
1/2″ or 3/4″
Gas pipe
Adapter
Gas
shut-off
valve
Pressure
regulator
45° Elbow
Nipple
Union
90° Elbow
Black
iron pipe
Union
Nipple
Gas
shut-off
valve
1/2″ or 3/4″
Gas pipe
Gas Flow into Range
Installer: Inform the
consumer of the
location of the gas
shut-off valve.
Gas Flow into Range
Gas
shut-off
valve
1/2″ or 3/4″
Gas pipe
Pressure
regulator
Nipple
90° Elbow
90° Elbow
Adapter
Adapter
90° Elbow
Quick connect
or union
Installer: Inform the
consumer of the location
of the gas shut-off valve.
Alternate Hookup
Nipple
Nipple
90°
Elbow
