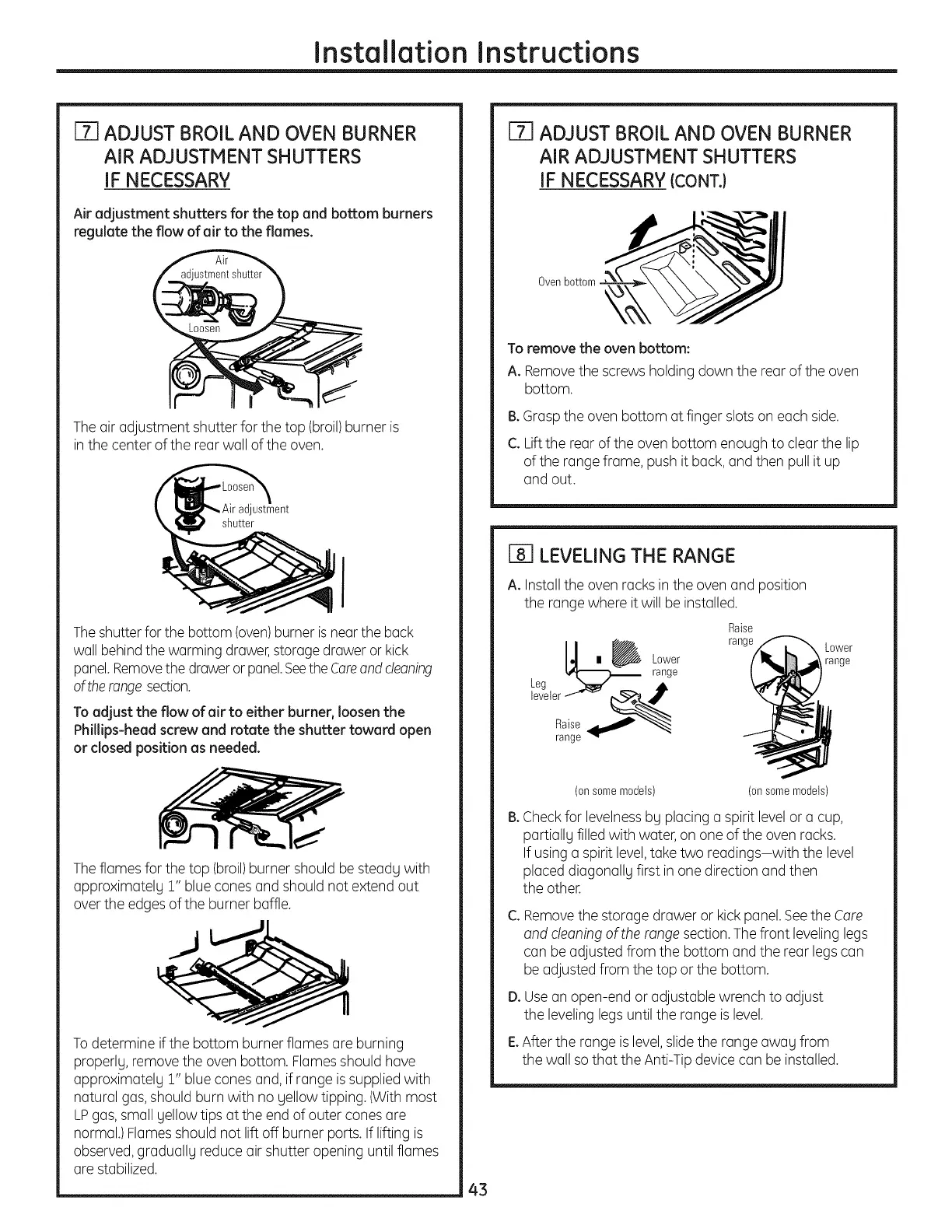

Installation Instructions
E_ ADJUST BROIL AND OVEN BURNER
AIR ADJUSTMENT SHUTTERS
IF NECESSARY
Air adjustment shutters for the top and bottom burners
regulate the flow of air to the flames.
Theair adjustment shutter for the top (broil)burner is
in the center of the rear wall of the oven.
ustment
shutter
I
Theshutter for the bottom (oven)burner isnear the back
wall behindthe warming drawer,storage drawer or kick
panel.Removethe draweror panel.SeetheCareandcleaning
oftherange section.
Toadjust the flow of air to either burner, loosen the
Phillips-head screw and rotate the shutter toward open
or closed position as needed.
Theflames for the top (broil)burner should be steadu with
approximately 1" blue cones and should not extend out
overthe edgesof the burner baffle.
Todetermine ifthe bottom burner flames are burning
properly, remove the oven bottom. Flamesshould have
approximatelu 1" blue cones and, if range is supplied with
natural gas,should burn with no yellow tipping. (With most
LPgas,small yellow tips at the end of outer conesare
normal.) Flamesshould not lift off burner ports. If lifting is
observed,gradually reduce air shutter opening until flames
are stabilized.
43
E_ ADJUST BROIL AND OVEN BURNER
AIR ADJUSTMENT SHUTTERS
IF NECESSARY {CONT.)
Ovenbottom
To remove the oven bottom:
A. Removethe screws holding down the rear of the oven
bottom.
B.
C.
Graspthe oven bottom at finger slots on each side.
Liftthe rear of the oven bottom enough to clear the lip
of the range frame, push it back, and then pull it up
and out.
J-8qLEVELING THE RANGE
A. Installthe oven racks in the oven and position
the range where it will be installed.
Raise
_ . _ Lower range
_'_ range
Leg _ A
leveler --"_'_
RaiseJ _'--_
range
Lower
range
B.
(onsomemodels) (onsomemodels)
Checkfor levelnessbu placing a spirit level or a cup,
partially filled with water, on one of the oven racks.
If using a spirit level,take two readings-with the level
placed diagonally first in one direction and then
the other.
C.
D.
Removethe storage drawer or kick panel. Seethe Care
and cleaningof the range section.The front leveling legs
can be adjusted from the bottom and the rear legscan
be adjusted from the top or the bottom.
Usean open-end or adjustable wrench to adjust
the levelinglegsuntil the range is level.
E.After the range is level,slidethe range away from
the wall sothat the Anti-Tipdevice can be installed.
