GE EGR3000 Owner's Manual & Installation Instructions

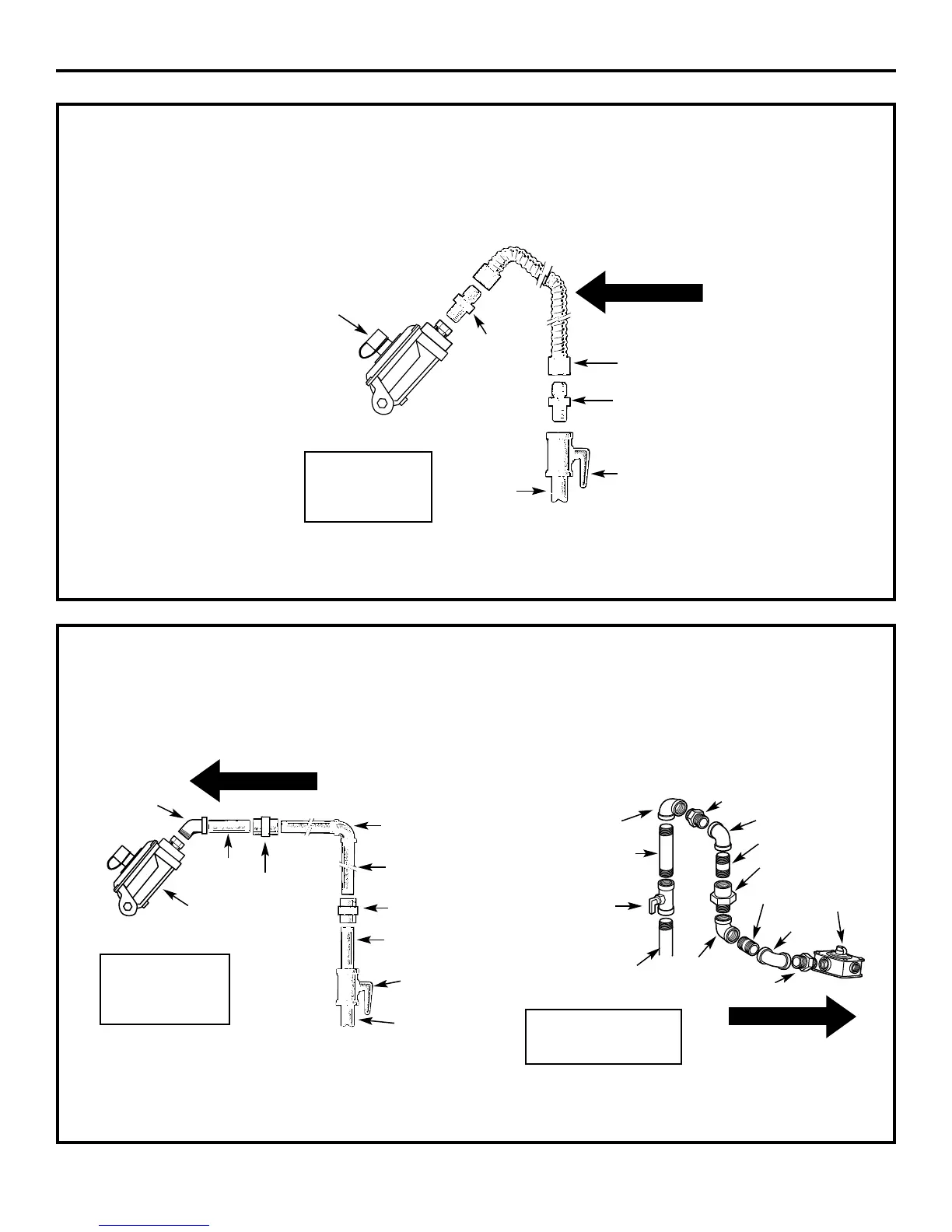

RIGID PIPE HOOKUP OPTIONS
FLEXIBLE CONNECTOR HOOKUP
39
Installation Instructions
Pressure
regulator
Gas Flow into Range
Flex
connector
(6 ft. max.)
Adapter
Installer: Inform the
consumer of the
location of the gas
shut-off valve.
1/2″ or 3/4″
Gas pipe
Adapter
Gas
shut-off
valve
Pressure
regulator
45° Elbow
Nipple
Union
90° Elbow
Black
iron pipe
Union
Nipple
Gas
shut-off
valve
1/2″ or 3/4″
Gas pipe
Gas Flow into Range
Installer: Inform the
consumer of the
location of the gas
shut-off valve.
Gas Flow into Range
Gas
shut-off
valve
1/2″ or 3/4″
Gas pipe
Pressure
regulator
Nipple
90° Elbow
90° Elbow
Adapter
Adapter
90° Elbow
Quick connect
or union
Installer: Inform the
consumer of the location
of the gas shut-off valve.
Alternate Hookup
Nipple
Nipple
90°
Elbow
