7
FIRE HAZARD: Never leave the range unattended with the cooktop on medium or high
settings. Keep flammable items away from the cooktop. Turn off all controls when
done cooking. Failure to follow these instructions can result in fire, serious injury or
death.

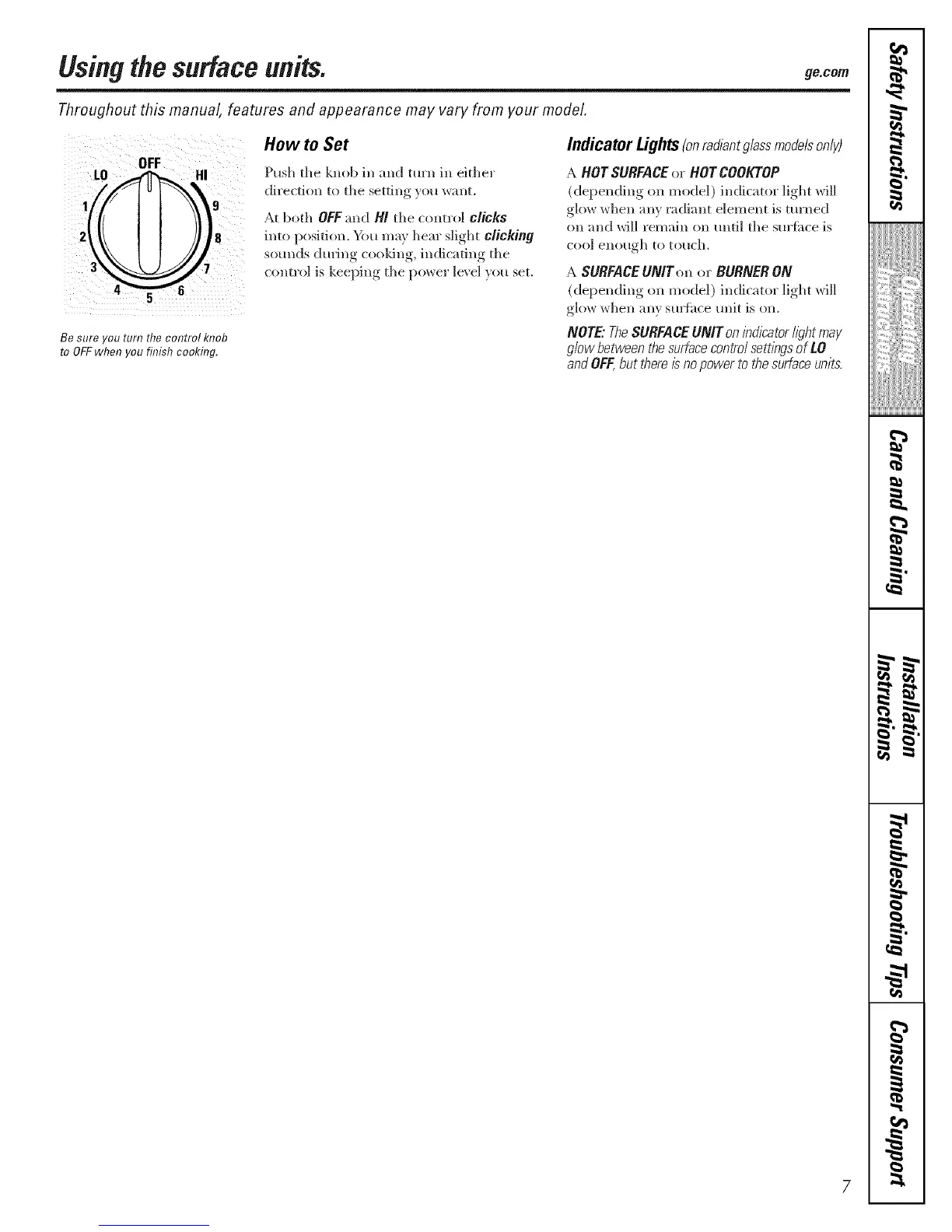

Throughout this manual, features and appearance may vary from your model.
How to Set
Push the knob in and turn in either direction to
the setting you want.
A surface ON indicator light will glow when any
surface unit is on
For glass cooktop surfaces:
A HOT COOKTOP indicator light will:
come on when the unit is hot to the touch.
stay on even after the unit is turned off.
stay on until the unit is cooled to
approximately 150°F.
At both OFF and HI the
control clicks into position.
You may hear slight clicking
sounds during cooking,
indicating the control is
maintaining your desired
setting.
Be sure you turn the control
knob to OFF when you finish
cooking.
WARNING
Using the surface units. (on some models)
