Components Locator Views

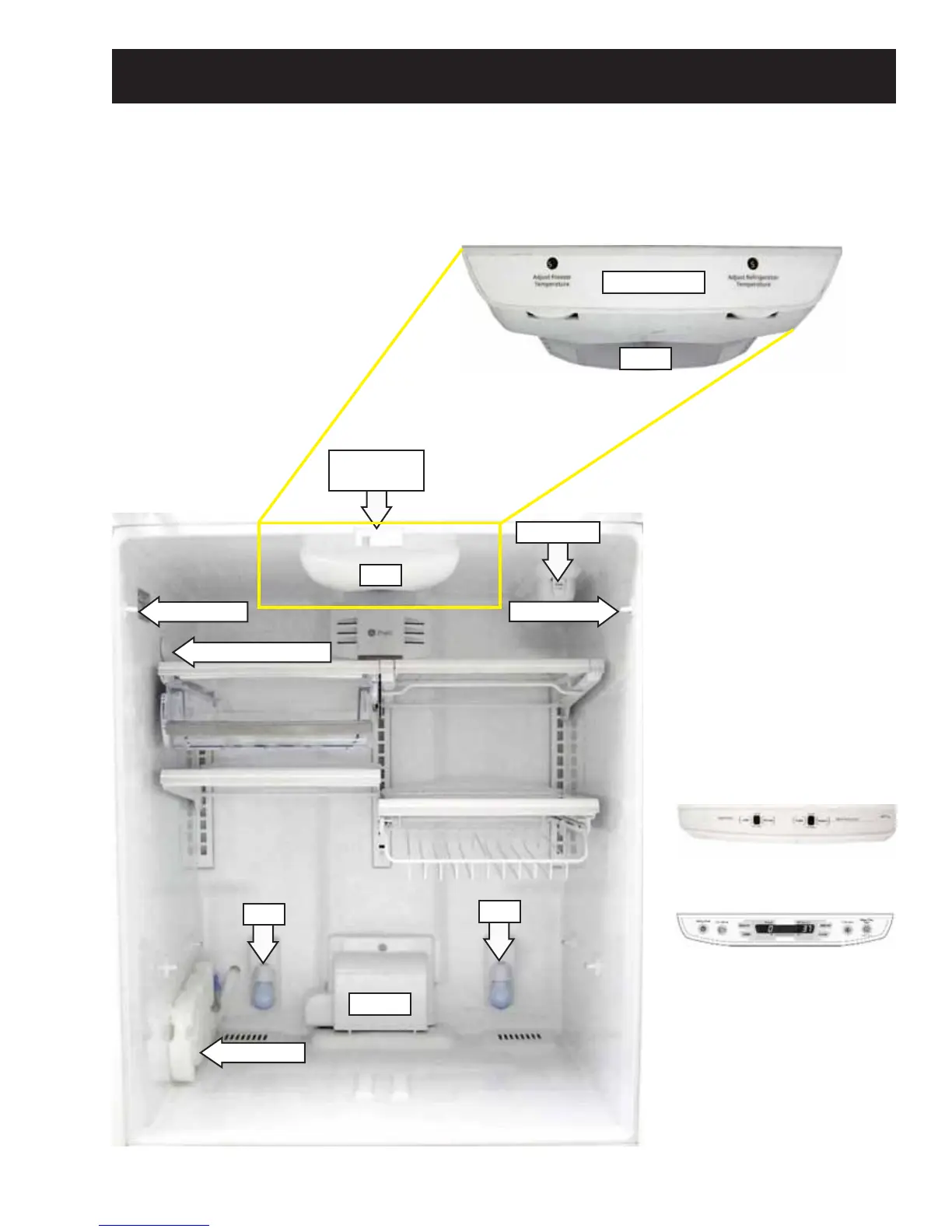

Fresh Food Compartment
Lights
Single Door Model (GBSC Models Shown)
Note: Single door models
eliminate the articulating
mullion track.
On non-dispenser models,
the control panel is located
in front of the light housing
at the top of fresh food
compartment. One of 2
different control panels
is used for the GE models
and a third type of control
panel is used for the non-
dispenser Profi le models.
French Door Model
Water Filter
Light Switch Light Switch
Thermistor Location
Damper
Water Tank
Light*
Light*
Light
Articulating
Mullion Track
Control Panel
(Continued next page)
* Profi le models only.
GE models other than GBSC
Profi le models other than
external dispenser
