– 43 –

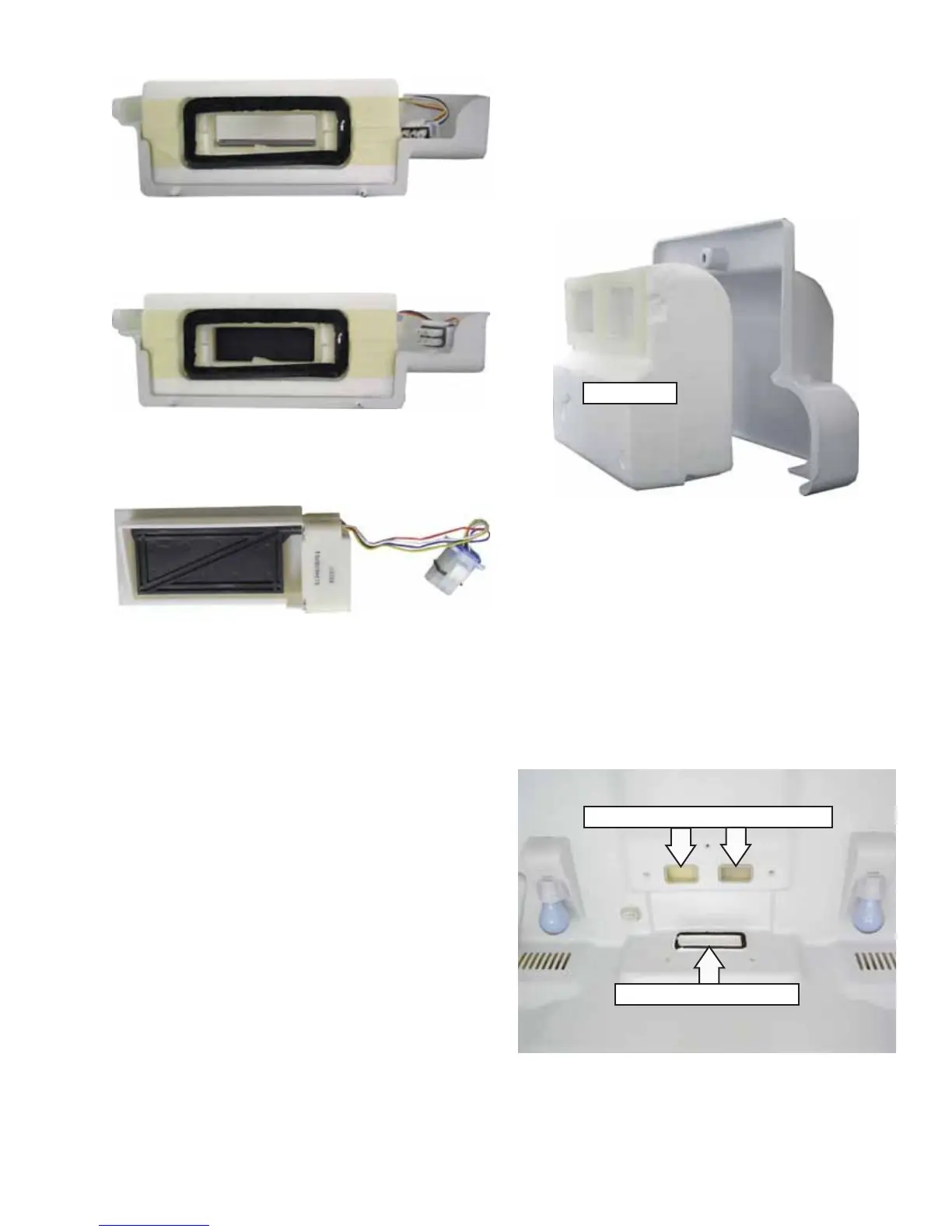

Motorized Damper Removed
Motorized Damper Open
Motorized Damper Closed
Note: To prevent moisture and ice from
accumulating in the fresh food compartment:
Place the damper duct inlet gasket between •
the damper assembly and the fl oor of the
refrigerator compartment.
Place the damper duct outlet gasket between •
the back of the damper assembly and the back
wall of the refrigerator compartment.
Damper Outlet to Refrigerator Air Vent
Damper Inlet From Freezer
Model GBSC0
A non-motorized damper duct assembly is used
to deliver airfl ow from the freezer into the control
housing. It is located on the back wall of the fresh
food compartment, behind the fruit and vegetable
crisper drawers.
Damper Duct
