3. Compress the tabs on the bar clip that holds the
damper shaft to the shaft retainer. Slide the bar
clip toward the outside of the housing.
4. Carefully lift and release the damper shaft from
the 2 shaft guides.

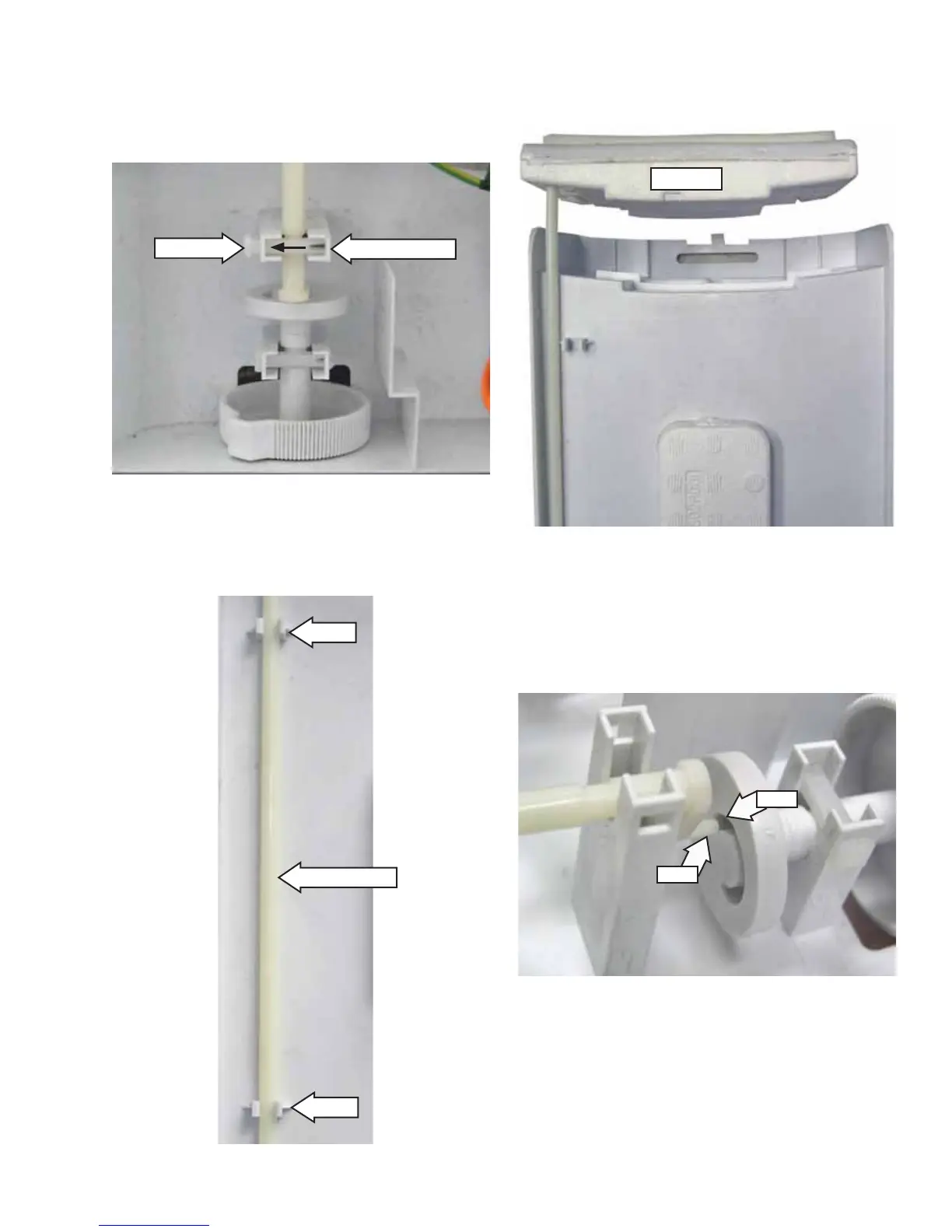

Bar Clip
Damper Shaft
Guide
Guide
Shaft Retainer
5. Pull back and remove the damper and damper
shaft from the housing.
Damper
Note: When installing the damper shaft to the shaft
retainer, make sure that the pin on the front of the
shaft engages the slot on the back of the freezer
temperature control knob.
Pin
Slot
