30
Sensors

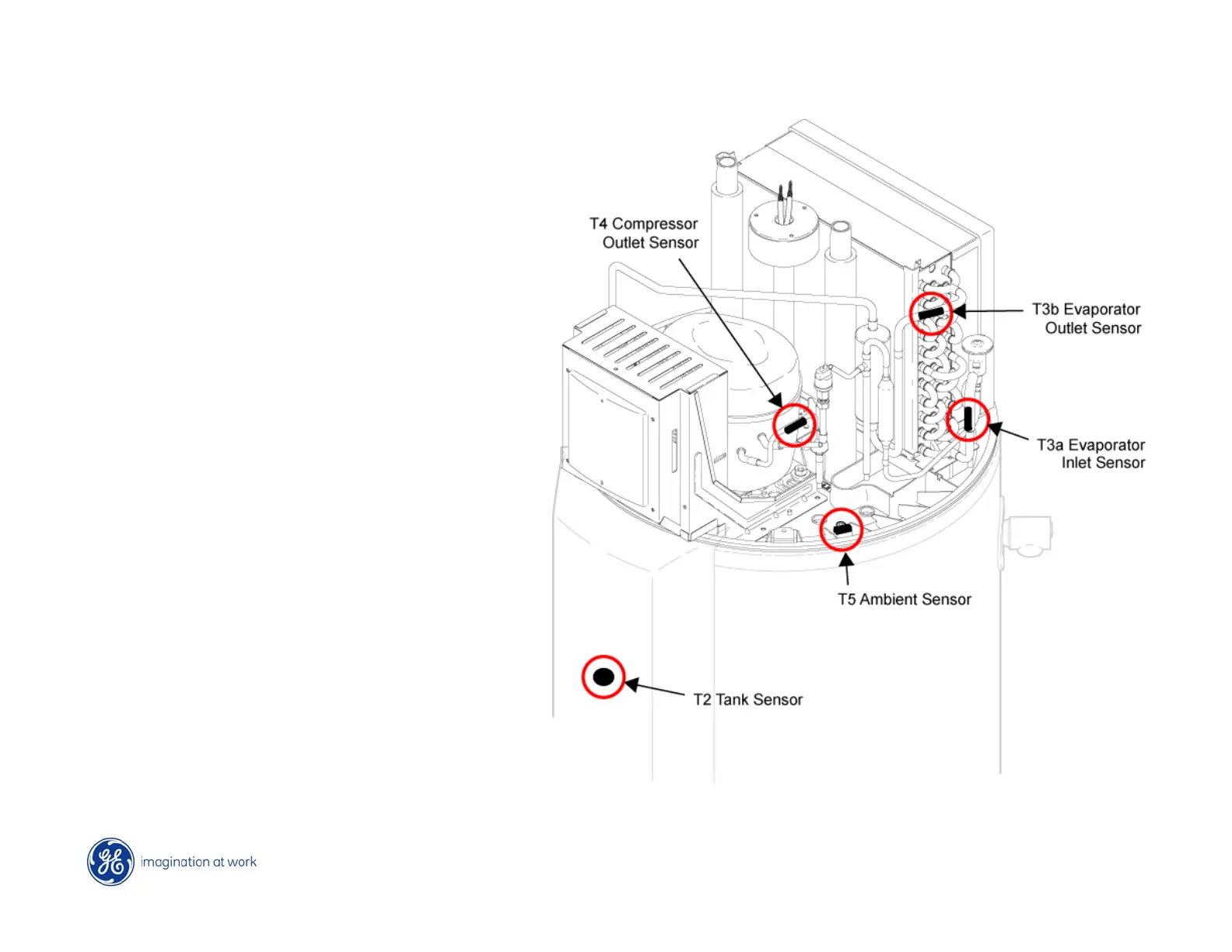

The water heater has five
sensors.
Four of the sensors provide
the control with sealed
system information.
The T2 sensor provides info
on the tank temperature.
All sensors have a negative
coefficient resistance.
As the temperature
increases, the resistance
value decreases.
29
31
Table of Contents
Personal Protection Equipment
4
Exploded View
8
Right Side View
10
Rear View
11
Left Side View
12
Model/Serial Location
13
Warranty
15
Installation Location
18
Junction Box
20
Drain Hole Locations
23
Control Display
25
Modes of Operation
26
Cover Installation
29
Sensor Chart
32
Initial Startup
43
Temperature Chart
47
Hybrid Mode
51
High Demand Mode
53
Control Boards
55
Current Sensor
61
Evaporator Fans
62
Front Cover
64
Drain Valve
65
Heating Elements
68
Discharge Pressure Switch
74
Recovering Refrigerant
77
Refrigerant Charging
78
Thermal Expansion Valve (TXV)
79
Tube Position
85
Anode Rod
87
Diagnostic Mode
92
Component Status
95
Access Code
97
Evaporator Fan
107
Fault Count
109
Clearing Faults
112
System Failure
121
