62
Evaporator Fans

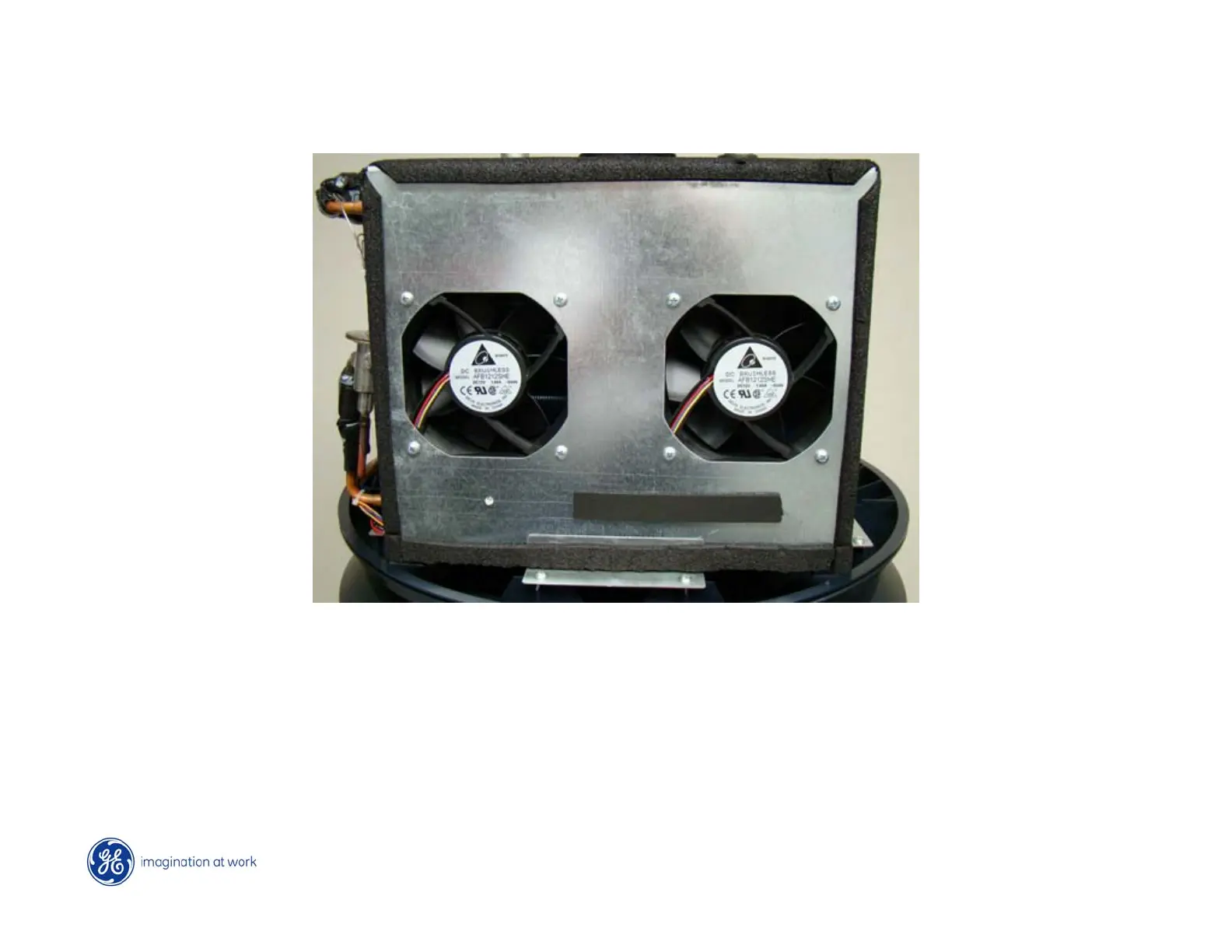

Two 12VDC evaporator fans operate simultaneously to draw
air through the evaporator and exhaust it out the rear cover.
The fans run at the same RPM. If either fan fails, a fault is
recorded and the unit switches to electric mode.
