80

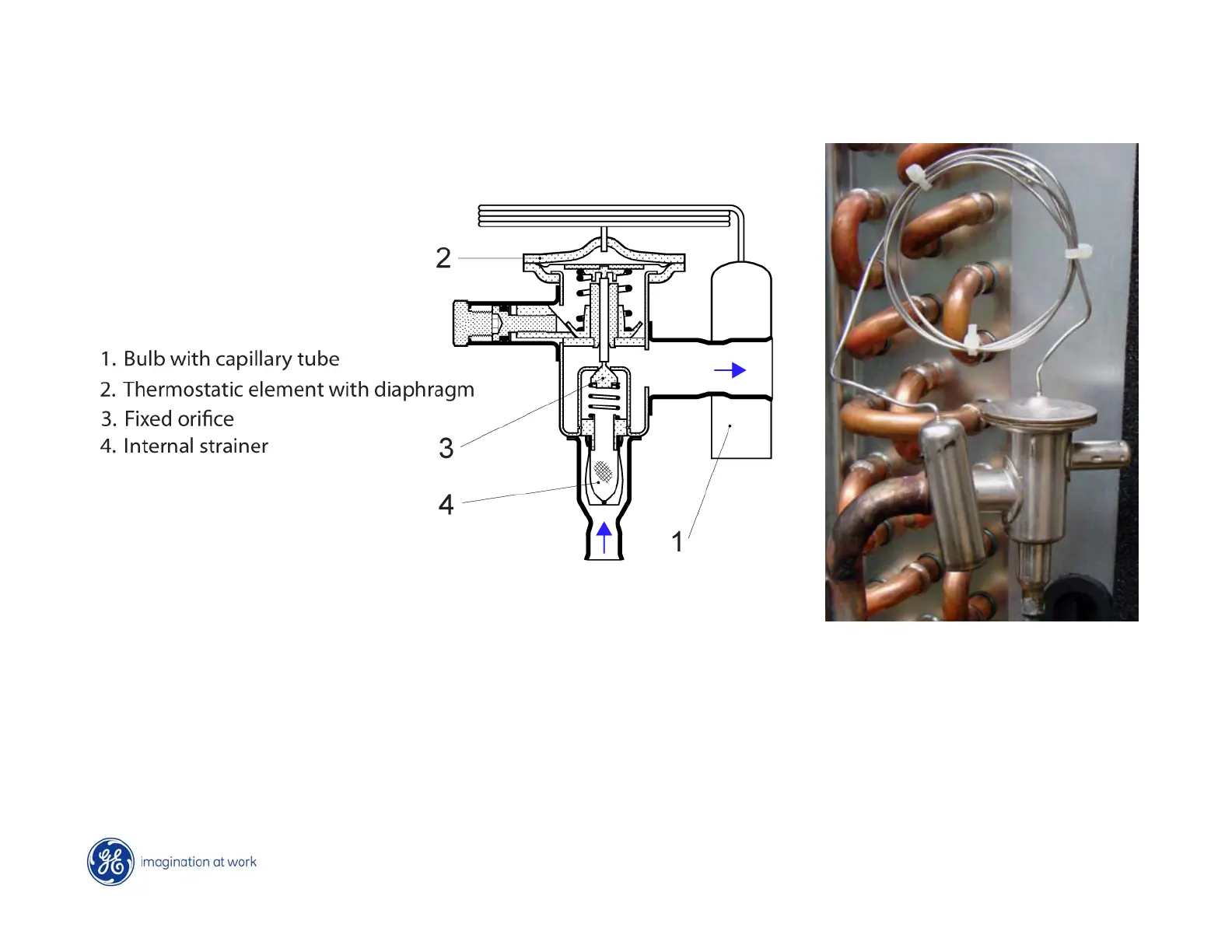

Valve Design
The TXV consists of a valve, spring and diaphragm attached
to a capillary bulb filled with a small amount of a blended
refrigerant (primarily R134a). The TXV is designed to
provide a fixed superheat of approximately 10°F.
